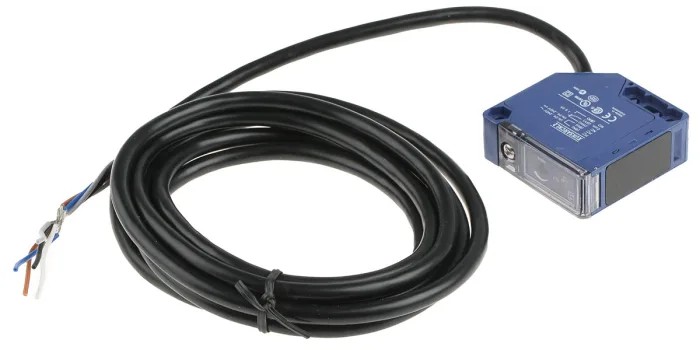

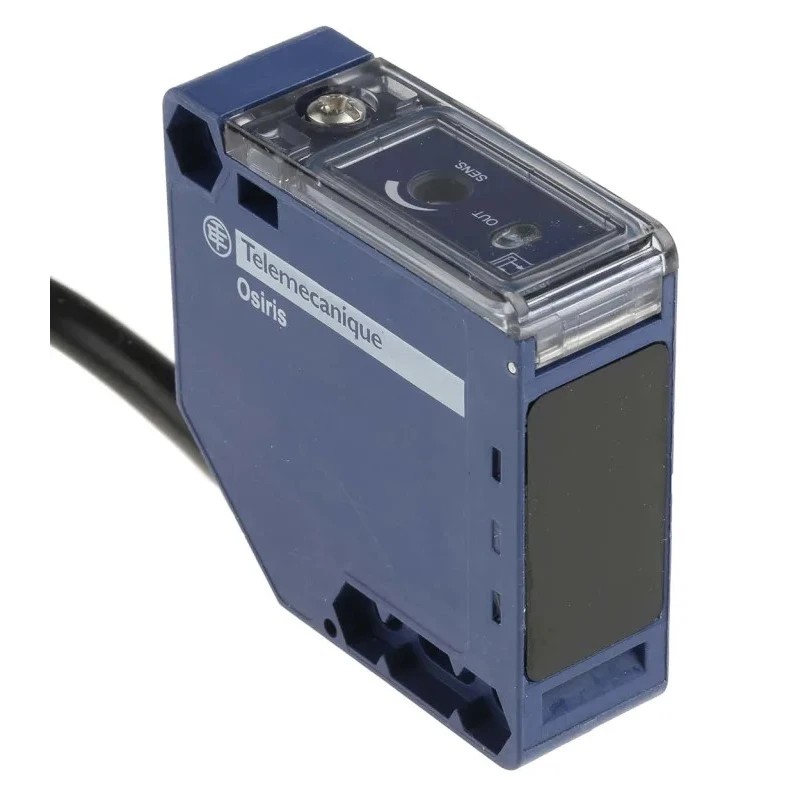

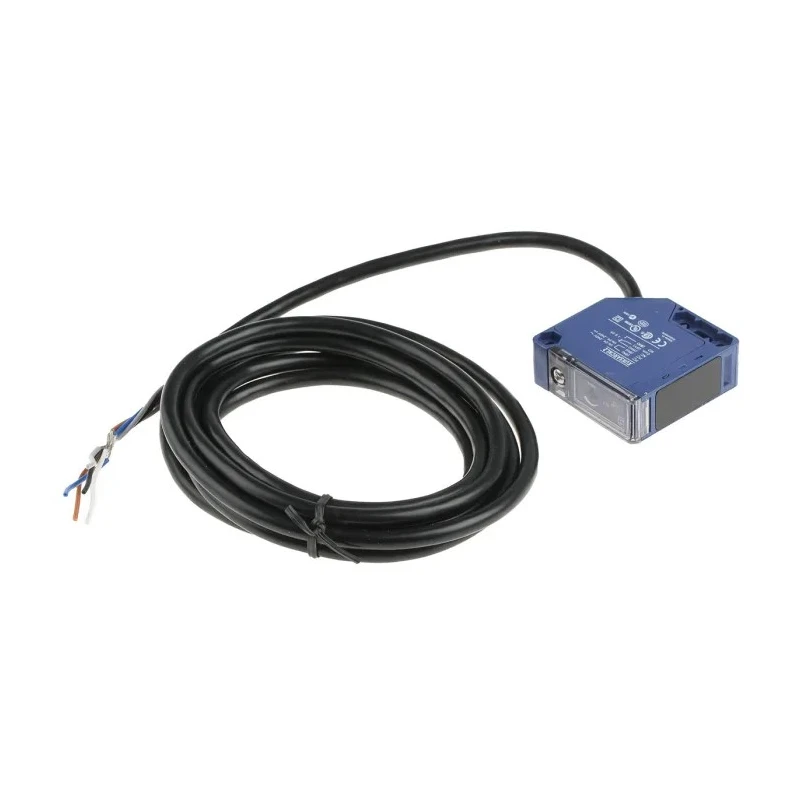

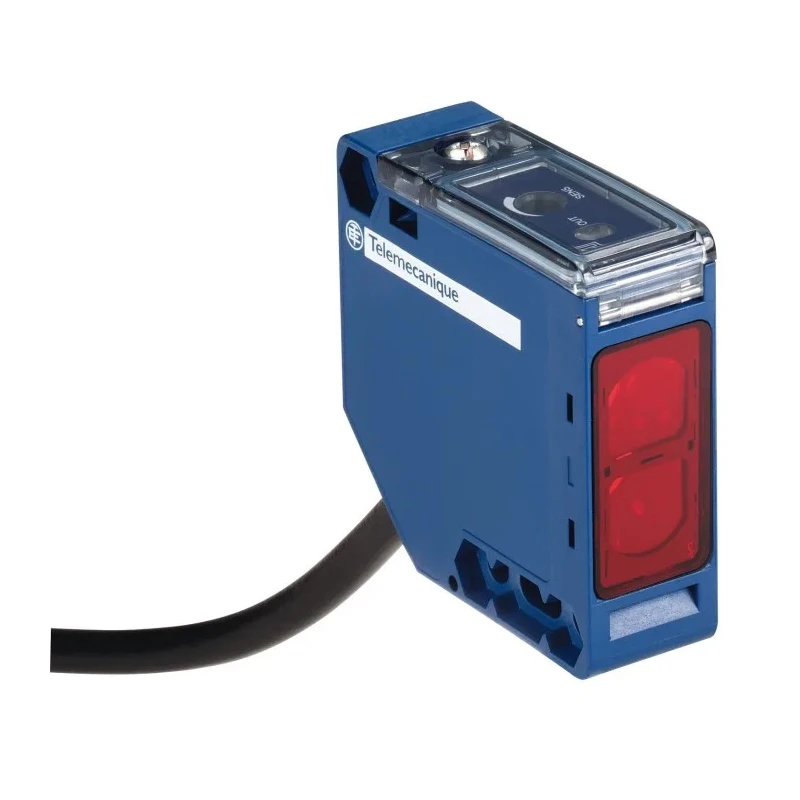

Telemecanique Sensors Compact Diffuse Photoelectric Sensor 1 m Detection Range Relay Output IP65 XUK5ARCNL2
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Telemecanique Sensors |
| Response time | 25ms |
| Light Source | Infrared |
| Detection range | 1 m |
| Model | XUK5ARCNL2 |
| IP Rating | IP65 |
| Housing Material | Polybutylene Terephthalate |
| Output type | Relay |
| Series | XUK |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -25°C |
| Maximum Current | 3A |
| DetectIon Type | Diffuse |
| Terminal type | Wire Cable |
| Maximum dc Voltage | 240V dc |
| Standards/Approvals | CE |
| Maximum AC Voltage | 240V ac |
| Sensor Style | Compact |
| Diffuse relay o/p XUK sensor w/2m cableBrand | Telemecanique |
| Panasonic Diffuse Photoelectric Sensor, Block Sensor, 1 m Detection RangeBrand | Panasonic |
Key Features
- Compact design measuring 50 x 50 x 18 mm saves installation space.
- Diffuse infrared detection with 1 m sensing range for accurate presence monitoring.
- Relay output type suitable for versatile control applications.
- Operating voltage up to 240V AC/DC enables compatibility with various power supplies.
- Durable polybutylene terephthalate housing ensures impact resistance and long service life.
- Wide operating temperature range from -25°C to +55°C supports harsh industrial environments.
- IP65 rating protects against dust ingress and low-pressure water jets.
- Yellow and green LEDs indicate supply and output status for easy monitoring.
Product Description
Telemecanique Sensors XUK5ARCNL2 is a compact diffuse photoelectric sensor designed for precise object presence and distance detection up to 1 meter. Equipped with an infrared light source and relay output, it integrates seamlessly into automation systems requiring reliable sensing in limited spaces.
Its polybutylene terephthalate housing offers robust impact resistance and an IP65 rating, making it suitable for demanding industrial, material handling, robotics, food production, and pharmaceutical applications. The operating temperature range of -25°C to +55°C ensures dependable performance even in challenging environments.

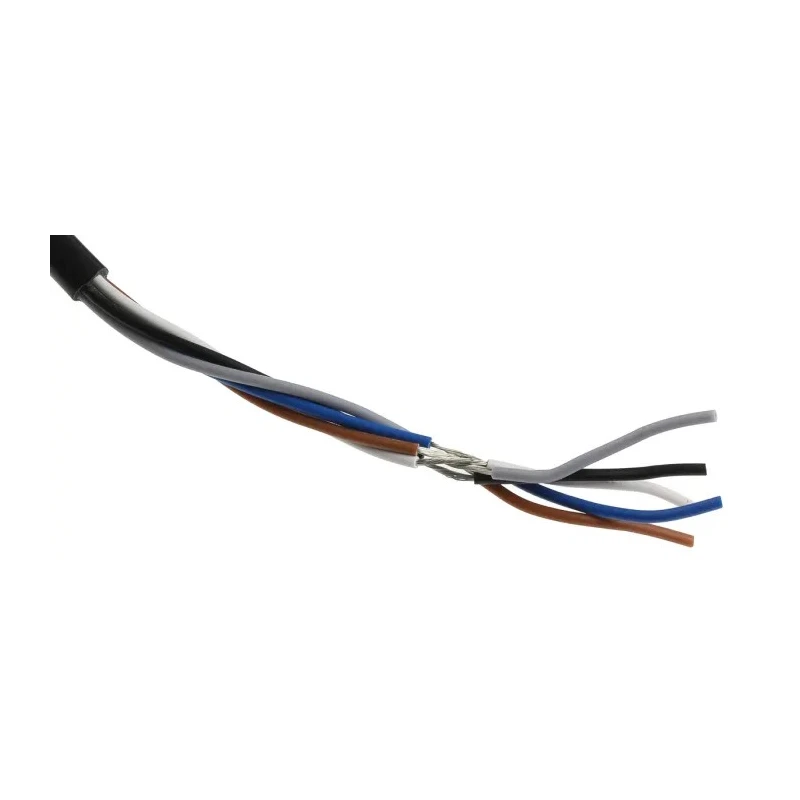

The sensor features yellow and green LEDs that signal supply and output status, simplifying fault diagnosis and operational monitoring. With a fast 25 ms response time and a five-wire connection via a 2-meter cable, installation and integration are straightforward.
This device supports up to 240 V AC and DC voltage supplies and can handle a maximum current of 3 A, making it suitable for a wide range of control systems and power configurations.
Typical applications include industrial automation, packaging, assembly lines, and any system requiring accurate detection of object presence or absence in compact spaces. The lightweight design minimizes any mechanical load on mounting systems, promoting system longevity.
Compact design measuring 50 x 50 x 18 mm saves installation space. Diffuse infrared detection with 1 m sensing range for accurate presence monitoring. Relay output type suitable for versatile control applications. Operating voltage up to 240 V AC/DC enables compatibility with various power supplies.
Durable polybutylene terephthalate housing ensures impact resistance and long service life. Wide operating temperature range from -25°C to +55°C supports harsh industrial environments. IP65 rating protects against dust ingress and low-pressure water jets.
Yellow and green LEDs indicate supply and output status for easy monitoring. Fast response time of 25 ms suitable for high-speed automation tasks. Lightweight at approximately 35 grams, minimizing load on automation equipment.
Explore the Telemecanique Sensors range at EnvMart for dependable Photoelectric Sensors that meet your industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor has a detection range of up to 1 meter for accurate presence monitoring.
This model features a fast response time of 25 milliseconds, suitable for high-speed automation tasks.
The maximum operating temperature for this sensor is 55°C, making it suitable for challenging environments.
It provides a relay output type, which is suitable for versatile control applications.
The housing is made from polybutylene terephthalate, which offers impact resistance and durability.
The sensor has an IP65 rating, protecting it against dust ingress and low-pressure water jets.
It can operate with voltages up to 240V AC or DC, allowing compatibility with various power supplies.
This unit weighs approximately 35 grams, which minimizes the mechanical load on mounting systems.
It utilizes an infrared light source for diffuse detection of objects.
The minimum operating temperature is -25°C, while the maximum is 55°C, supporting a wide range of industrial applications.
It features a wire cable terminal type for straightforward installation and integration.
Yes, it complies with CE standards, ensuring it meets certain safety and performance requirements.
