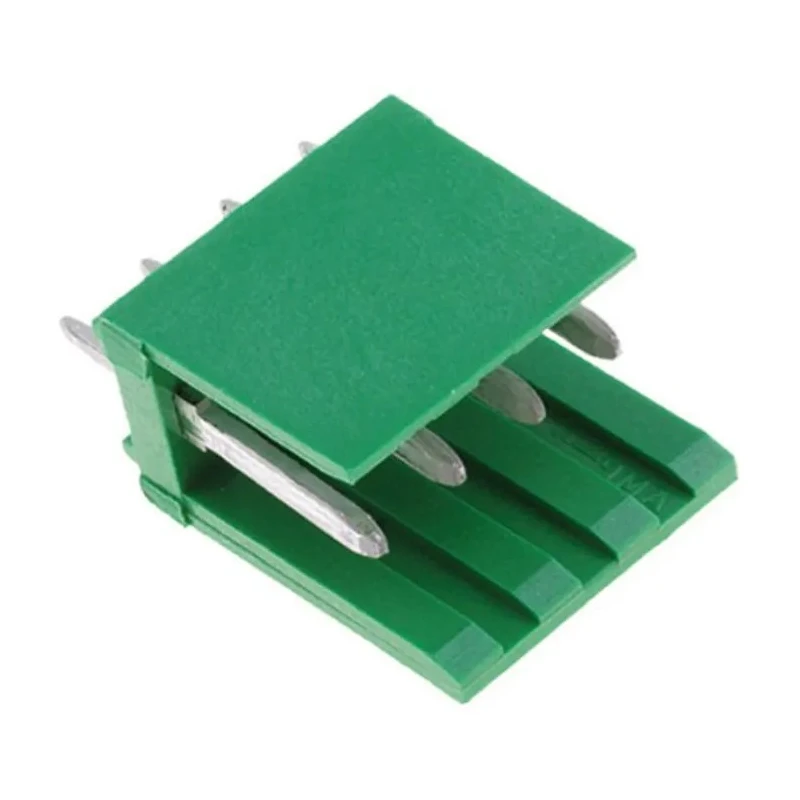

TE Connectivity AMPMODU MOD I Series Straight Through Hole PCB Header 4 Contacts 3.96 mm Pitch 1 Row Shrouded 280610-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 280610-1 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polycarbonate |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD I |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.3mm |
Key Features
- The housing is made of glass filled polycarbonate providing rugged flame retardant UL 94V-1 rated construction.
- It supports a maximum current rating of 3 A and voltage of 750 V suitable for power and industrial control applications.
- Contact material is phosphor bronze with tin plating to ensure reliable solder termination and corrosion resistance.
- Shrouding on two sides protects pins and the design includes polarization to prevent mismating.
- Operating temperature ranges from -65°C minimum to 105°C maximum for harsh environmental durability.
- Suitable for board-to-board and wire-to-board interconnect systems with through-hole mounting.
- Features male contact gender with tail pin length of 3.3 mm for secure solder connections.
- This robust connector system is ideal for industrial control, switchgear, and power supply uses.
Product Description
TE Connectivity 280610-1 AMPMODU MOD I Series Straight Through Hole PCB Header with 4 contacts and 3.96 mm pitch is designed for reliable board and wire interconnects. Its shrouded design offers pin protection and polarization to prevent mismating, ensuring secure connections in demanding industrial environments.
The housing is constructed from glass filled polycarbonate, a UL 94V-1 flame retardant thermoplastic material that ensures durability and safety. This PCB header supports a current rating of 3 A and a voltage rating up to 750 V, making it suitable for power supplies and industrial control switchgear assemblies.
The contact material consists of phosphor bronze with tin plating, providing excellent conductivity and solder termination. With a minimum operating temperature of -65°C and a maximum of 105°C, this connector withstands a wide range of environmental conditions.
Designed for through hole mounting, this single row, shrouded male header with a tail pin length of 3.3 mm complements wire-to-board and board-to-board applications efficiently, enhancing electrical reliability and mechanical stability.
Applications include industrial power controls, switchgear systems, and various electronic assemblies requiring robust and polarized interconnect solutions. The AMPMODU MOD I Series 3.96mm connectors from TE Connectivity deliver exceptional performance and endurance in commercial and industrial electrical connector systems.
The housing is glass filled polycarbonate with flame retardant UL 94V-1 rating. 4 contact pins at 3.96 mm pitch provide secure connectivity. Current rating of 3 A and voltage rating up to 750 V. Shrouded design with polarization prevents pin damage and mismating.
Operating temperature range from -65°C to 105°C. Phosphor bronze contacts plated with tin for reliability and corrosion resistance. Male contact gender with a 3.3 mm tail pin length for through-hole soldering. Suitable for industrial control, power supply, and switchgear applications.
Explore more PCB Headers and connectors from TE Connectivity at EnvMart for your next industrial electronics project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current rating of 3 A and a voltage rating of 750 V, making it suitable for power and industrial control applications.
The housing is made of glass filled polycarbonate, and the contact material is phosphor bronze with tin plating for reliable solder termination and corrosion resistance.
This PCB header is designed for through-hole mounting, ensuring secure connections on the printed circuit board.
The pitch of the contacts on this model is 3.96 mm, which is standard for many PCB applications.
This model features 4 contacts, providing multiple connection points for electrical interconnects.
It utilizes solder termination, which is suitable for secure and reliable connections on PCB applications.
Yes, it has a shrouded design that protects the pins and includes polarization to prevent mismating during installation.
The tail pin length for this connector is 3.3 mm, facilitating secure solder connections on the PCB.
It is suitable for board-to-board and wire-to-board interconnect systems, particularly in industrial control, switchgear, and power supply applications.
The country of origin for this PCB header is India.
