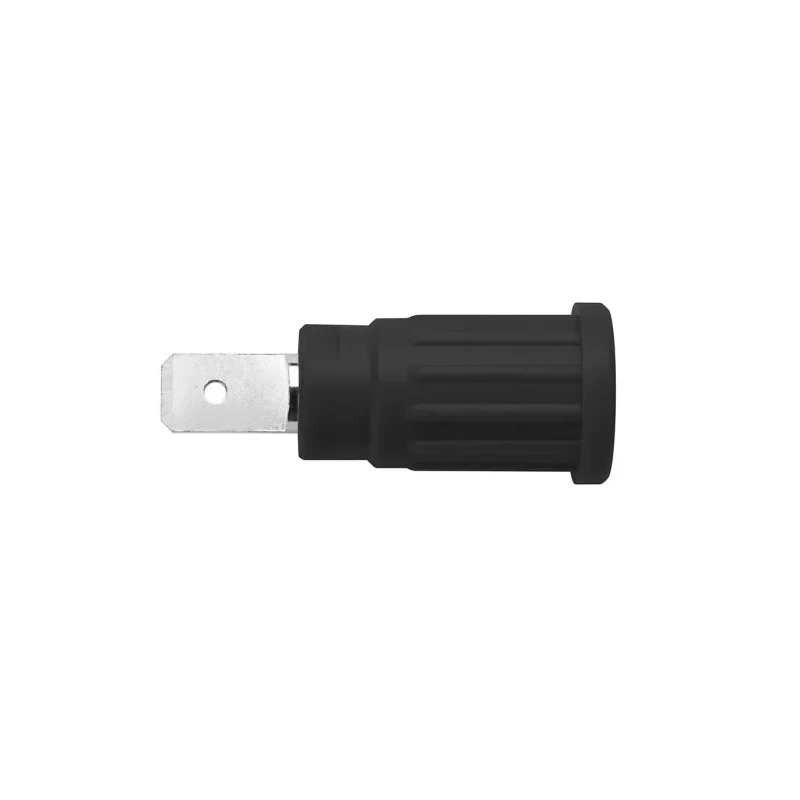

Schutzinger Black Female Banana Socket 4 mm Connector PC Pin Termination 1000V 32A Nickel Plating SEPB 6453 Ni / SW

Free Delivery in India | Lowest Global Shipping Charges

Schutzinger Black Female Banana Socket 4 mm Connector PC Pin Termination 1000V 32A Nickel Plating SEPB 6453 Ni / SW

Name: Schutzinger Black Female Banana Socket 4 mm Connector PC Pin Termination 1000V 32A Nickel Plating SEPB 6453 Ni / SW
Brand: Schutzinger
SKU: 98840
Price: 2.64 USD
Availability: InStock



Category Connectors Brand Schutzinger Condition New

Specifications

Country of Origin	Germany
Voltage	1000V
Brand	Schutzinger
Colour	Black
Current	32A
Length	34.8mm
Model	SEPB 6453 Ni / SW
Connector Type	Banana Socket
Gender	Female
Panel Thickness	Metal Panels: ≥ 1 Mm Plastic Panels: ≥ 2 Mm
Contact Material	Brass
Insulation Material	Nylon
Standards/Approvals	UL
Contact Plating	Nickel
Connector Size	4 mm
Termination Method	PC Pin

Key Features

Rated for up to 1000 V voltage and 32 A current capacity.
Features nickel-plated contact surfaces for enhanced corrosion resistance.
Constructed with brass contact material and nylon insulation for durability.
Panel mounting supports metal thickness ≥ 1 mm and plastic thickness ≥ 2 mm.
Safety press-in socket design suitable for panels up to 6 mm thick.
Compliant with UL standards ensuring high quality and reliability.
Flat tab connection can be bent up to 90° once for installation flexibility.

Product Description

Schutzinger SEPB 6453 Ni / SW Black Female Banana Socket is engineered for high-performance electrical applications requiring robust and safe connector solutions. It utilizes a 4 mm banana connector size with PC pin termination, suitable for printed circuit board and cable lug connections. Rated at 1000 V and 32 A, this banana socket can handle demanding electrical loads reliably.

The contact parts are made of brass with a nickel plating finish, which ensures excellent conductivity and resistance to corrosion. The insulation material is high-quality nylon, providing robust electrical isolation and mechanical stability.

This product is designed with safety in mind, offering shock-proof safety sockets usable up to 1000 V. The safety press-in socket allows mounting into panels up to 6 mm thick, supporting metal panels of at least 1 mm thickness and plastic panels of at least 2 mm thickness. The location hole is precisely manufactured to 12.2 ± 0.1 mm diameter with one-sided countersink for secure panel fitting.

The flat tab connector can be bent once up to a 90° angle, allowing for installation flexibility without damaging the component. The entire assembly is UL approved, assuring compliance with stringent industrial safety requirements.

This banana socket is ideal for use in industrial electronics, test and measurement equipment, electrical cabinets, and laboratory setups where durable and secure electrical connections are essential.

Rated for up to 1000 V voltage and 32 A current capacity. Nickel-plated brass contacts ensure corrosion resistance and conductivity. Durable nylon insulation supports electrical safety and mechanical strength. Designed for panel mounting with thickness up to 6 mm.

Compliant with UL standards for safety and quality assurance. Connector length is 34.8 mm, suitable for standard circuit board integration. Supports bending of flat tab connection up to 90° for installation adaptability.
