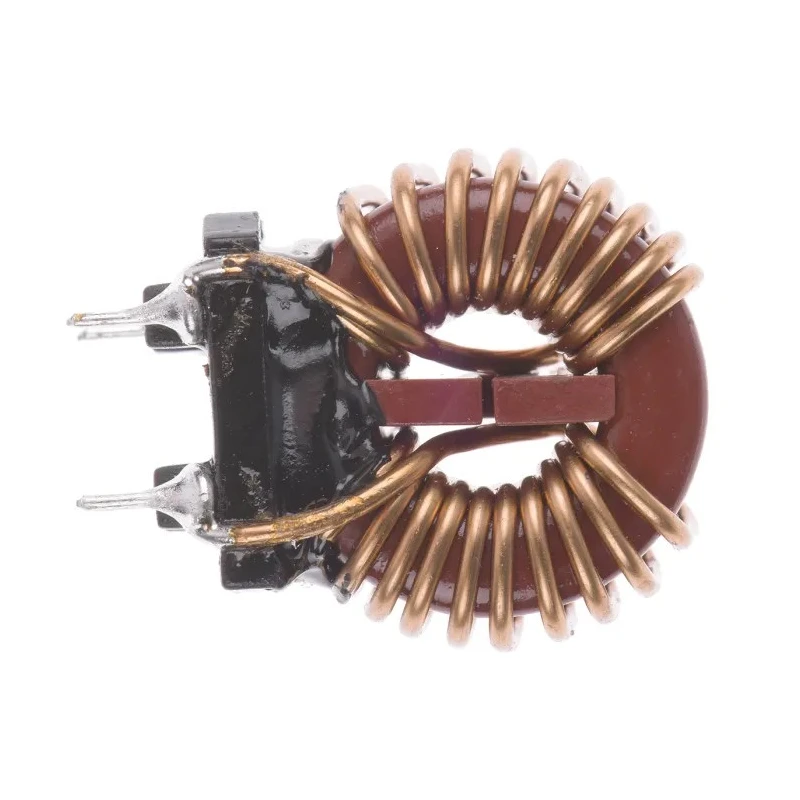

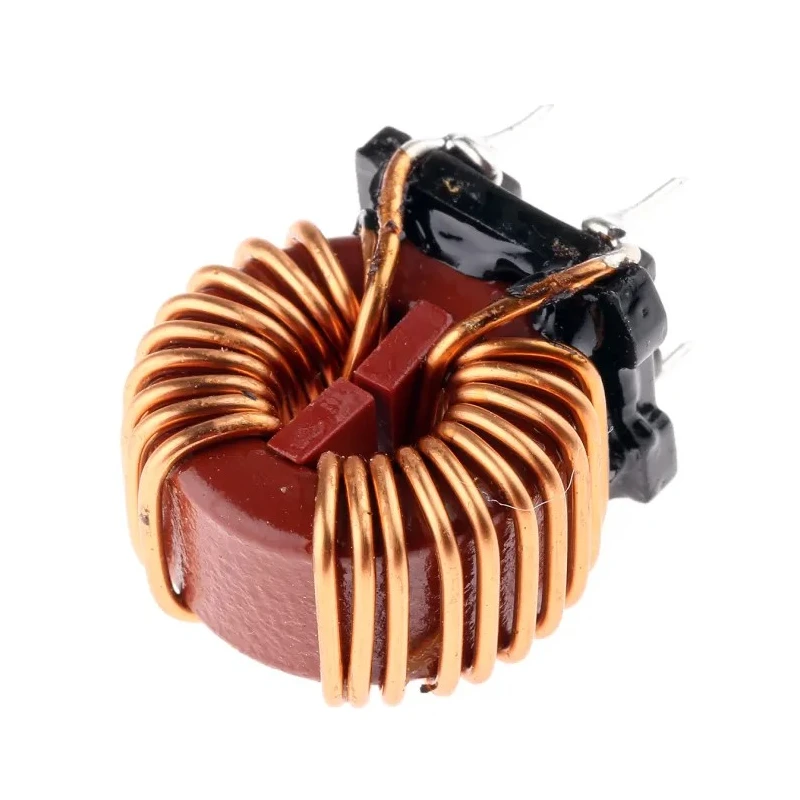

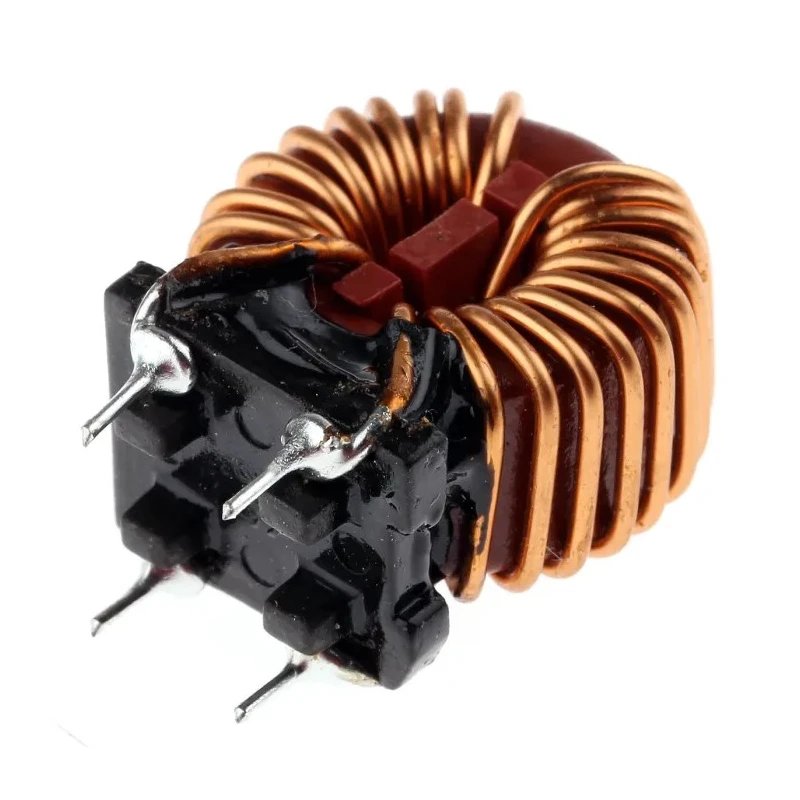

Wurth Elektronik 1 mH Manganese Zinc Ferrite Leaded Inductor Radial Mount 6A Max DC Current 13mΩ Max DC Resistance 744823601

Wurth Elektronik 744823601 is a 1 mH manganese zinc ferrite leaded inductor designed for high performance in electronic circuits. Featuring a radial mount style, this leaded inductor supports a maximum DC current rating of 6 A and exhibits a maximum DC resistance of 13 mΩ, making it suitable for efficient power handling with minimal losses.

The core material of manganese zinc ferrite provides excellent magnetic properties, enhancing inductance stability and performance under various operating conditions. The component is rated for operation at temperatures ranging from -40°C to 125°C, ensuring reliable functioning in both industrial and commercial electronic environments.

The inductor’s compact physical dimensions include a diameter of 25 mm, height of 26.5 mm, depth of 17 mm, length of 25 mm, and a lead pitch measuring 10.7 mm. These specifications enable integration into compact electronic assemblies while maintaining robust electrical characteristics.

Capable of operating up to a maximum self-resonant frequency of 2 MHz, this component is optimized for EMI noise suppression and radio interference reduction in power line input and output filters, as well as power electronics circuits lacking a ground connection. Its construction complies with EN 55022 standards, guaranteeing electromagnetic compatibility for demanding applications.

Applications for the Wurth Elektronik 744823601 include common mode noise suppression in motor drives, power electronics, and filtering solutions in electronic devices requiring high signal integrity and noise control.

Compact radial mount leaded inductor for PCB applications. Manganese zinc ferrite core optimized for high magnetic performance. Wide operating temperature range ensures durability in harsh conditions. Low DC resistance minimizes power loss during operation.

High current capacity supports demanding electrical loads. Meets international electrical standards for EMI and safety. Precision inductance tolerance guarantees consistent circuit results. Robust construction suitable for industrial and commercial use.

Ideal for suppression of common mode noise and radio interference. Explore more leaded Inductors and related components from Wurth Elektronik at EnvMart to enhance your electronic design and manufacturing projects.
