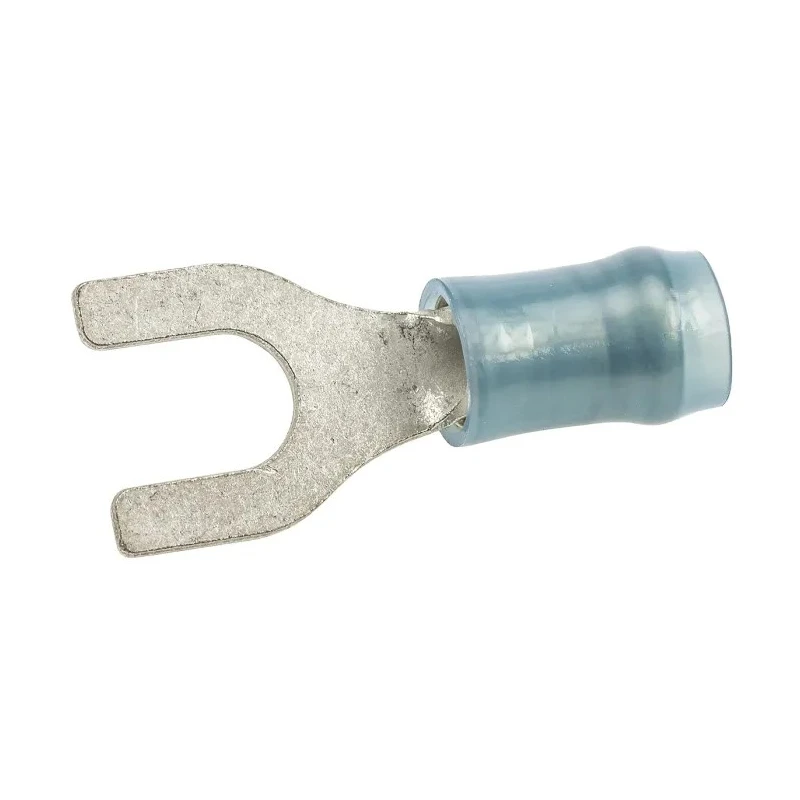

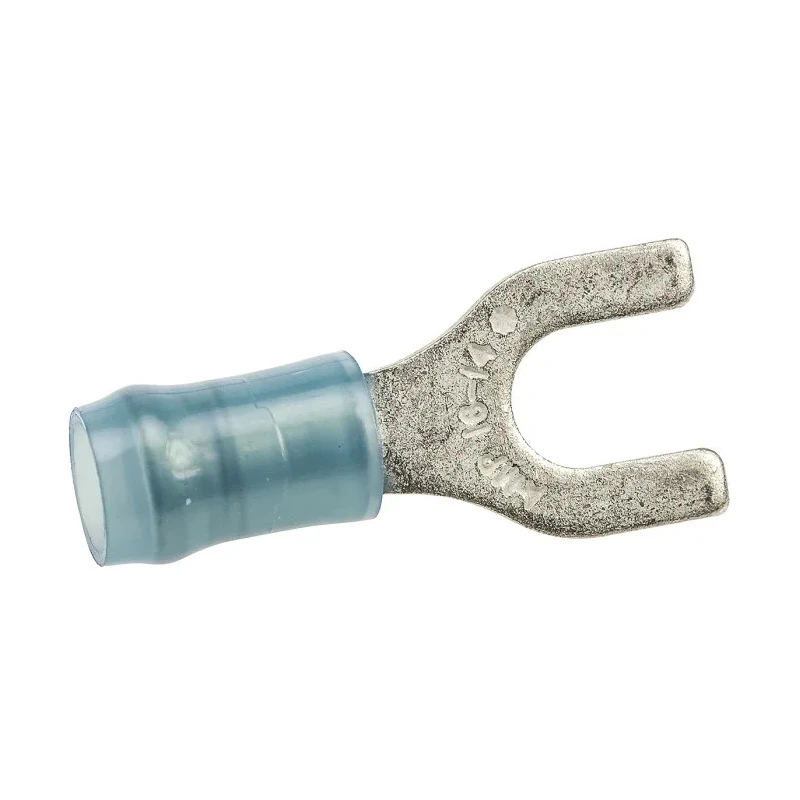

TE Connectivity PIDG Insulated Crimp Spade Connector, Blue Nylon, 16 AWG to 14 AWG, M5 Stud Size, 23.06mm Length 32060
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Blue |
| THICKNESS | 0.79mm |
| Model | 32060 |
| Width | 9.53mm |
| Insulation | Insulated |
| Overall Length | 23.06mm |
| Contact Material | Copper |
| Series | PIDG |
| Insulation Material | Nylon |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1.25mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | M5 |
Key Features
- Constructed with a high conductivity copper body for reliable connectivity.
- Features a copper sleeve providing improved wire insulation support.
- Includes serrations in the wire barrel to maximize contact and tensile strength.
- Color-coded blue nylon insulation for easy wire size identification.
- Funnelled wire entry design enables fast and secure wire insertion during crimping.
- Overall length of 23.06 mm ensures compact fit in electrical assemblies.
- Suitable for use in instruments, control panels, lighting, motors, aerospace, and automotive applications.
- Features tin-plated copper contacts for corrosion resistance.
Product Description
TE Connectivity 32060 PIDG Insulated Crimp Spade Connector is engineered for industrial and electronic wiring applications requiring reliable connections. This insulated spade connector accommodates wire sizes from 16 AWG to 14 AWG and features an M5 stud size, making it suitable for a wide range of circuit and panel board assemblies.
The connector's high conductivity copper body and barrel ensure superior electrical performance. A copper sleeve surrounds the wire barrel to enhance insulation support after crimping, preventing insulation damage and conductor breakage during bending. Additionally, the nylon insulation sleeve is color-coded blue for clear wire size identification.
Serrations inside the wire barrel provide maximum contact area and tensile strength post-crimping, ensuring a secure and uniform connection. The funnelled wire entry design facilitates quick and easy wire insertion, vital for high-speed manufacturing environments.
These PIDG spade terminals comply with demanding standards, including MIL-T-7928, Type II, Class 1 and 2, and are suitable for diverse applications such as instrumentation, power supplies, lighting, panel boxes, transportation, lifting equipment, motors, aerospace, and household appliances.
High conductivity copper body for superior electrical performance. Copper sleeve enhances wire insulation support and durability. Serrated wire barrel improves contact and tensile strength. Color-coded blue nylon insulation for wire gauge identification.
Funnelled wire entry for fast and reliable wire insertion. Pre-insulated with durable nylon for environmental protection. Overall length of 23.06 mm suitable for compact installations. Tin-plated contacts resist corrosion and promote longevity.
Complies with MIL-T-7928, ensuring quality and reliability.
The set offers a versatile and reliable solution for industrial, laboratory, manufacturing, automotive, aerospace, and HVAC electrical connections. EnvMart provides these connectors as part of its comprehensive catalog for professional electrical components.
Explore more products in our Crimp Terminal category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This insulated crimp spade connector accommodates wire sizes from 16 AWG to 14 AWG.
The connector features an M5 stud size, making it suitable for various circuit and panel board assemblies.
It is constructed with a high conductivity copper body and features a tin-plated copper contact for corrosion resistance, surrounded by a blue nylon insulation.
The overall length of this model is 23.06 mm, allowing for a compact fit in electrical assemblies.
The funnelled wire entry design facilitates quick and easy wire insertion, which is essential for high-speed manufacturing environments.
This model is suitable for use in instruments, control panels, lighting, motors, aerospace, and automotive applications.
It features insulated nylon material, which provides environmental protection and is color-coded blue for easy wire size identification.
The connector has a width of 9.53 mm and a thickness of 0.79 mm, in addition to its overall length of 23.06 mm.
The serrations inside the wire barrel maximize contact area and tensile strength after crimping, ensuring a secure connection.
Yes, it complies with MIL-T-7928, ensuring quality and reliability for demanding applications.
The contact material is copper, which is designed to provide superior electrical performance.
The copper sleeve enhances wire insulation support after crimping, preventing insulation damage and conductor breakage during bending.
