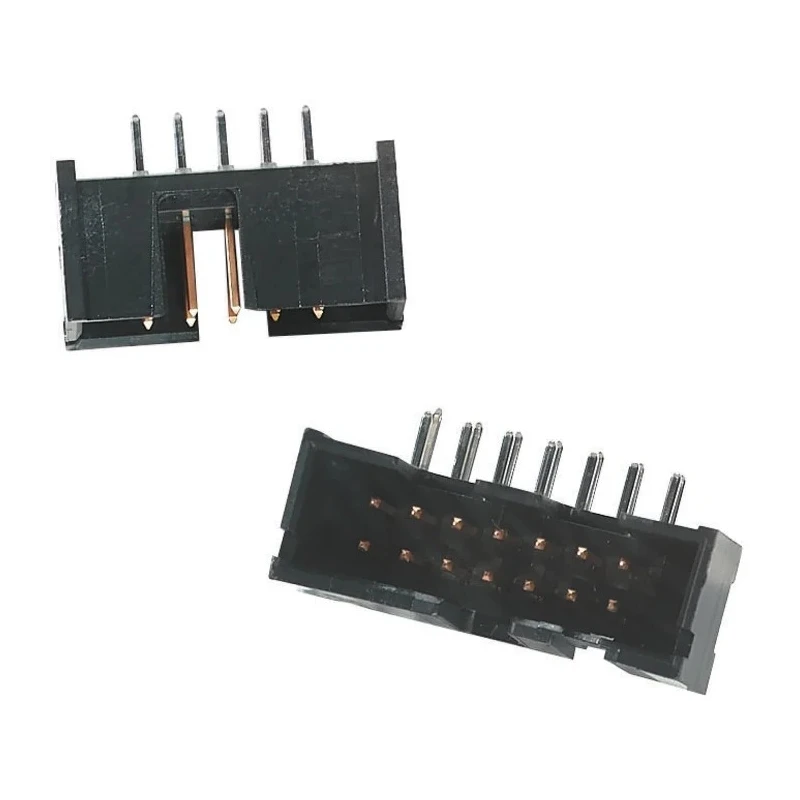

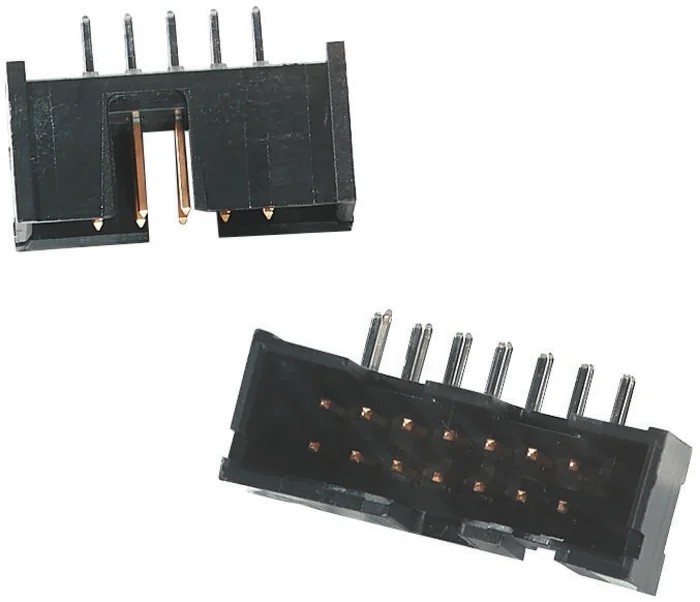

TE Connectivity AMP-LATCH Series Right Angle Through Hole PCB Header 20 Contacts 2.54 mm Pitch Shrouded 5103310-5
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.43mm |
Key Features
- Features a shrouded design for reliable board connection.
- Two-row, right angle orientation suitable for various PCB layouts.
- Constructed with flame retardant polybutylene terephthalate housing.
- Gold-plated copper alloy contacts ensure excellent conductivity.
- Supports current up to 1A and voltage rated at 250V.
- Termination type is solder with kinked solder tails for secure mounting.
- Operating temperature range of -65°C to 105°C suits diverse environments.
- Includes polarization slots for accurate IDC ribbon cable mating.
Product Description
TE Connectivity 5103310-5 AMP-LATCH Series Right Angle Through Hole PCB Header is a premium electronic connector designed for robust and accurate wire-to-board connections. The device features a low profile, shrouded housing made from flame retardant 94V-0 rated polybutylene terephthalate, ensuring longevity and safety in various applications.
Equipped with 20 gold-plated copper alloy contacts arranged in two rows with a 2.54 mm pitch, this header supports currents up to 1 amp and is rated for voltages up to 250V. The right angle orientation optimizes PCB space utilization and is perfect for complex electronic assemblies.
The AMP-LATCH series includes center and dual polarization slots enhancing precise mating with IDC ribbon cable connectors to prevent misalignment. The board standoffs feature allows for excess flux removal during the soldering process, improving solder joint quality. Kinked solder tails provide secure mechanical and electrical connections for through-hole mounting.
Operating reliably in temperatures ranging from -65°C to 105°C, this PCB header is suitable for industrial, business, medical, networking, storage, appliances, and electrical testing environments. Its robust build ensures dependable performance across demanding electronics applications.
Shrouded design with polarization slots for accurate connection. Gold-plated copper alloy contacts resist corrosion and maintain conductivity. Flame retardant, heat-resistant housing material supports safety standards. Right angle, two-row configuration fits compact PCB layouts.
Kinked solder tails enhance solder reliability and mechanical stability. Wide operating temperature range to suit diverse applications.
This AMP-LATCH PCB header harmonizes electrical integrity with mechanical robustness, making it an essential component in sophisticated electronic systems. Select from this product to optimize connectivity performance in your PCB assemblies.
Explore more electronic components and connectors in the PCB Headers category on EnvMart for a comprehensive selection of quality parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current of 1A.
The voltage rating for this header is 250V.
The contact pitch for this model is 2.54 mm.
The housing is made from flame retardant polybutylene terephthalate (PBT).
This model features 20 contacts arranged in two rows.
The termination type is solder, with kinked solder tails for secure mounting.
The operating temperature range is from -65°C to 105°C.
This connector is designed with a right angle orientation.
The contacts are made of gold-plated copper alloy, which ensures excellent conductivity.
Yes, it includes polarization slots for accurate mating with IDC ribbon cable connectors.
This model supports through hole mounting.
The tail pin length is 3.43 mm.
