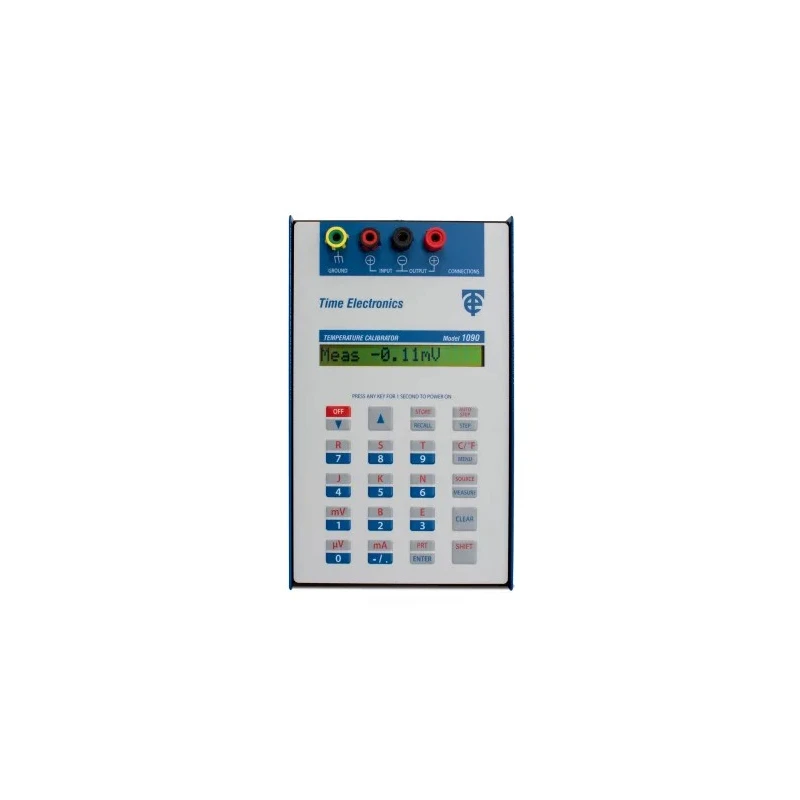

Time Electronics Thermocouple Temperature Calibrator 1090, NiMH Battery, 0.2 °C Accuracy, 0.1 °C/°F Resolution 1090

Time Electronics 1090 Thermocouple Temperature Calibrator is a high performance portable instrument designed for precise source and measure functions suitable for thermocouples, Pt100, mV, and mA signals. It supports and simulates 8 types of thermocouples: J, K, T, R, S, B, N, and E, displaying results in selectable units of Celsius or Fahrenheit.

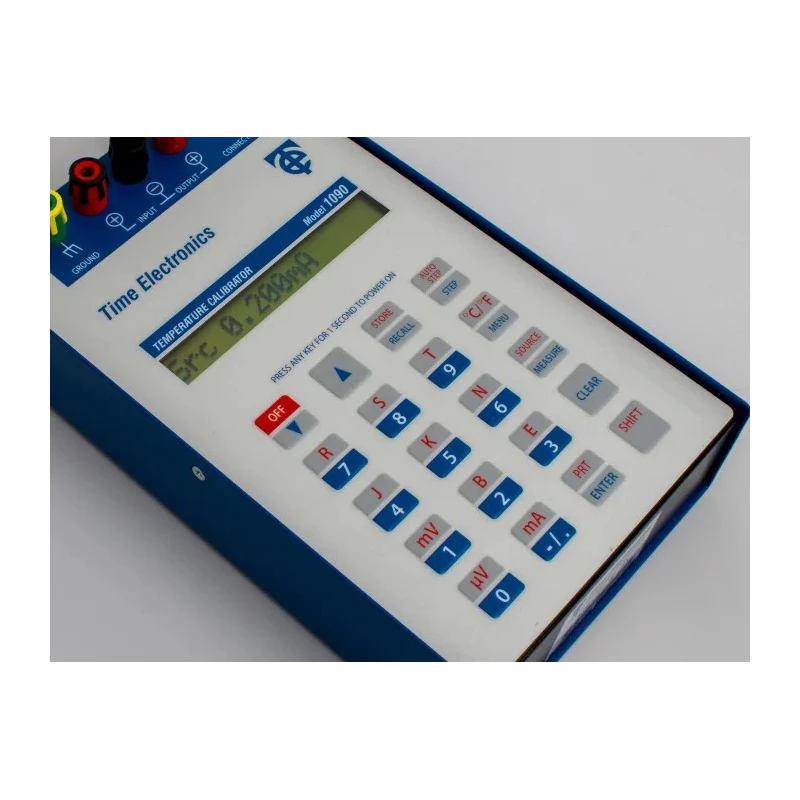

This calibrator features a large backlit super-twist LCD with 7.5 mm digits for clear readability even in low light conditions. It is equipped with a NiMH rechargeable battery offering up to 60 hours of continuous usage, combined with an auto power-save feature to extend battery life.

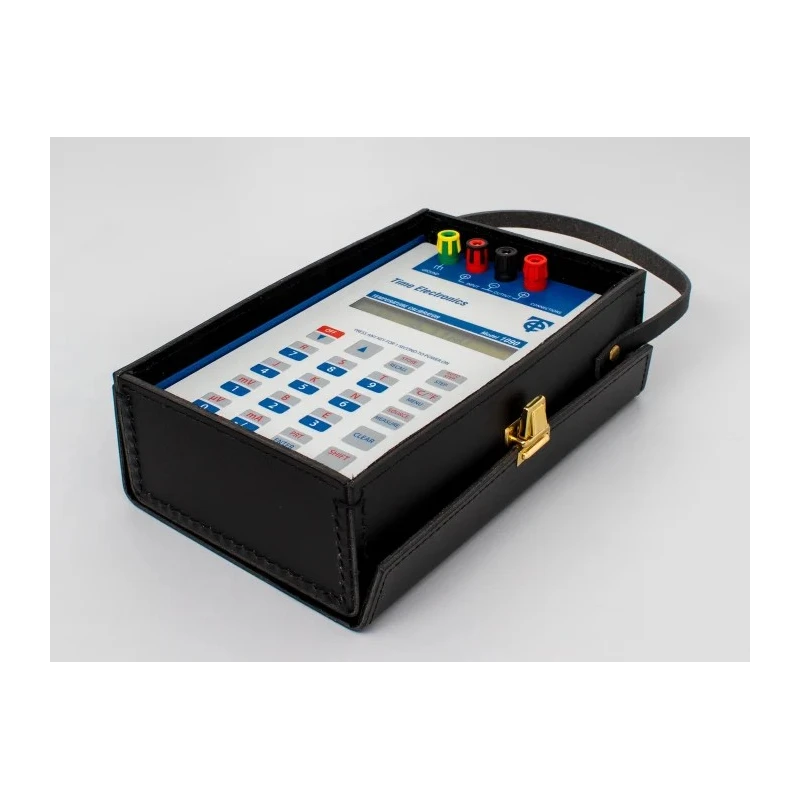

The device includes a sealed membrane keypad for reliable operation in industrial environments and has both automatic and manual cold junction compensations for enhanced measurement accuracy. Its sturdy carrying case includes a compartment for test leads, making it convenient for fieldwork.

The 1090 model also features automatic step functions with configurable step times and a process loop drive mode at 24V. Pt100 simulation includes 14 preset values to within ±0.1% of DIN43760, ranging from -100°C to 800°C, while Pt100 measurement accuracy is ±0.5% between 20Ω (-200°C) and 350Ω (700°C).

Supports 8 thermocouple types and Pt100 sensor calibration in one device. High resolution and accuracy suitable for laboratory, industrial, and field calibration. Long battery life and robust design for portable use. Includes a mains charger and protective carrying case with test lead compartment.

Meets international calibration standards ISO 17025, ITS 90, and EN60751.

This calibrator is ideal for industrial, laboratory, HVAC, manufacturing, and quality control applications requiring precise temperature measurement and simulation. Explore the full range of Time Electronics calibration instruments and temperature test equipment at EnvMart.
