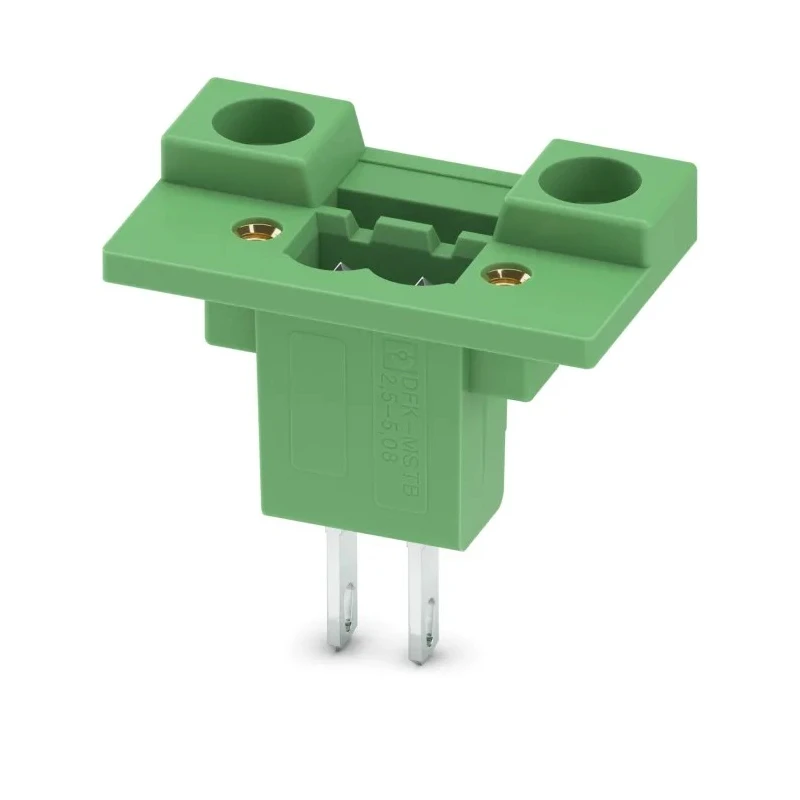

Phoenix Contact Pluggable Terminal Block 2-Contact 5.08 mm Pitch 320 V 12 A DFK-MSTB 2.5/2-GF-5.08 0710170

Phoenix Contact 0710170 pluggable terminal block is a precision-engineered connector designed for industrial and electronic applications. It features two contacts with a 5.08 mm pitch and a single row configuration, suitable for standard PCB mounting and wiring requirements. The device supports a nominal current of 12 A and rated voltage of 320 V (III/2), ensuring dependable electrical performance for moderate power circuits.

The housing is constructed from robust green polyamide, providing electrical insulation and mechanical durability. Wire sizes compatible with this terminal block range from 24 AWG to 12 AWG, allowing for versatile use in diverse wiring schemes. Contact surfaces are tin-plated, enhancing corrosion resistance and electrical conductivity.

Connection method utilizes solder and slip-on connection, facilitating secure and reliable installation. Its compact dimensions - 17.5 mm in length, 30.48 mm width, and 20.2 mm depth - allow for efficient space utilization in circuit designs. The straight orientation of the connection simplifies wiring layouts and maintenance.

This product is ideal for use in electronic components assemblies, power and connector systems, industrial automation, and instrumentation where high integrity terminal connections are required. Its feed-through header design permits straightforward signal or power passage through PCBs while maintaining safety and connectivity standards.

The terminal block features a green polyamide housing ensuring durability and insulation. It supports wire sizes from 24 AWG minimum to 12 AWG maximum for varied applications. Contact surface is tin-plated to provide reliable electrical connectivity.

This single-row, 2-position feed-through header ensures straightforward integration into PCB assemblies. Compact dimensions of 17.5 mm length, 30.48 mm width, and 20.2 mm depth optimize space efficiency. The connection orientation is straight, suitable for standard wiring setups.

Rated voltage is 320 V (III/2) ensuring safe operation in typical electronic circuits. Nominal current capacity is 12 A supporting moderate power levels. Ideal for industrial, electronic, power, and automation equipment requiring secure pluggable connections.

It facilitates high quality, reliable, and efficient terminal solutions for various commercial and industrial applications. Browse EnvMart categories for similar Pluggable Terminal Blocks and electronic connectors from leading manufacturers.
