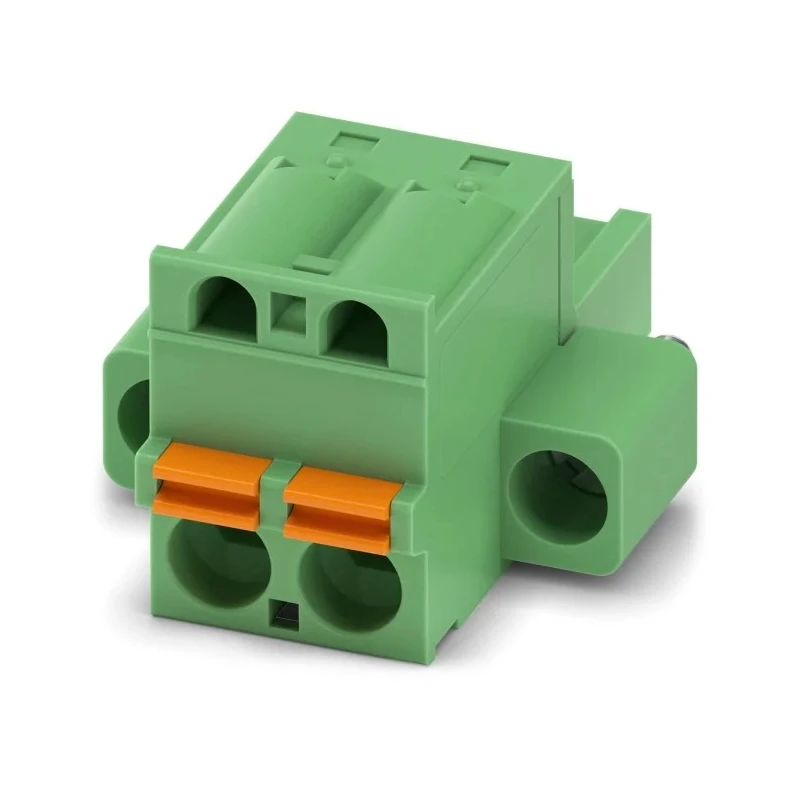

Phoenix Contact FKC 2.5/2-STF-5.08 Series Pluggable Terminal Block, 2-Contact, 5.08 mm Pitch, 1 Row, 12A, 630V 1873207
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 630V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 12A |
| Length | 25.73mm |
| Model | 1873207 |
| Depth | 15mm |
| Width | 20.26mm |
| Housing Material | Polyamide |
| Series | FKC 2.5/2-STF-5.08 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | RoHS |
| Number of Contacts | 2 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 14AWG |
| Wire Connection Method | Screw |
| PCB connector, nominal current | 12 A, rated voltage (III/2): 320 V, number of positions: 2, pitch: 5.08 mm, connection method: Push-in spring connection, colour: green, contact surface: Tin |
Key Features
- The terminal block supports a nominal current of 12 A and rated voltage of 630 V.
- Constructed with durable polyamide housing for enhanced insulation.
- Screw wire connection method enables secure and stable connection.
- Compatible with wire sizes ranging from 0.2 mm² to 2.5 mm² (24 AWG to 14 AWG).
- The green color coding allows easy identification in assemblies.
- Straight orientation design simplifies installation on PCB assemblies.
- Maintains compliance with RoHS standards ensuring environmental safety.
- Compact dimensions with length 25.73 mm, width 20.26 mm, and depth 15 mm for space-efficient use.
Product Description
Phoenix Contact 1873207 is a high-quality pluggable terminal block designed for use in industrial and electronic applications requiring secure and dependable wiring connections. This product features a 2-contact configuration with a 5.08 mm pitch and a single row, providing reliable connectivity on printed circuit boards and associated assemblies.
The terminal block supports a nominal current of 12 A and a rated voltage of 630 V, making it suitable for a wide range of electronic control systems, power distribution, and automation equipment. It employs a screw wire connection method to ensure a firm and maintenance-friendly electrical contact with wires sized between 0.2 mm² and 2.5 mm² (24 AWG to 14 AWG).
Manufactured with polyamide housing material, the terminal block provides excellent insulation and robustness against mechanical stress and environmental influences. Its straight orientation and green coloration enable easy installation and identification within complex electronic setups.
This pluggable terminal block complies with RoHS standards, ensuring it is free from hazardous substances and suitable for use in environmentally conscious manufacturing processes. The compact size with dimensions 25.73 mm in length, 20.26 mm in width, and 15 mm in depth allows for efficient use of PCB space while delivering dependable performance.
Ideal for applications in electronic components manufacturing, industrial automation, power connectors, and control panels, the Phoenix Contact FKC 2.5/2-STF-5.08 simplifies wiring tasks and enhances system reliability.
The terminal block supports a nominal current of 12 A and rated voltage of 630 V. Constructed with durable polyamide housing for enhanced insulation. Screw connection method enables secure and stable wiring. Compatible with wire sizes ranging from 0.2 mm² to 2.5 mm² (24 AWG to 14 AWG).
Green color coding allows easy visual identification. Straight orientation design for PCB mounting. RoHS compliant for environmental safety. Compact dimensions enable space-efficient installations. Explore more high-quality electronic components and Pluggable Terminal Blocks at EnvMart for your industrial and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a nominal current of 12 A and a rated voltage of 630 V.
It is compatible with wire sizes ranging from 0.2 mm² to 2.5 mm² (24 AWG to 14 AWG).
This model features a 5.08 mm pitch and has 2 contacts.
It employs a screw connection method for secure and stable wiring.
The compact dimensions are 25.73 mm in length, 20.26 mm in width, and 15 mm in depth.
It is constructed with durable polyamide housing for enhanced insulation.
Yes, it complies with RoHS standards, ensuring it is free from hazardous substances.
It features a straight orientation design, which simplifies installation on PCB assemblies.
The country of origin for this terminal block is Germany.
It has green color coding for easy identification in assemblies.
This model has a single row configuration.
It is suitable for applications in electronic components manufacturing, industrial automation, power connectors, and control panels.
