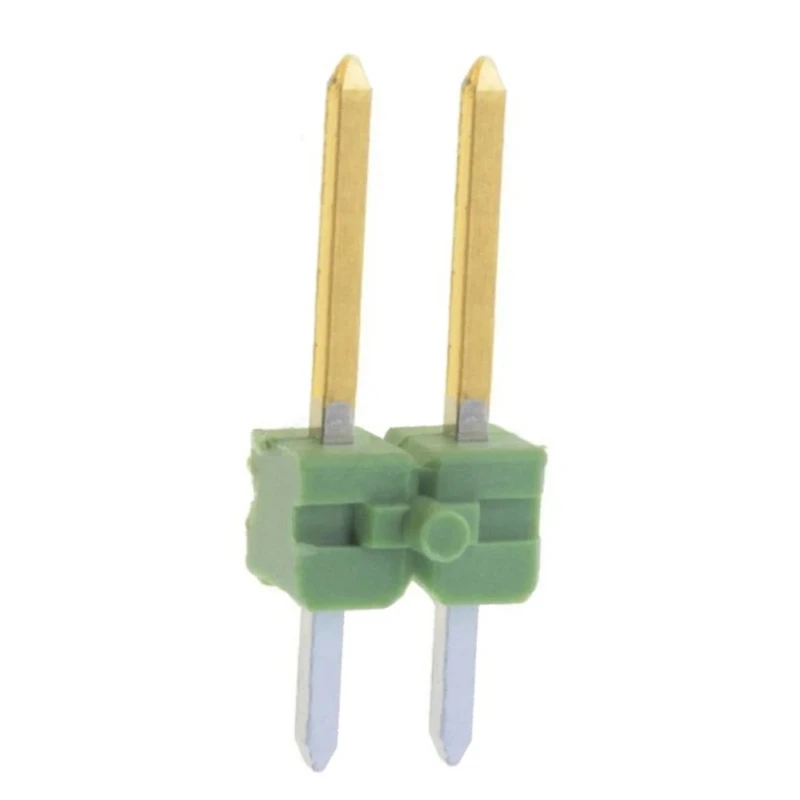

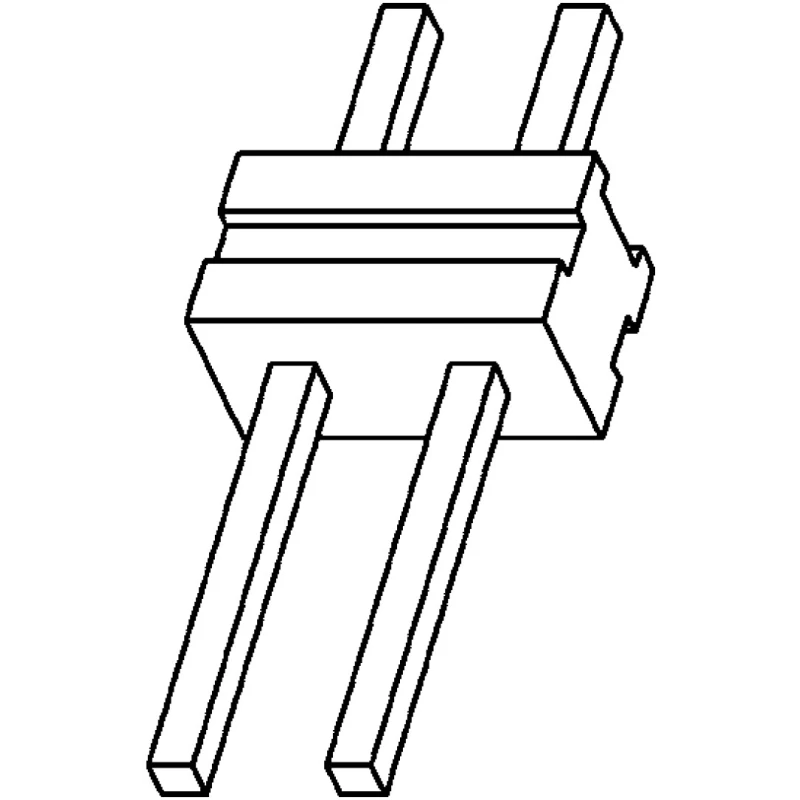

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 2 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 825433-2

TE Connectivity 825433-2 AMPMODU MOD II Series Straight Through Hole Pin Header is a high-quality, unshrouded, single-row PCB pin header designed with a 2.54 mm pitch. It features 2 gold-plated brass male contacts housed in polybutylene terephthalate, ensuring excellent electrical performance and mechanical stability.

Designed for through hole mounting with a straight orientation, this connector is ideal for board-to-board and wire-to-board systems within electronic components sectors. The 3 amp current rating and voltage endurance up to 750 volts enable it to perform reliably in demanding industrial and commercial environments.

The header’s breakaway design allows easy customization to the desired length to facilitate different PCB configurations, improving assembly flexibility and reducing labor time. It withstands operating temperatures ranging from -65°C to 105°C, making it suitable for diverse climate and industrial applications.

Applications of the AMPMODU MOD II header include automotive controls, industrial automation, test equipment, telecommunications, medical instrumentation, data storage, and consumer appliances. Its robust construction and reliable performance make it a preferred choice for complex electronic systems requiring secure and durable interconnect solutions.

This pin header features a straight orientation for through hole mounting. It has 2 male brass contacts plated with gold for high conductivity. The pitch between contacts is a standard 2.54 mm, compatible with many PCBs.

The housing is made of durable polybutylene terephthalate and is unshrouded for easy access. It supports a current rating of 3 amps and voltage rating up to 750 volts. The contact tail length is 3.2 mm and mating pin length is 6.7 mm for secure soldering and connections.

Operating temperature range is from -65°C to 105°C, suitable for diverse environments. This breakaway header design allows customization to required size, enhancing installation efficiency. Suitable applications include automotive controls, industrial automation, telecom, medical, and computing equipment.

Choose TE Connectivity for reliable, economical electronic connectors that meet rigorous industrial standards. Explore more PCB Headers and connectors on EnvMart for your industrial and manufacturing needs.
