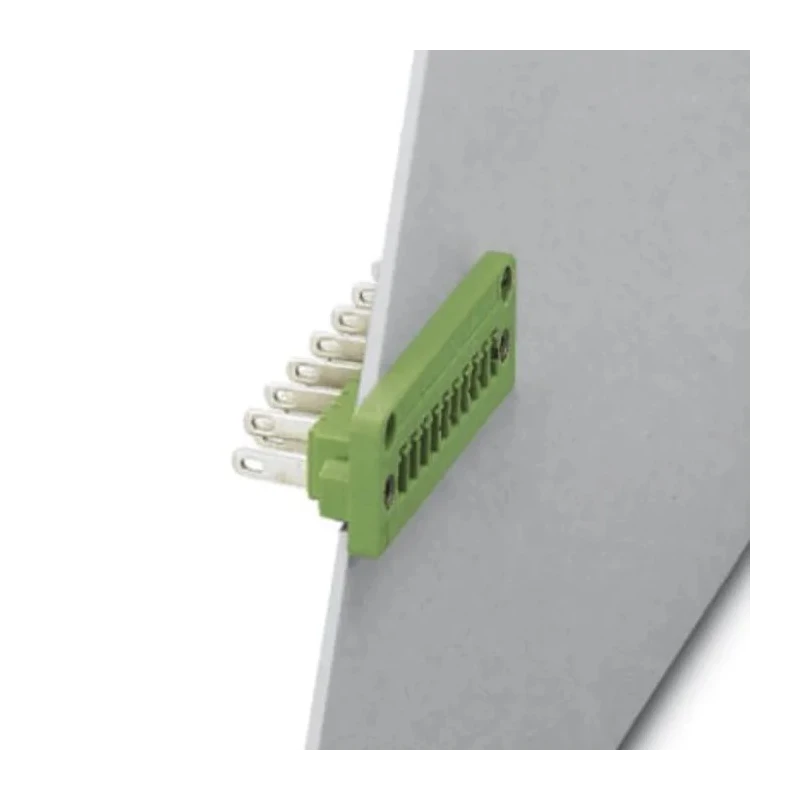

Phoenix Contact Pluggable Terminal Block 8-Contact 3.81 mm Pitch 1 Row 160V Polyamide Housing 12A Current 1827596
Specifications
| Country of Origin | Poland |
|---|---|
| Voltage | 160V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 12A |
| Length | 16.2mm |
| Model | 1827596 |
| Depth | 11mm |
| Width | 44.87mm |
| Housing Material | Polyamide |
| Series | DFK-MC 1.5/8-GF-3.81 |
| Number of Rows | 1 |
| Pitch | 3.81mm |
| Number of Contacts | 8 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.14mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 16AWG |
| Wire Connection Method | Solder |
Key Features
- The terminal block supports a maximum current of 12 amps and voltage of 160 volts.
- Constructed with durable polyamide housing ensuring electrical insulation and mechanical robustness.
- Features male connector gender with solder wire connection method for reliable connection.
- Supports wire sizes from 0.14 mm² (28 AWG) up to 0.14 mm² (16 AWG), suitable for small conductor applications.
- Designed with a straight orientation body for easy front-facing panel mounting.
- Equipped with tin-plated copper alloy contacts for corrosion resistance and low contact resistance of approximately 2.2 mΩ.
- Operating temperature range suitable for demanding environments, featuring high shock duration capacity of 18 ms.
Product Description
Phoenix Contact 1827596 Pluggable Terminal Block is a high-quality, 8-contact, single-row terminal block with a 3.81 mm pitch, designed for secure and efficient electrical connections on printed circuit boards. It supports a current rating of 12 A and withstands voltages up to 160 V, making it ideal for industrial and electronic applications.
The terminal block features a polyamide housing that provides robust electrical insulation and mechanical strength, enhancing safety and durability in harsh operational conditions. Its male connector design coupled with a solder wire connection method ensures strong and reliable conductor connections.
Wire size compatibility ranges from 0.14 mm² to 0.14 mm² (28 AWG to 16 AWG), suitable for a variety of conductor types. Its straight orientation facilitates easy front-facing panel mounting, optimizing space and installation efficiency.
Compact physical dimensions of 16.2 mm length, 44.87 mm width, and 11 mm depth allow integration into constrained PCB layouts without sacrificing performance. The terminal block contacts are made from highly conductive copper alloy with tin plating for excellent corrosion resistance and low contact resistance around 2.2 milliohms, ensuring stable electrical connectivity.
This terminal block is rated for a shock duration of 18 ms, offering resilience against mechanical stress and vibration commonly encountered in industrial and manufacturing environments. It complies with UL 94 V0 flammability standards and maintains stable operation across a broad temperature range, facilitating use in electronics, industrial automation, HVAC, and control panel assemblies.
The terminal block is designed for applications in industrial automation and electronic circuit wiring. Its compact and robust design supports efficient PCB signal and power distribution. Compatible with various wire gauges and suitable for precise soldered electrical connections.
Polyamide material resists electrical hazards, increasing operational safety. Ideal for manufacturing, testing, and industrial equipment requiring reliable terminal blocks.
Set your projects for success with the premium quality Phoenix Contact DFK-MC 1.5/8-GF-3.81 Series Pluggable Terminal Block 1827596, available at EnvMart, your trusted industrial product partner.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The terminal block supports a maximum current of 12 amps.
It can withstand voltages up to 160 volts.
This terminal block is compatible with wire sizes ranging from 0.14 mm² (28 AWG) to 0.14 mm² (16 AWG).
The housing is constructed from polyamide, providing electrical insulation and mechanical strength.
It has dimensions of 16.2 mm in length, 44.87 mm in width, and 11 mm in depth.
The terminal block uses a solder wire connection method for reliable connections.
It features a straight orientation, facilitating easy front-facing panel mounting.
The contact resistance is approximately 2.2 milliohms, ensuring stable electrical connectivity.
It is rated for a shock duration capacity of 18 milliseconds.
The terminal block is manufactured in Poland.
This terminal block is part of the DFK-MC 1.5/8-GF-3.81 series.
It is designed for applications in industrial automation and electronic circuit wiring.
