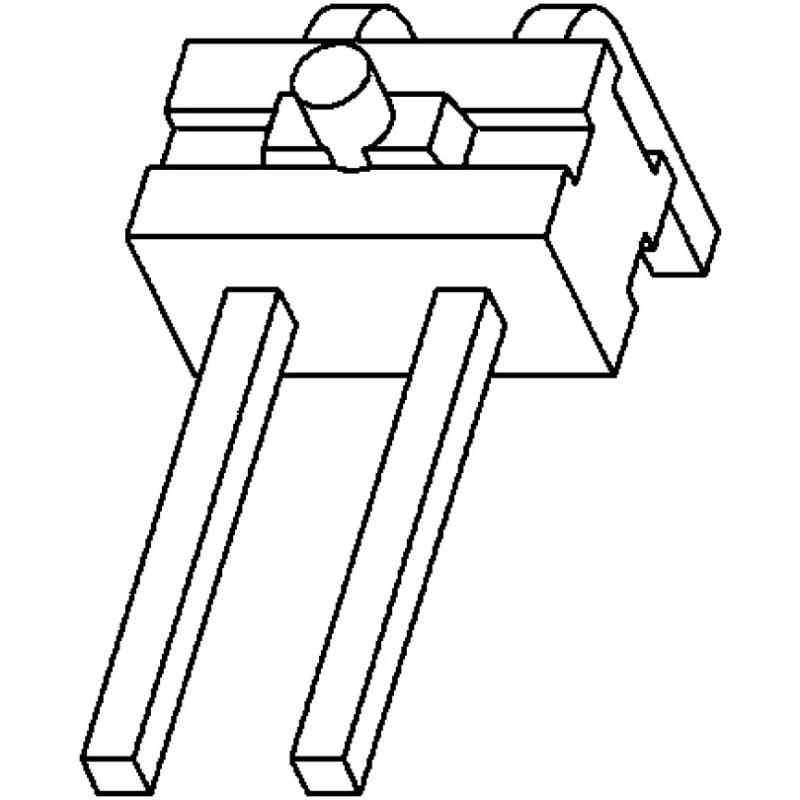

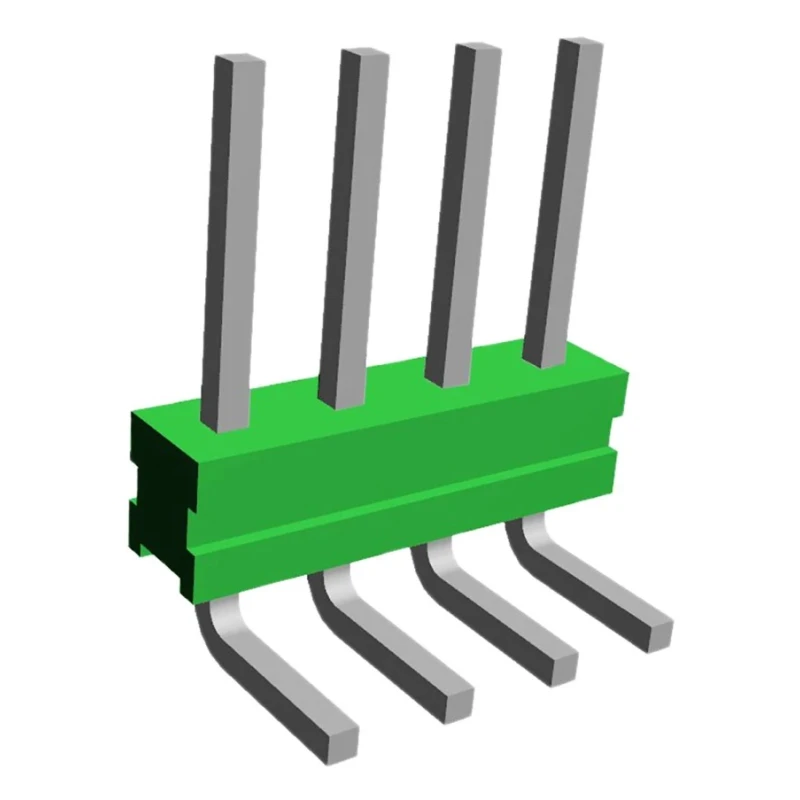

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Pin Header, 4 Contacts, 2.54 mm Pitch, 1 Row 825437-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Model | 825437-4 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- This right angle through hole pin header is designed for efficient board-to-board and wire-to-board connections.
- Constructed with polybutylene terephthalate housing for durability and insulation.
- Gold-plated phosphor bronze contacts ensure excellent conductivity and corrosion resistance.
- Rated for a current of 3 A and voltage of 750 V, suitable for varied electronic applications.
- Operating temperature range spans from -65°C to 105°C, supporting harsh environments.
- Features male contact gender with solder termination type for secure and reliable mounting.
- The versatile design allows breakaway sections to adjust size as needed, saving time in installation.
- Ideal for automotive controls, industrial equipment, telecommunications, medical instruments, and more.
Product Description
TE Connectivity 825437-4 AMPMODU MOD II Series Right Angle Through Hole Pin Header provides a reliable and economical single row, unshrouded pin header with 4 contacts arranged at a 2.54 mm pitch.
Its robust polybutylene terephthalate housing and gold-plated phosphor bronze contacts ensure durability and excellent electrical performance. Rated for 3 A current and 750 V voltage, this connector supports demanding industrial and electronic applications.
The right angle orientation with through hole mounting facilitates easy PCB integration with strong mechanical stability. The solder termination type with male contact gender ensures dependable connectivity.
This pin header is versatile, designed to be broken down into required lengths, which saves assembly time and labor costs. Its wide operating temperature range from -65°C to 105°C makes it suitable for harsh operating conditions.
Applications span automotive control systems, industrial and test equipment, telecommunications, computers, medical instruments, storage equipment, and appliances. This right angle through hole pin header is designed for efficient board-to-board and wire-to-board connections.
Constructed with durable polybutylene terephthalate housing. Gold-plated phosphor bronze contacts deliver superior electrical conductivity. Rated for 3 A current and 750 V voltage tolerance. Compatible across various industrial and commercial electronic systems.
Unshrouded design with male contact gender for soldering. Operating temperature range from -65°C to 105°C. Modular breakaway sections allow size customization.
This TE Connectivity AMPMODU MOD II series connector is a trusted choice for industries requiring reliable, compact, and economical PCB interconnect solutions. Explore more in EnvMart's comprehensive electronics components catalog for connectivity systems.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It is rated for a current of 3 A.
The voltage rating is 750 V.
The operating temperature range spans from -65°C to 105°C.
This model has 4 contacts.
It uses a solder termination type.
The pitch of the contacts is 2.54 mm.
The housing is constructed from polybutylene terephthalate.
The contacts are made of gold-plated phosphor bronze.
It features a right angle orientation.
Yes, it is designed for both board-to-board and wire-to-board connections.
The tail pin length is 3.2 mm.
It is suitable for automotive controls, industrial equipment, telecommunications, and medical instruments.
