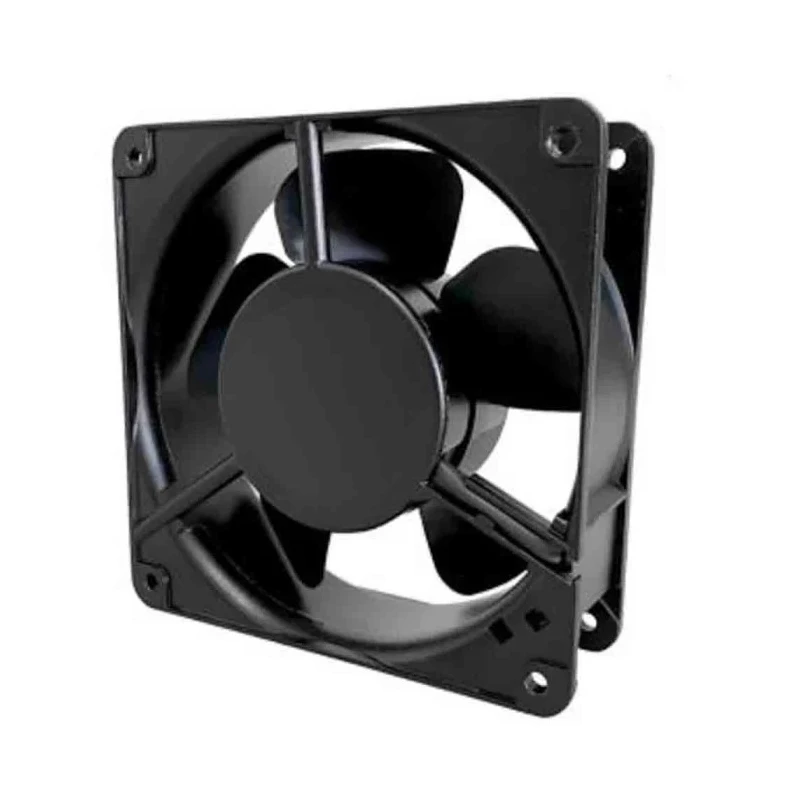

RS PRO OA109 Series Axial Fan 230V AC 15 W 0.08 A Max Air Flow 180.1 m³/h IP55 120 mm 38 mm 175-9807
Specifications
| Country of Origin | Taiwan |
|---|---|
| Power Consumption | 15W |
| Brand | RS PRO |
| Height | 120mm |
| Fan Speed | 3100rpm |
| Air Flow | 180.1m³/h |
| Model | 175-9807 |
| Depth | 38mm |
| IP Rating | IP55 |
| Noise Level | 46dB |
| Width | 120mm |
| Series | OA109 |
| Maximum Current | 0.08A |
| Terminal type | FASTON |
| Supply Voltage | 230V ac |
| Bearing Type | Ball |
| Standards/Approvals | RoHS |
| Fan Frame Size | 120 mm |
| Fan Frame Type | Square |
| Direction of Curve | Forward |
Key Features
- Features a robust die-cast aluminium frame for enhanced durability.
- Equipped with a PBT UL94V-0 plastic impeller ensuring safety and efficiency.
- Uses a dual ball double sealed bearing system to provide long life and reliability.
- Incorporates a shaded pole motor with impedance protection for smooth operation.
- Delivers low acoustic noise level at 46dB, suitable for noise-sensitive environments.
- Square fan frame measures 120 mm by 120 mm with a depth of 38 mm ensuring compact design.
- Terminal connection type is FASTON for easy electrical installation.
- Fan speed operates at 3100 rpm providing efficient airflow direction forwards.
Product Description
RS PRO 175-9807 OA109 Series Axial Fan is a reliable industrial cooling solution powered by a 230V AC supply with a power consumption of 15 W and maximum current draw of 0.08 A. This axial fan offers a steady air flow of 180.1 cubic meters per hour while maintaining a low noise level of 46 dB, making it suitable for various HVAC, industrial, and automation applications.
The fan features a die-cast aluminium frame combined with a PBT UL94V-0 plastic impeller, providing a durable yet lightweight construction. It employs a dual ball double sealed bearing system and a shaded pole motor with impedance protection, ensuring smooth, efficient air flow and extended operational life, typically around 40,000 hours according to L10 reliability predictions.
Designed with a square frame size of 120 mm width and height, and 38 mm depth, the fan’s compact size allows straightforward integration into equipment requiring high performance ventilation. The FASTON terminal type connection offers convenient electrical attachment. Forward airflow with a fan speed of 3100 rpm supports effective thermal management in industrial and laboratory environments.
The IP55 ingress protection rating provides resistance against dust ingress and water jets, enhancing the fan’s suitability for challenging environmental conditions. Manufactured in Taiwan, Province Of China, this product conforms to RoHS standards, assuring compliance with environmental regulations.
Robust die-cast aluminium frame construction for reliability. High-quality PBT UL94V-0 plastic impeller for efficient air movement. Dual ball bearing system ensures extended durable operation. Shaded pole motor with impedance protection for smooth, low-noise functioning.
Low noise level of 46 dB ideal for quiet operation. Compact square frame 120 mm × 120 mm × 38 mm dimension. IP55 rated for dust and water protection. Fan speed at 3100 rpm for consistent airflow delivery. Faston terminal type simplifying electrical connections.
Typical life expectancy around 40,000 hours based on L10 reliability curve.
This axial fan is ideally suited for industrial, HVAC, automation, and thermal management applications requiring efficient, reliable air flow. For additional information or to browse similar Axial Fan products, please explore related categories at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum airflow of this axial fan is 180.1 cubic meters per hour.
The power consumption of this fan is 15 watts.
This model operates at a noise level of 46 dB, making it suitable for noise-sensitive environments.
The fan frame has a square size of 120 mm in width and height, with a depth of 38 mm.
It uses a FASTON terminal type for easy electrical installation.
The fan speed operates at 3100 rpm, providing efficient airflow.
This fan has an IP55 rating, indicating protection against dust and water jets.
This unit employs a dual ball double sealed bearing system for extended operational life.
The typical life expectancy of this fan is around 40,000 hours based on L10 reliability predictions.
This fan is manufactured in Taiwan, Province of China.
This model conforms to RoHS standards, ensuring compliance with environmental regulations.
This axial fan is suitable for various HVAC, industrial, and automation applications requiring efficient airflow.
