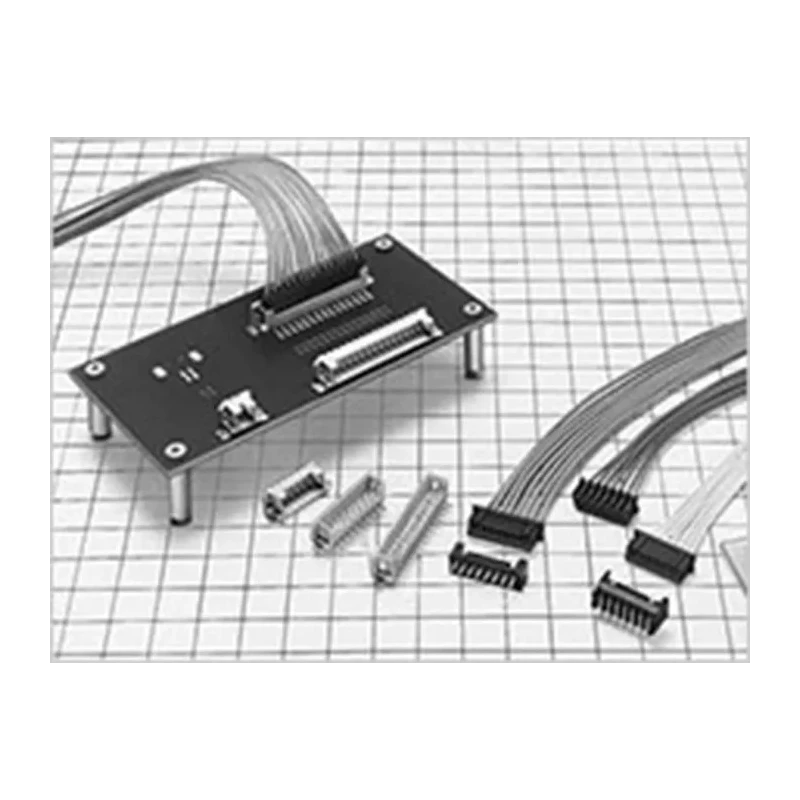

Hirose DF3 Series Female Crimp Terminal 3A Current Gold Plated Phosphor Bronze Contact DF3-2428SCFC

Name: Hirose DF3 Series Female Crimp Terminal 3A Current Gold Plated Phosphor Bronze Contact DF3-2428SCFC
Brand: Hirose
SKU: 96711
Price: 0.08 USD
Availability: InStock



Category Crimp Contacts Brand Hirose Condition New

Specifications

Country of Origin	Japan
Brand	Hirose
Current	3A
Model	DF3-2428SCFC
Gender	Female
Contact Material	Phosphor Bronze
Series	DF3
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-35°C
For Use With	Discrete Wire Connectors
Contact Plating	Gold
Maximum Wire Size mm²	0.2mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	24AWG
Maximum Contact Resistance	30mΩ
Crimp Socket	Low profile design with mounting height 7.5mm

Key Features

Constructed from phosphor bronze contact material for durability.
Suitable for minimum wire size 28 AWG and maximum wire size 24 AWG or 0.2 mm².
Gold plated contact surface ensures reliable electrical connection.
Low profile design with mounting height of 7.5 mm for crimp socket.
Operating temperature range from -35°C to 85°C for versatile applications.
Termination type is crimp for secure and stable connections.
Maximum contact resistance is 30 milliohms ensuring low loss connections.
Manufactured in Japan for high quality standards.

Product Description

Hirose DF3-2428SCFC is a female crimp terminal designed for use with discrete wire connectors, supporting a current rating of 3A. It features a durable phosphor bronze contact construction plated with gold to ensure excellent conductivity and resistance to corrosion. The terminal supports wire sizes with a minimum of 28 AWG and a maximum of 24 AWG (0.2 mm²), accommodating various wiring requirements.

This crimp terminal has a low profile design with a mounting height of 7.5 mm for the crimp socket, optimizing space usage on PCBs and wire assemblies. It operates reliably between temperatures of -35°C up to 85°C, suitable for a broad range of industrial and electronic applications.

The termination type is crimp, providing secure mechanical and electrical connections, with a maximum contact resistance of 30 milliohms, supporting efficient signal and current transfer. Designed for combining with DF11 series ID type connectors, it allows multi-harness assembly with full automatic ID machines.

Manufactured in Japan, the DF3-2428SCFC adheres to high-quality standards ensuring long-term reliability and performance in electronic assemblies. Its design is optimized for horizontal or vertical board connections, compatible with in-line plugs for board-to-cable connections.

Typical applications include industrial electronics, telecommunications, automotive wiring harnesses, and other commercial electronic equipment where reliable electrical termination is critical.

Constructed from phosphor bronze contact material for durability. Gold plated contact surface ensures reliable electrical connection. Supports wire sizes from 28 AWG to 24 AWG (0.2 mm²). Low profile crimp socket design with 7.5 mm mounting height.

Operating temperature range -35°C to 85°C. Maximum contact resistance 30 milliohms. Termination via crimp type for durable connections. Manufactured in Japan to high standards. Explore more Hirose electronic components and crimp terminals at EnvMart for reliable connectivity solutions.
