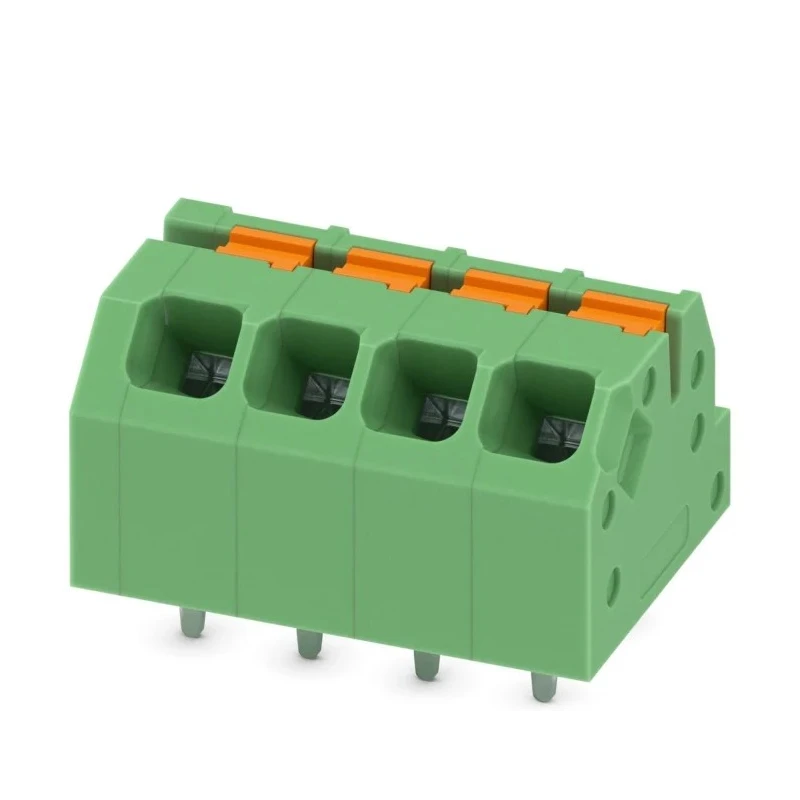

Phoenix Contact PCB Terminal Block 4 Contacts 3.5 mm Pitch 16A 160V Wave Soldering Mount SPTAF 1/4-3.5-IL 1861959
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 160V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 16A |
| Model | 1861959 |
| Mount Type | Wave Soldering Mount |
| Housing Material | Polyamide |
| Series | SPTAF 1/ 4-3.5-IL |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Standards/Approvals | EU RoHS, cULus Recognised |
| Number of Contacts | 4 |
| PCB Terminal block, nominal current | 16 A, nom. voltage: 160 V, pitch: 3.5 mm, number of positions: 4, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °, colour: green |
Key Features
- Features push-in spring connection for secure and easy wiring.
- Green polyamide housing for durability and insulation.
- Single row, straight orientation with 45° conductor/PCB connection direction.
- Nominal current capacity of 16 A and voltage rating of 160 V.
- Suitable for industrial, electronic, and electrical applications requiring reliable PCB connections.
- Complies with EU RoHS and cULus recognized standards.
- Manufactured in Germany ensuring high quality and manufacturing standards.
Product Description
Phoenix Contact 1861959 is a PCB Terminal Block from the SPTAF 1/4-3.5-IL series designed for wave soldering mounting applications. This terminal block accommodates 4 contacts with a pitch of 3.5 mm and supports a nominal current of 16 A and voltage rating of 160 V, making it suitable for robust PCB electrical connections.
The terminal block features a push-in spring connection method that ensures ease of wiring and reliable contact without the need for screws. The housing material is green polyamide, known for its excellent insulation properties and durability in industrial environments.
Its straight orientation and single-row configuration simplify PCB layout and mounting. The conductor to PCB connection direction is angled at 45°, optimizing space and connection efficiency on the PCB.
This Phoenix Contact product complies with EU RoHS and is recognized by cULus standards, ensuring environmental and safety compliance. It is ideal for industrial electronics, manufacturing, and automation equipment requiring dependable terminal blocks.
Manufactured in Germany, the product meets high quality and manufacturing standards set by Phoenix Contact. Includes 4 electrical contacts providing firm and consistent connections. 3.5 mm pitch spacing for compatibility with standardized PCB designs.
16 A current and 160 V voltage ratings suitable for various power applications. Wave soldering mount type for secure and efficient assembly onto PCBs. Green polyamide housing offers mechanical strength and electrical insulation.
Push-in spring connection enhances wiring efficiency and reliability. Compatible with industrial, laboratory, and manufacturing electrical systems. Explore related PCB Headers and components on EnvMart for complete electronic assembly solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block has a nominal current capacity of 16 A and a voltage rating of 160 V.
The contacts in this model are spaced at a pitch of 3.5 mm.
It features 4 contacts for electrical connections.
This model utilizes a push-in spring connection method for secure wiring.
It is designed for wave soldering mounting applications.
The terminal block has a straight orientation with a 45° conductor to PCB connection direction.
The housing is made from green polyamide, which provides durability and insulation.
It complies with EU RoHS and is recognized by cULus standards.
This product is manufactured in Germany, ensuring high quality standards.
It belongs to the SPTAF 1/4-3.5-IL series.
It is suitable for industrial, electronic, and electrical applications requiring reliable PCB connections.
This terminal block has a single row configuration.
