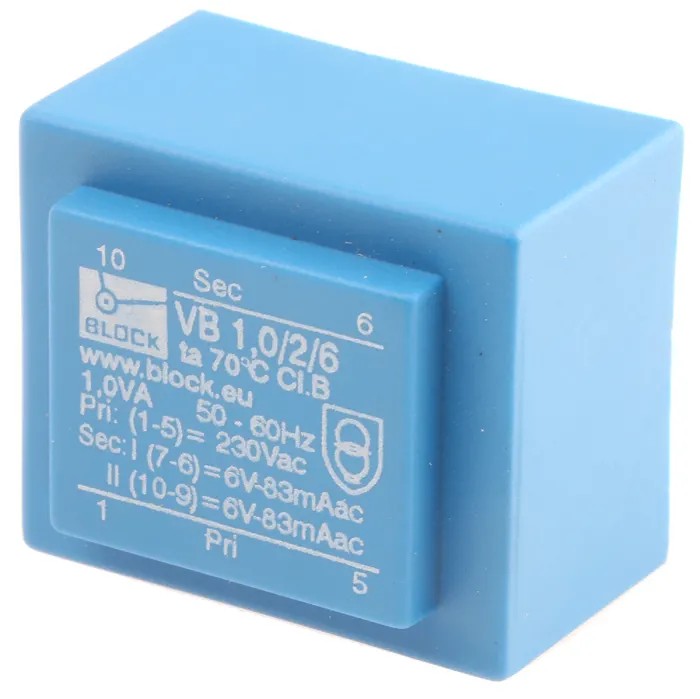

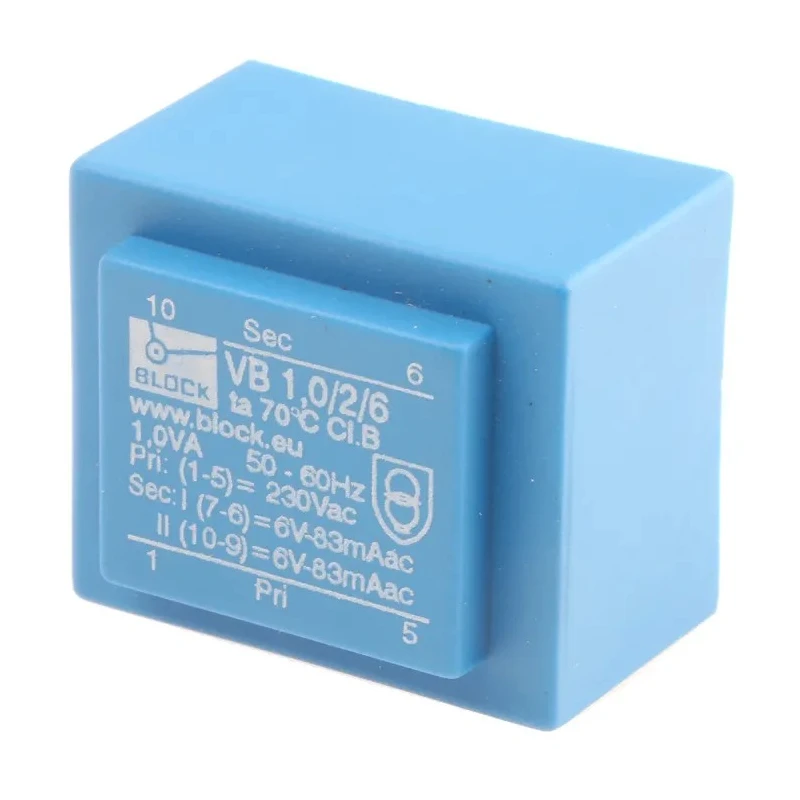

Block 6 V AC 2 Output Solder PCB Transformer 1 VA, CSA 22.2, VDE 0570/EN 61558, EN 61558-2-1, EN 61558-2-6, UL 506 VB 1.0/2/6

Block VB 1.0/2/6 is a 6 V AC 2 output solder PCB transformer rated at 1 VA, engineered to meet CSA 22.2, VDE 0570/EN 61558, EN 61558-2-1, EN 61558-2-6, and UL 506 safety standards. This transformer is designed for electronic components, power supplies, and transformer applications where compactness and safety compliance are critical.

Its compact dimensions of 32.3mm length, 21.8mm width, and 27.3mm depth facilitate space-saving PCB mounting with solder pins. The transformer supports two secondary windings, which can be connected in series or parallel, although certain voltage output combinations should not be connected in series to maintain compliance with VDE standards.

The VB series transformers are inherently short circuit proof for ratings between 0.35 and 3.2 VA, with robust construction featuring vacuum epoxy resin moulding rated to UL94-V0 for flame resistance and double section glass fiber reinforced polyamide bobbins for mechanical stability. The device offers a high isolation voltage of 5000 V, ensuring electrical insulation between primary and secondary circuits.

The transformer operates efficiently at a primary voltage of 230 V AC at a frequency range of 50 to 60 Hz and can withstand operating temperatures up to 70°C. It delivers low inter-winding capacitance and reduced radiated noise, beneficial for sensitive electronic applications.

Additionally, the product includes extra fixing holes for secure mounting on PCBs, enhancing mechanical stability during operation. The transformer undergoes 100% electrical and flash testing ensuring reliability and quality adherence.

This PCB Transformer is suitable for use in industrial, laboratory, manufacturing, and consumer electronic equipment requiring regulated low voltage AC power. It is manufactured in Germany to high quality standards.

Compact size and reliable PCB mounting. Robust, short circuit proof design. Multiple international safety approvals. Low noise and high efficiency operation. High isolation voltage for safety. Durable epoxy resin moulding and reinforced bobbins.
