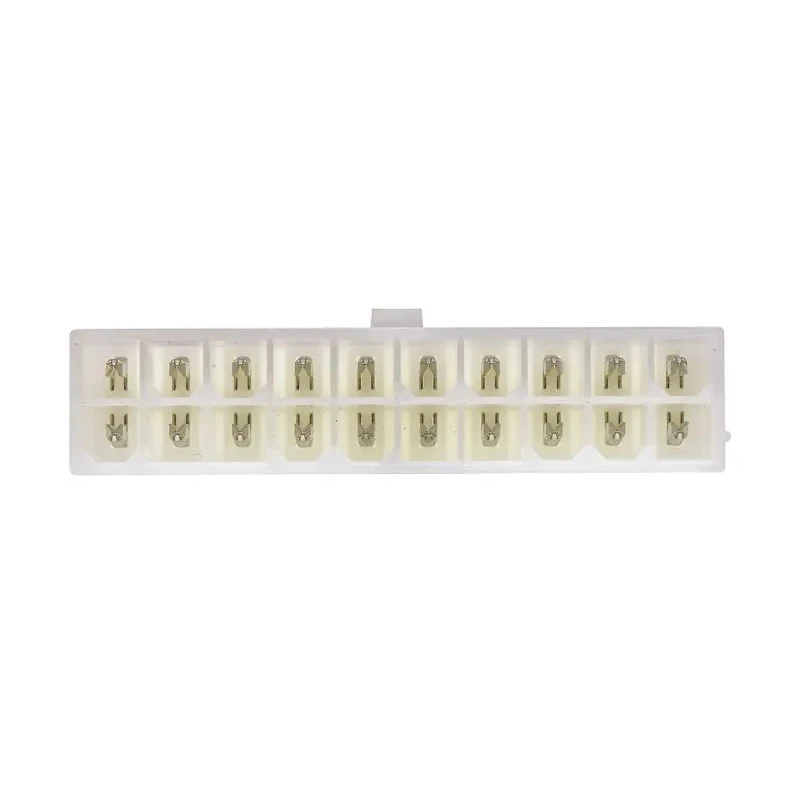

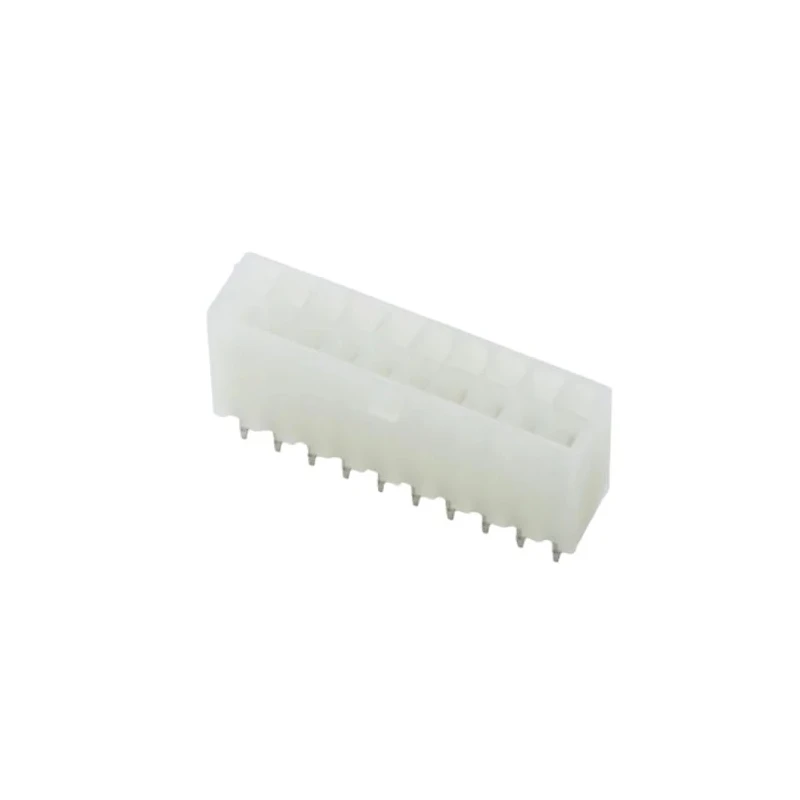

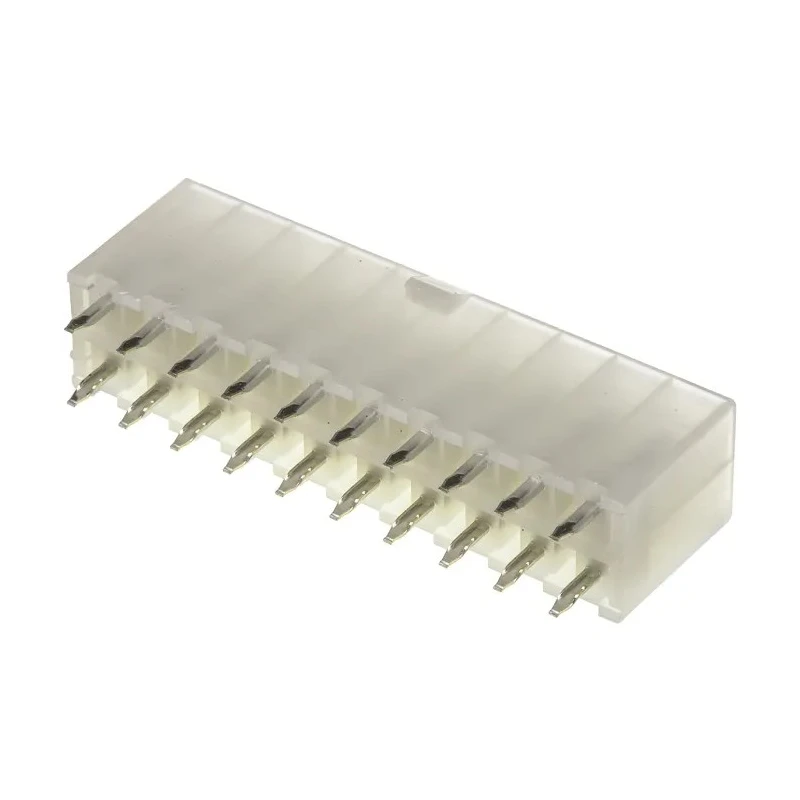

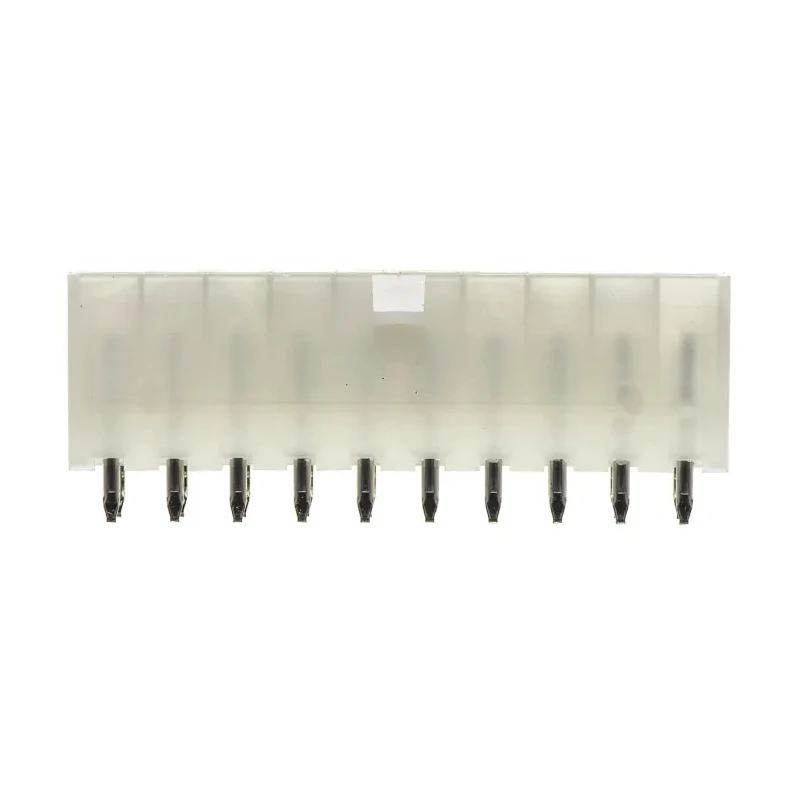

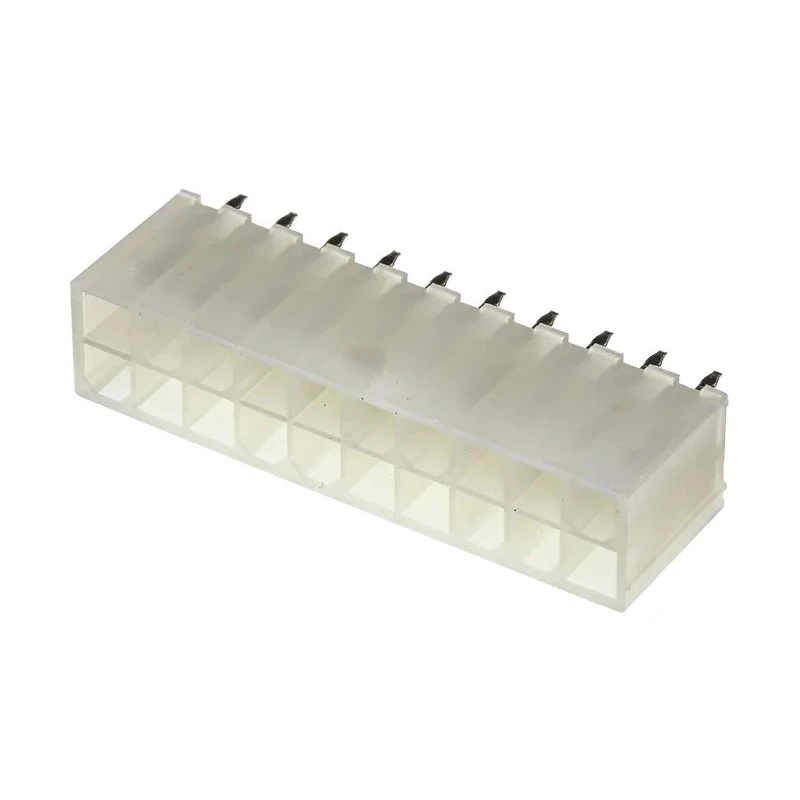

Molex Mini-Fit Jr Series Vertical Through Hole PCB Header 20 Contacts 4.2mm Pitch 9A Current Rating 39-28-1203
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Vertical |
| Current | 9A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Tin |
| Number of Contacts | 20 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Features a vertical orientation with shrouded design for secure electrical connections.
- Constructed from nylon housing with brass contacts plated in tin for durability.
- Designed for through hole mounting and solder termination on PCBs.
- Operates reliably within -40°C to 105°C temperature range.
- Supports up to 30 mating cycles ensuring long-term usability.
- Rated for 600 V voltage making it suitable for power and wire-to-board applications.
- Tail pin length of 3.5 mm optimizes soldering and mechanical stability.
- Compatible with standard Mini-Fit female terminals for ease of assembly.
Product Description
Molex 39-28-1203 Mini-Fit Jr Series Vertical Through Hole PCB Header features 20 male contacts with a 4.2 mm pitch and is rated for 9A current carrying capacity. This shrouded header ensures secure connections and is constructed with a nylon housing and brass contacts plated in tin, providing robustness and durability for various electronics and automation applications.
The header is designed for wire-to-board connector systems with a vertical orientation and through hole mounting style, optimized for wave soldering assembly processes with a tail pin length of 3.5 mm. Operating temperature ranges from -40°C up to 105°C, making it suitable for diverse environmental conditions.
This PCB header supports up to 30 reliable mating cycles, delivering longevity in demanding use cases. It is ideal for use with standard Mini-Fit female terminals and is compatible with PCB thicknesses around 1.60 mm, ensuring optimal retention and functionality. Rated for a maximum voltage of 600V and current of 9A, it is appropriate for power and signal applications in electronic assembly.
Vertical orientation, shrouded design ensures secure mating and space efficiency. Durable nylon housing and brass, tin-plated contacts resist corrosion and wear. Through hole mount for strong mechanical and electrical integrity.
Wide operating temperature range suitable for industrial environments. Supports wave soldering processes with max soldering temp of 260°C. Designed for ease of assembly with standard Mini-Fit female connectors. Applications include automation, consumer electronics, and mechanical assemblies.
Supports up to 30 mating cycles for extended use.
This product is an essential component in power connector and PCB Header categories, suitable for electronics manufacturing, industrial automation, and repair applications. Browse the Electronics Components category on EnvMart for more high-quality PCB connectors and related products.
