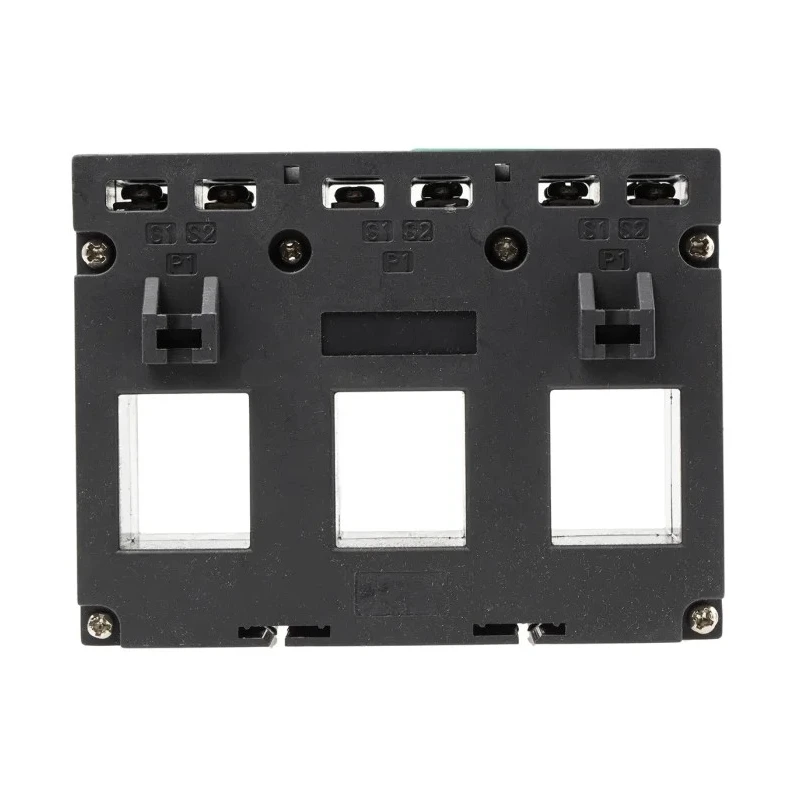

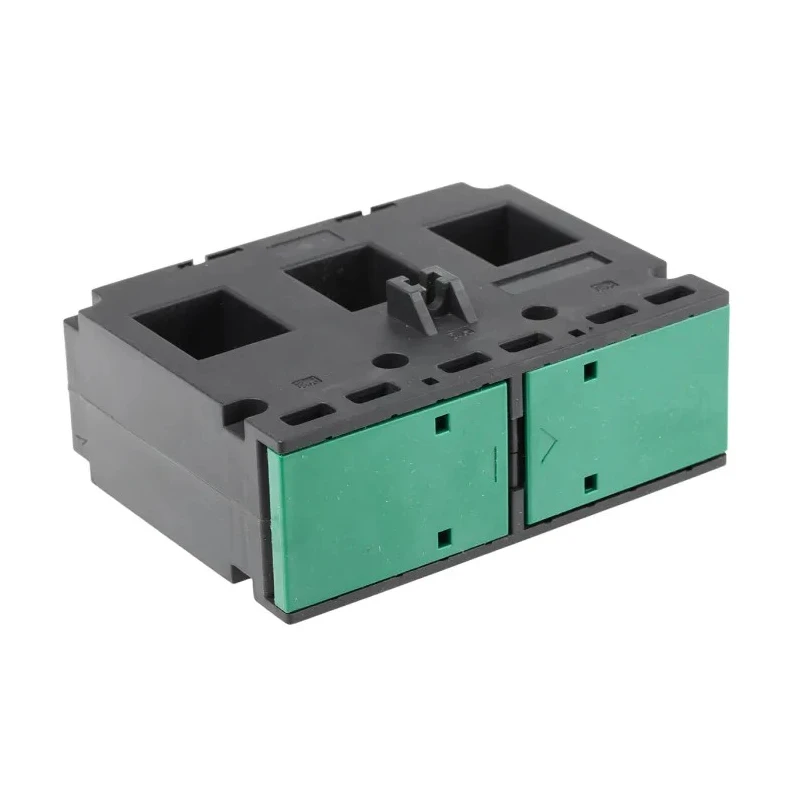

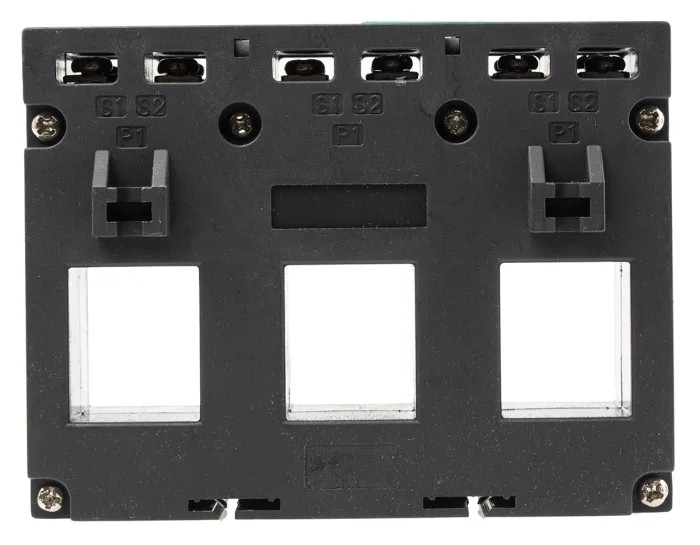

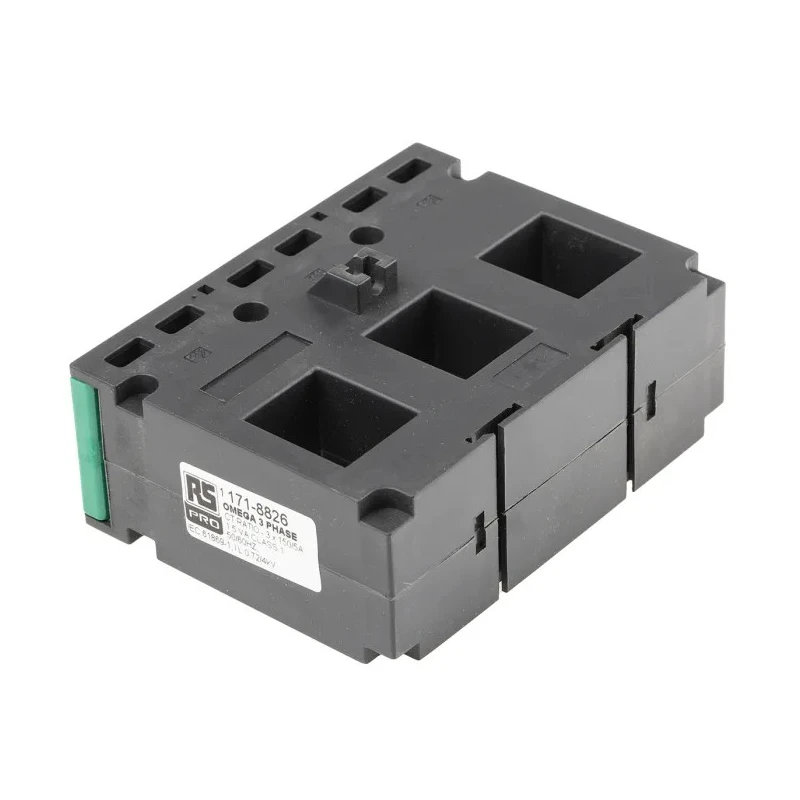

RS PRO LCT Series Current Transformer 150 A 35mm Bore 171-8826
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Model | 171-8826 |
| Depth | 38mm |
| Width | 105mm |
| Mount Type | Busbar, Wall, Cable |
| Series | LCT |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -5°C |
| Bore Diameter | 35mm |
| Secondary current | 1, 5A |
| Terminal type | Sealable Terminal Cover |
| Primary Current | 150A |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| Siemens 7KT12 Series Current Transformer 150 A 30 | 1 13mm BoreBrand: Siemens |
| HOBUT CT105 Series Base Mounted Current Transformer, 150 | 5, 21mm BoreBrand: HOBUT |
Key Features
- Designed for three-phase measuring applications with primary current range of 60A to 630A.
- Features wire sealable terminal covers for secure connections.
- Compatible with MCCBs from various manufacturers including ABB and Schneider.
- Mounting options include DIN rail, busbar, wall, or cable installation.
- Constructed with a self-extinguishing case material with UL94V-0 classification.
- Operates effectively within temperature range of -5°C to 55°C and frequency range 50Hz to 60Hz.
- Compact design optimizes installation speed and space.
- Secondary current options include 1A and 5A for flexible application.
Product Description
RS PRO 171-8826 LCT Series Current Transformer is engineered for precise electrical current measurement in industrial and commercial three-phase systems. With a nominal primary current of 150 A and a 35mm bore diameter, it facilitates straightforward integration with moulded case circuit breakers (MCCB) for fast and space-saving installations.
This current transformer supports a primary current range starting at 60A up to 630A with secondary current outputs of 1 A and 5 A. It is equipped with wire sealable terminal covers to enhance connection security, making it suitable for process control and automation applications.
Featuring multiple mounting options such as DIN rail, busbar, wall, or cable fixings, the transformer adapts well to various installation environments. Its case material complies with UL94V-0 for self-extinguishing properties, ensuring safety in demanding electrical setups.
Operating reliably in ambient temperatures from -5°C to 55°C and frequency ranges of 50Hz to 60Hz, this product conforms to IEC 60044-1, IEC 61010-2, and IEC 61869-1 standards, underscoring its quality and performance assurance.
Three-phase measuring current transformer suitable for a wide primary current range. Wire sealable terminal covers for secure and tamper-proof connections. Compatible with notable MCCB brands like ABB, Schneider, and Hager.
Flexible mounting options including busbar, wall, and cable installations. Self-extinguishing case material enhances fire resistance and durability. Compliant with international standards for safety and performance.
This RS PRO current transformer is ideal for industrial control systems, electrical testing, and monitoring applications, ensuring precise current measurement and system protection. Explore EnvMart’s extensive catalog for related Current Transformers and industrial automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The primary current range of this model is from 60A to 630A, with a nominal primary current of 150A.
This current transformer offers secondary current outputs of 1A and 5A for flexible application.
It supports multiple mounting options including DIN rail, busbar, wall, or cable installations.
The bore diameter of this current transformer is 35mm.
It operates effectively within a temperature range of -5°C to 55°C.
The maximum operating frequency is 60Hz, and the minimum operating frequency is 50Hz.
It is equipped with wire sealable terminal covers to enhance connection security.
It conforms to IEC 60044-1, IEC 61010-2, and IEC 61869-1 standards.
The country of origin for this model is China.
The dimensions are 105mm in width and 38mm in depth.
Yes, it is compatible with MCCBs from various manufacturers including ABB and Schneider.
This model belongs to the LCT Series of current transformers.
