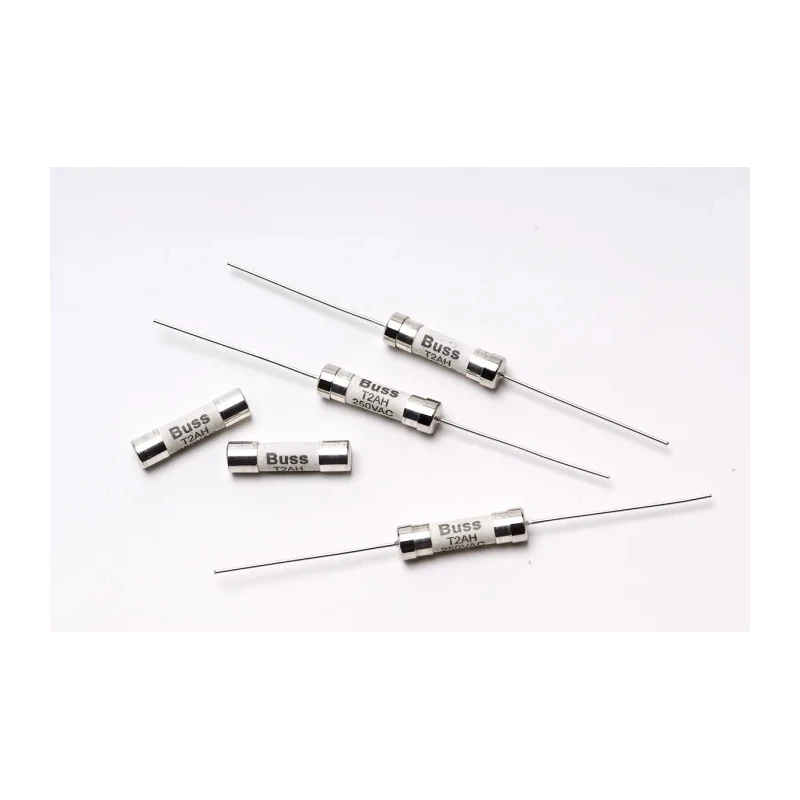

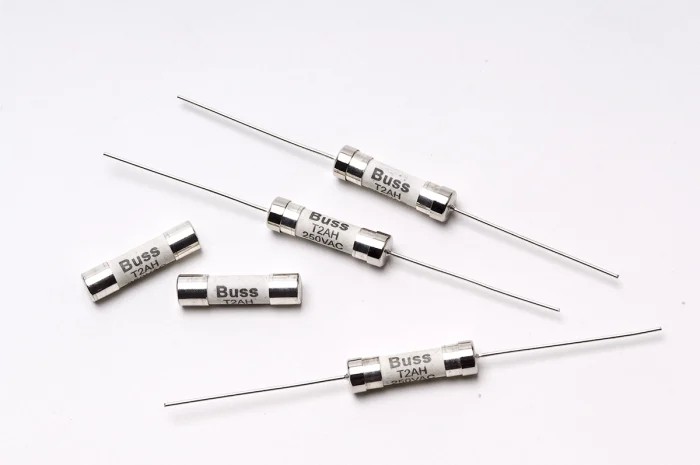

Eaton 500mA Time Delay Ceramic Cartridge Fuse 5 x 20 mm, 250V AC S505H-V-500-R
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V ac |
| Diameter | 5mm |
| Brand | Eaton |
| Body Material | Ceramic |
| Model | S505H-V-500-R |
| Overall Length | 20mm |
| Current Rating | 500mA |
| Series | S505H |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | cURus, IEC 60127-2, PSE, TUV, CCC |
| Fuse Characteristics | Time Delay |
| Fuse Size | 5 x 20 mm |
| Application Category | Time Delay |
Key Features
- 500mA current rating ensures precise low-current circuit protection.
- Time delay characteristic allows inrush currents without blowing.
- The ceramic body withstands high thermal stresses up to 125°C.
- 5 x 20 mm dimensions fit standard PCB holders and fuse clips.
- Operates reliably from -55°C to 125°C in harsh environments.
- Approvals include cURus, IEC 60127-2, PSE, TUV, and CCC standards.
- Ideal for power supply surge protection in control panels and automation.
Product Description
Eaton S505H-V-500-R is a 500mA time delay ceramic cartridge fuse designed for overcurrent protection in electronic and electrical equipment using AC power. Rated for 250V AC, this fuse offers reliable circuit protection with a slow-blow characteristic to tolerate short-duration surges and inrush currents without nuisance tripping, making it suitable for sensitive components.
The fuse features a robust ceramic body that maintains structural integrity under elevated temperatures up to 125°C and protects circuits effectively in demanding environments. Measuring 5 x 20 mm with an overall length of 20 mm, it fits standard fuse holders and PCB clips, ensuring easy integration into assemblies.
Certified to international standards such as cURus, IEC 60127-2, PSE, TUV, and CCC, this fuse complies with global interoperability requirements for industrial and commercial systems. It is well-suited for surge protection in control panels, safeguarding sensors, small actuators in automation systems, and electronic modules requiring time delay protection.
The fuse operates reliably in a temperature range from -55°C to +125°C, suitable for varying and harsh industrial conditions. Its slow-blow fuse characteristic helps prevent false trips caused by transient current spikes, protecting measurement equipment and signal conditioning devices effectively.
500mA current rating ensures precise low-current circuit protection. Time delay characteristic allows inrush currents without blowing. Ceramic body withstands high thermal stresses up to 125°C. Compact 5 x 20 mm size fits standard holders and clips.
Operates reliably from -55°C to +125°C ambient temperature. Approvals include cURus, IEC 60127-2, PSE, TUV, and CCC standards. Ideal for surge protection in control panels and automation equipment.
This Eaton cartridge fuse is an essential component for industrial, commercial, and electronic applications requiring dependable slow-blow fuse protection. Explore more Cartridge Fuses at EnvMart for comprehensive circuit protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Eaton S505H-V-500-R fuse has a current rating of 500mA, ensuring precise low-current circuit protection.
This fuse is rated for 250V AC, making it suitable for use in AC power applications.
The fuse measures 5 x 20 mm, which allows it to fit standard fuse holders and PCB clips.
The maximum operating temperature for the Eaton S505H-V-500-R fuse is 125°C, suitable for high thermal stress environments.
This fuse operates reliably in temperatures as low as -55°C, making it suitable for harsh environments.
The fuse is certified to several international standards including cURus, IEC 60127-2, PSE, TUV, and CCC.
This model features a time delay characteristic, allowing it to tolerate inrush currents without blowing.
The body of the S505H-V-500-R fuse is made from ceramic, which withstands high thermal stresses.
This fuse is ideal for surge protection in control panels and automation equipment, protecting sensitive components.
The time delay feature helps prevent false trips caused by transient current spikes, protecting measurement equipment effectively.
Yes, it operates reliably in harsh industrial conditions, with a wide temperature range from -55°C to +125°C.
This fuse belongs to the S505H series, which is designed for time delay applications.
