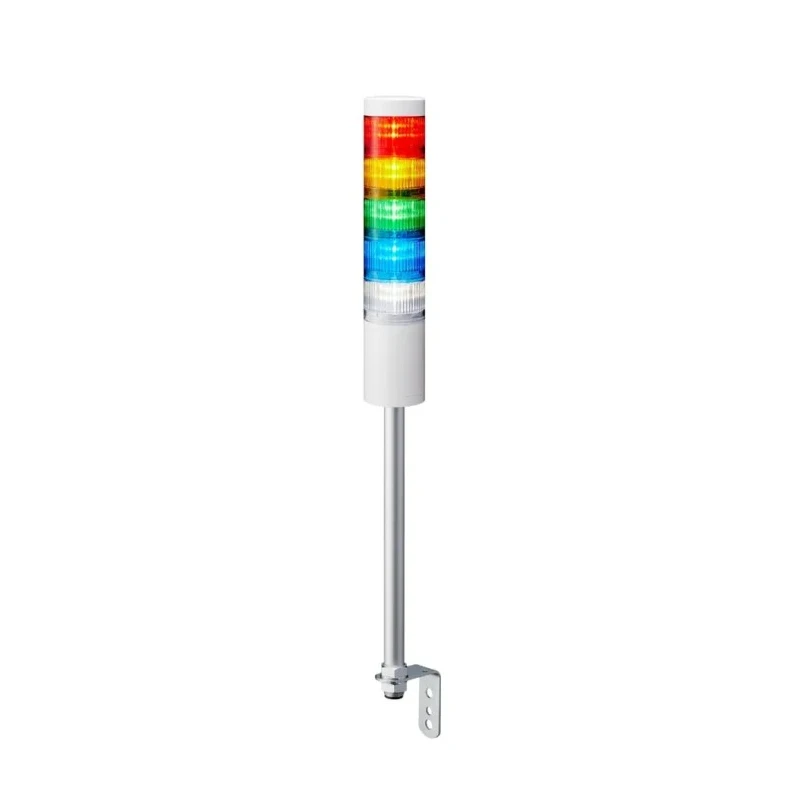

Patlite LR6 Series Clear, White, Blue, Red, Amber, Green Signal Tower Buzzer Unit 5 Lights 24V Pole Mount LR6-502LJNW-RYGBC
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Patlite |
| Height | 584mm |
| Model | LR6-502LJNW-RYGBC |
| IP Rating | IP54 |
| Mount Type | Pole Mount |
| Bulb Type | LED |
| Series | LR6 |
| Maximum Operating Temperature | 50°C |
| Current Type | DC |
| Minimum Operating Temperature | -20°C |
| Base Diameter | 60mm |
| Terminal type | Cable |
| Lens Colour | Clear, White, Blue, Red, Amber, Green |
| Standards/Approvals | UL 508, FCC Part 15 Subpart B Class A, UL Recognized Component (File No.E215660), KC (KN 61000-6-4,KN 61000-6-2), CSA-C22.2 No. 14, RoHS (EN 50581), EMC (EN 61000-6-4,EN 61000-6-2) |
| Maximum Supply Voltage | 24V |
| Housing Colour | Off-White |
| Light Effect | Flashing |
| Minimum Sound Level | 85dB |
| Sounder Type | Buzzer Unit |
| Sound Level at 1m | 88dB |
| Maximum Sound Level | 90dB |
| Number of Light Elements | 5 |
| Connection Cable Length | 1m |
| Multifunction | Yes, Yes |
Key Features
- Includes 5 distinct LED light elements for multi-color signaling.
- Equipped with a buzzer unit providing flashing light and audible alerts.
- Constructed with an off-white housing suitable for harsh industrial environments.
- Operates with a maximum supply voltage of 24V DC and cable terminal connection.
- Designed to operate between -20°C and 50°C for versatile application use.
- Features an IP54 protection rating to resist dust and water exposure.
- Compact dimensions with a height of 584mm and base diameter of 60mm.
- Complies with UL 508, FCC Part 15 Class A, CSA-C22.2 No. 14, KC, and RoHS standards.
Product Description
Patlite LR6-502LJNW-RYGBC Signal Tower Buzzer Unit is a 5-light LED signal tower designed for industrial automation and safety signaling applications. This model features a modular "twist and lock" system enabling easy customization and reconfiguration of the LED and buzzer modules. Equipped with red, amber, green, white, and blue LEDs housed in a clear lens configuration, it provides bright and even illumination with a 2000mcd light output for enhanced visibility in demanding environments.
The unit operates on a 24V DC supply voltage and includes a buzzer for audible alerts, making it suitable for alert systems needing both visual and sound signals. The pole mount design with a linear bracket and cable ensures stable installation on industrial equipment and control panels.
Constructed with an off-white, durable housing, the signal tower is IP54 rated, offering protection against dust and water ingress, suitable for harsh indoor and semi-outdoor environments. It operates reliably in a temperature range from -20°C to +50°C, maintaining performance under variable industrial conditions.
This model conforms to multiple international standards including UL 508, FCC Part 15 Subpart B Class A, KC (KN 61000-6-4/KN 61000-6-2), CSA-C22.2 No. 14, RoHS, and EMC directives, ensuring compliance with safety and electromagnetic compatibility requirements. Additionally, the buzzer sound level is rated at a minimum 85dB and maximum 90dB at 1 meter distance.
5 LED light elements with clear, white, blue, red, amber, and green lenses. Buzzer unit provides audible alerts with an omnidirectional sound output. IP54 enclosure protects against dust and splashing water. Operates on 24V DC with cable terminal connections.
Modular design allows easy maintenance and configuration. Suitable for industrial automation, manufacturing, HVAC, and safety signaling. Operating temperature range from -20°C to +50°C. Includes 1 meter connection cable for installation convenience.
Compact dimensions: 584mm height, 60mm base diameter.
Manufactured in Japan, this signal tower unit offers reliable performance and compliance with rigorous industrial standards. It is ideal for use in automation control systems requiring clear visual and audible indications. EnvMart provides this authentic Patlite LR6 series Signal Tower to support industrial safety and signaling needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 24V DC.
This unit has a height of 584mm and a base diameter of 60mm.
The signal tower has an IP54 protection rating, which means it is resistant to dust and splashing water.
It operates reliably in a temperature range from -20°C to +50°C.
This model features a pole mount design for stable installation.
It includes 5 light elements with clear, white, blue, red, amber, and green lenses.
The buzzer unit has a sound level rated at a maximum of 90dB at 1 meter distance.
It complies with UL 508, FCC Part 15 Subpart B Class A, KC, CSA-C22.2 No. 14, and RoHS standards.
The signal tower utilizes cable terminal connections for its installation.
It provides a light output of 2000mcd for enhanced visibility in demanding environments.
The buzzer provides audible alerts, making it suitable for systems needing both visual and sound signals.
Yes, it features a modular 'twist and lock' system that allows easy customization and reconfiguration of the LED and buzzer modules.
