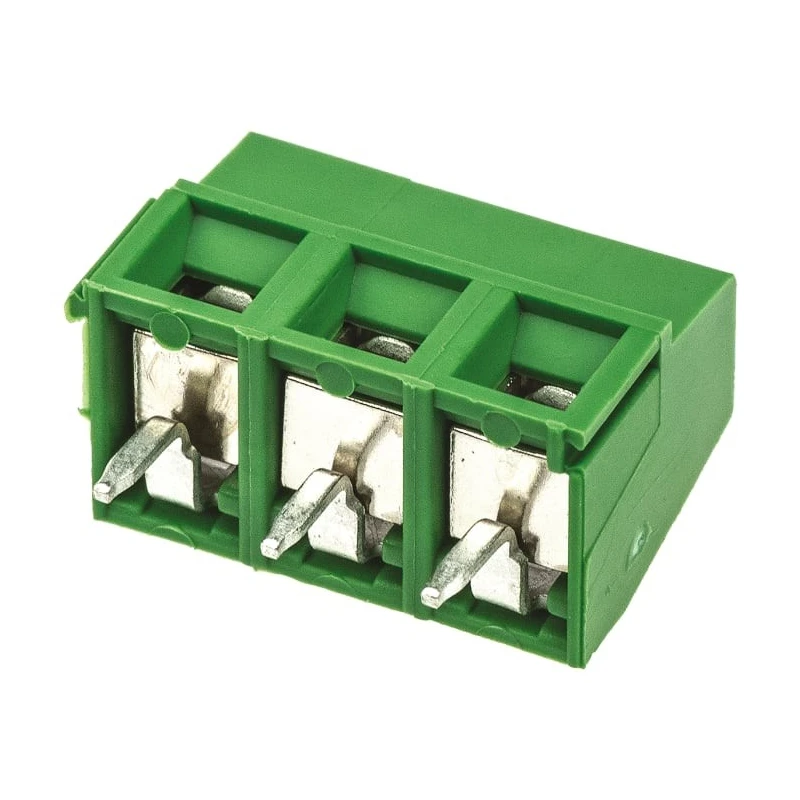

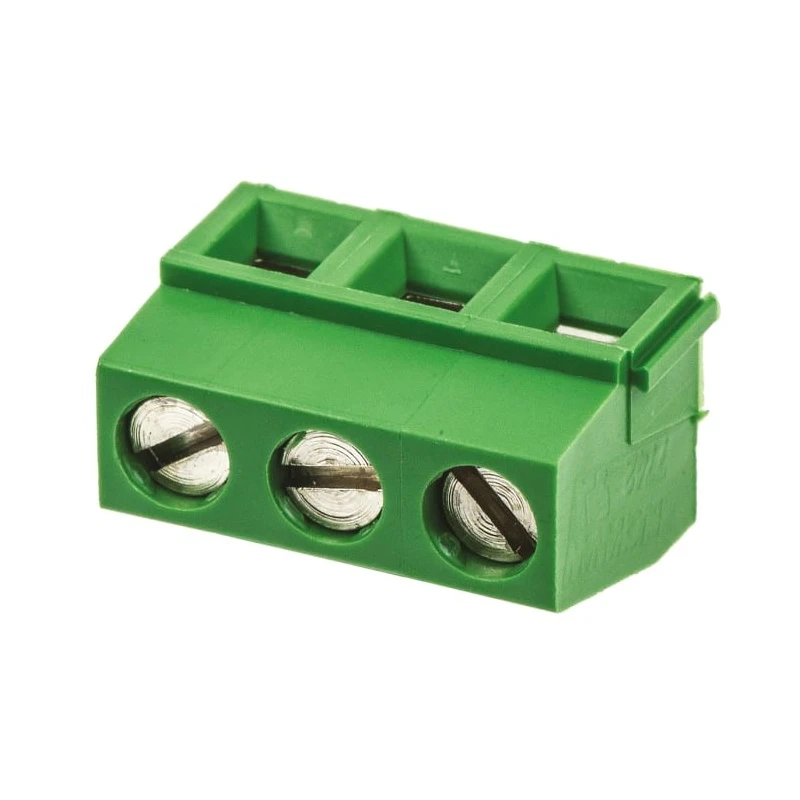

TE Connectivity Buchanan Series PCB Terminal Block 3-Contact 5 mm Pitch 1 Row 282836-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Straight |
| Current | 13.5A |
| Length | 15mm |
| Model | 282836-3 |
| Depth | 8.2mm |
| Width | 10mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 3 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 1.3mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 30AWG |
Key Features
- The terminal block features 3 contacts with a 5 mm pitch for efficient circuit connections.
- It has a single row configuration to optimize PCB layout space.
- Constructed with durable green polyamide housing for mechanical and thermal stability.
- Rated for 13.5A current and 300V AC voltage ensuring reliable electrical performance.
- Accepts wire sizes from 30 AWG to 16 AWG (0.05 to 1.3 mm²) with M3 screw clamp terminals.
- Designed with side wire entry and straight orientation for ease of wiring.
- Operating temperature range from -40°C to +110°C suitable for various industrial environments.
- Includes an interlocking feature allowing secure side stacking of multiple blocks.
Product Description
TE Connectivity 282836-3 PCB Terminal Block 3-Contact 5 mm Pitch 1 Row is engineered for secure and efficient printed circuit board connections. This low profile pluggable terminal block belongs to the Buchanan series and offers a pitch of 5.0 mm with a 3-contact single row design, making it ideal for compact PCB assemblies.
The connector housing is made from premium green polyamide 6.6 GF material, ensuring high mechanical strength and resistance to temperature variations from -40°C to +110°C. The M3 screw clamp terminals accommodate a wide wire size range from 30 AWG to 16 AWG (0.05 to 1.3 mm²), enabling flexible wiring options.
The terminal block has a rated current of 13.5 A and operates safely up to 300 V AC. Its straight orientation with side wire entry allows for easy and accessible installation. An interlocking feature facilitates secure stacking of terminal blocks, enhancing modularity and stability on the PCB.
This component is suitable for use in industrial, electronic manufacturing, control systems, and HVAC applications where durable and reliable PCB connections are required. The terminal block includes 3 contacts spaced at 5 mm pitch.
Durable polyamide housing provides robust insulation and mechanical protection. M3 screw clamp terminals allow secure wire retention and easy maintenance. Operating temperature range supports broad industrial conditions.
Interlocking design offers space-efficient and reliable terminal stacking. Color coded green housing enhances visual identification and safety. Meets UL File no. E60677 and CSA File no. LR7189 approvals.
Choose TE Connectivity Buchanan Series PCB Terminal Blocks for reliable, versatile, and industry-compliant PCB connectivity solutions. Explore related products in the Pluggable Terminal Blocks category on EnvMart for comprehensive electronic component sourcing.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a current of 13.5A and operates safely up to 300V AC.
It accepts wire sizes ranging from 30 AWG to 16 AWG, which corresponds to 0.05 mm² to 1.3 mm².
The dimensions of this unit are 15 mm in length, 10 mm in width, and 8.2 mm in depth.
The contacts in this terminal block are spaced at a pitch of 5 mm.
The housing is constructed from green polyamide, providing mechanical and thermal stability.
This terminal block operates effectively within a temperature range of -40°C to +110°C.
Yes, it includes an interlocking feature that allows for secure side stacking of multiple blocks.
It is designed with a straight orientation and side wire entry for ease of wiring.
This model features 3 contacts in a single row configuration.
It is suitable for use in industrial, electronic manufacturing, control systems, and HVAC applications.
It meets UL File no. E60677 and CSA File no. LR7189 approvals.
It uses M3 screw clamp terminals for secure wire retention and easy maintenance.
