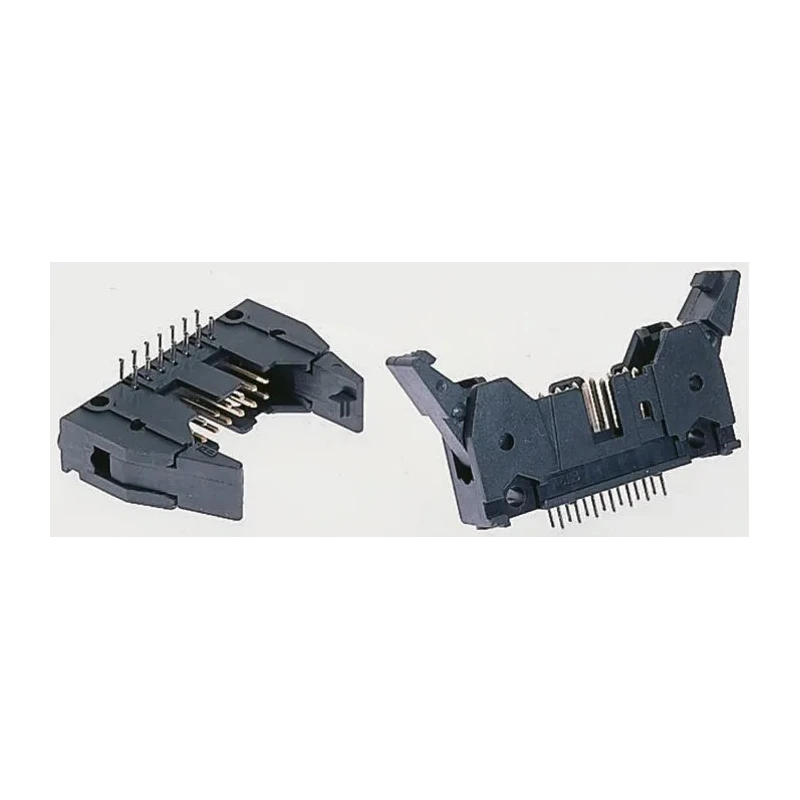

TE Connectivity AMP-LATCH Series Straight Through Hole PCB Header 34 Contacts 2.54 mm Pitch 2 Row Shrouded 5499922-8
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1A |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | AMP-LATCH |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 34 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.79mm |
Key Features
- Features a 2.54 x 2.54 mm centreline pitch for precise circuit board placement.
- Designed with 34 male contacts arranged in two rows for high-density connections.
- Made with thermoplastic housing material that ensures durability and heat resistance.
- Gold-plated brass contacts provide excellent conductivity and corrosion resistance.
- Supports a maximum operating temperature of 105°C and a minimum of -65°C.
- Ejector latches facilitate secure mating and easy removal from IDC ribbon cable connectors.
- Interface voltage rating of 250 V and a current rating of 1 A per contact.
- Through hole mounting ensures robust mechanical stability on PCBs.
Product Description
TE Connectivity 5499922-8 AMP-LATCH Series Straight Through Hole PCB Header offers a robust and secure wire-to-board connection solution designed for a wide variety of electronic applications. Featuring 34 male contacts arranged in two rows with a 2.54 mm pitch, this shrouded connector ensures precise placement and reliable electrical performance.
The connector housing is constructed from high-quality thermoplastic providing excellent durability and thermal stability, allowing it to operate safely between the temperatures of -65°C and 105°C. Its brass contacts are gold plated to guarantee superior conductivity and resistance to corrosion, making it ideal for demanding industrial environments.
This PCB Header supports a rated voltage of 250 V and a current of 1 A per contact, suitable for applications ranging from personal computers and business equipment to industrial controls and medical devices. The AMP-LATCH universal ejection style provides secure mating via ejector latches, facilitating ease of maintenance by enabling simple connection and disconnection.
The through-hole mounting method ensures strong mechanical fixation on printed circuit boards, improving longevity and reliability of the assembly. Its design includes military, center, and dual polarization features to prevent incorrect connections during installation. Versions are available with long or short latches for compatibility with IDC ribbon cable receptacle connectors, making this an adaptable choice for various wiring schemes.
Usage scenarios span storage devices, networking hardware, industrial instrumentation, appliances, and electrical testing equipment, underscoring its versatility in both commercial and industrial sectors.
Features a 2.54 x 2.54 mm pitch and dual row configuration. Durable thermoplastic housing and gold-plated brass contacts. Rated for 250 V and 1 A electrical performance. Operating temperature range from -65°C to 105°C. Secure connection with ejector latches and universal ejection style.
Through-hole mount for firm PCB attachment. Suitable for PCs, industrial controls, medical, networking, and electrical test equipment. Explore more high-quality PCB connectors and electronic components in the Electronics & Electricals section of EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a pitch of 2.54 mm, allowing for precise circuit board placement.
It has 34 male contacts arranged in two rows, designed for high-density connections.
The maximum operating temperature is 105°C, while the minimum is -65°C.
It utilizes through-hole mounting, ensuring robust mechanical stability on printed circuit boards.
The housing is made of thermoplastic, and the contacts are gold-plated brass, providing excellent conductivity and corrosion resistance.
It supports a voltage rating of 250 V and a current rating of 1 A per contact.
Yes, it includes ejector latches that facilitate secure mating and easy removal from IDC ribbon cable connectors.
The termination type is solder, which is standard for reliable electrical connections.
It is suitable for a variety of applications including personal computers, industrial controls, medical devices, and networking hardware.
The connector has a straight orientation, which is typical for PCB headers.
The tail pin length is 2.79 mm, which is suitable for through-hole mounting.
The country of origin for this PCB header is India.
