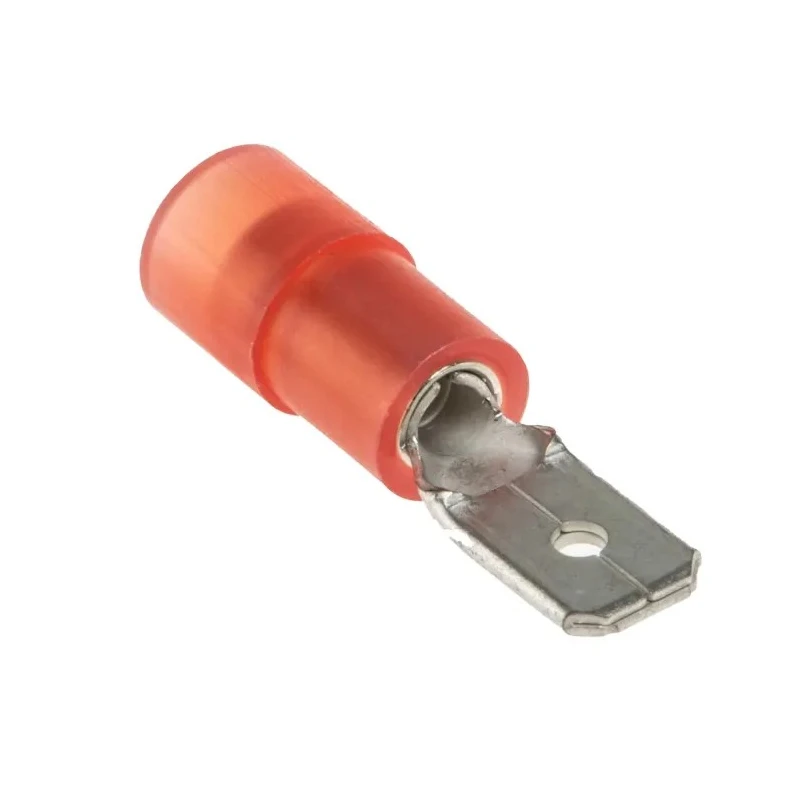

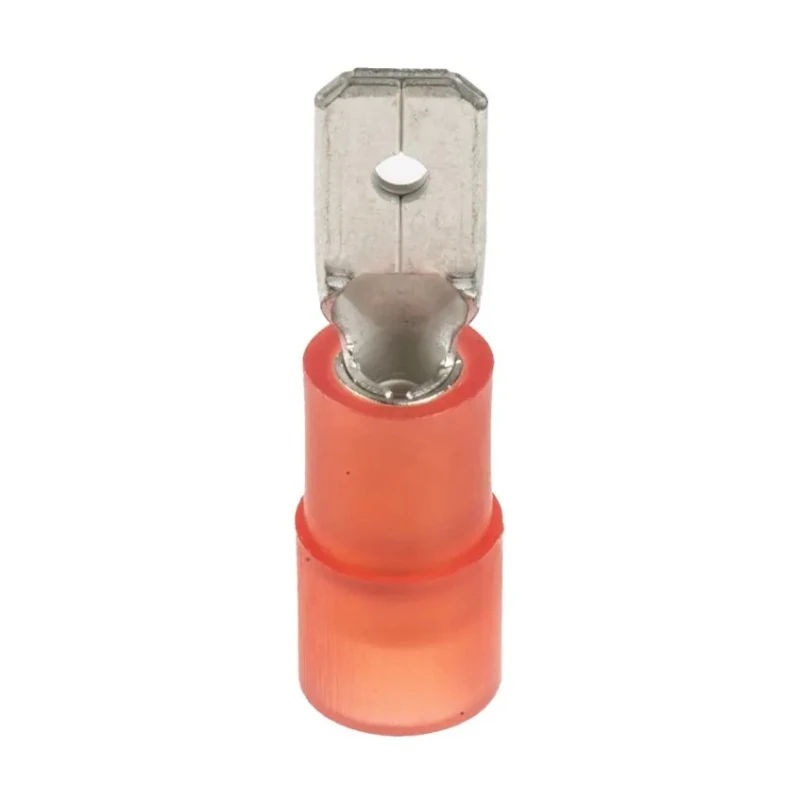

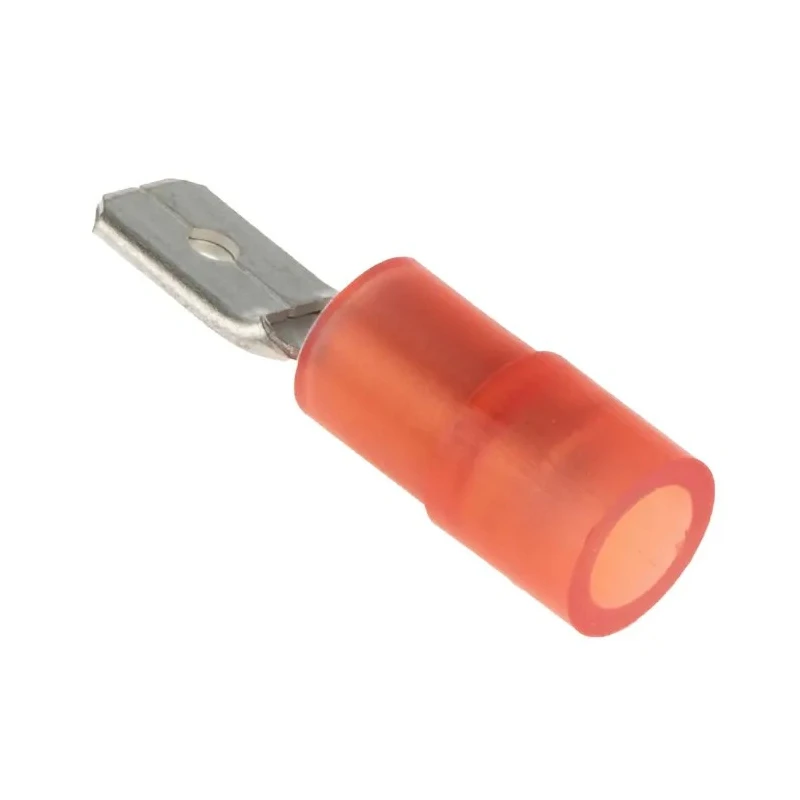

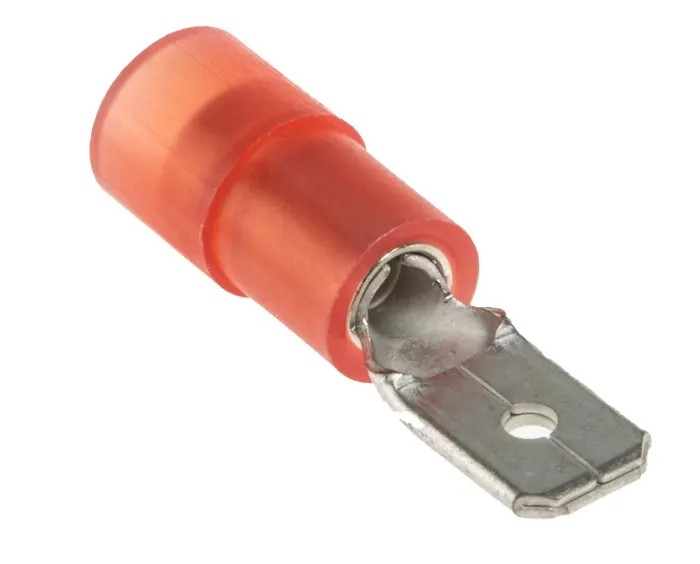

RS PRO Red Insulated Male Spade Connector, Crimp, 4.75 x 0.8 mm Tab Size, 22 AWG to 16 AWG, Nylon Insulated 267-4439

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Red Insulated Male Spade Connector, Crimp, 4.75 x 0.8 mm Tab Size, 22 AWG to 16 AWG, Nylon Insulated 267-4439

Name: RS PRO Red Insulated Male Spade Connector, Crimp, 4.75 x 0.8 mm Tab Size, 22 AWG to 16 AWG, Nylon Insulated 267-4439
Brand: RS PRO
SKU: 95397
Price: 0.09 USD
Availability: InStock



Category Spade Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Red
Orientation	Straight
Model	267-4439
Gender	Male
Insulation	Insulated
Overall Length	20mm
Contact Material	Copper, Brass
Series	RS PRO
Termination Type	Crimp
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Per Unit, RS stock no	267-4439
RS stock no	270-7606
Tab Width	4.8mm
Tab Thickness	0.8mm
Tab Size	4.75 x 0.8 mm

Key Features

Constructed with copper and brass contacts plated with tin for reliable conductivity.
Features red nylon insulation for safety and easy wire insertion.
Straight orientation for compatibility with standard spade receptacles.
Overall length of 20 mm supports compact wiring applications.
Ideal for use in automotive electronics and household appliances.
No soldering required, enabling quick and secure connections.
Offers mechanical strength through crimp termination method.

Product Description

RS PRO 267-4439 Red Insulated Male Spade Connector is a high-quality crimp type Spade Connector suitable for electrical wiring tasks. It accommodates wire sizes ranging from 0.5 mm² to 1.5 mm² (22 AWG to 16 AWG) and features a precise 4.75 x 0.8 mm tab size fitted for 4.75 mm receptacles. The connector incorporates copper and brass contacts with tin plating to ensure optimal electrical conductivity and corrosion resistance.

The red nylon insulation enhances safety by providing electrical insulation and an ergonomic flared design, allowing easier insertion of wires into the terminal. This straight orientation connector measures 20 mm in overall length, making it suitable for compact industrial and domestic wiring installations.

Its crimp termination eliminates the need for soldering, facilitating fast, reliable, and mechanically strong connections. Common applications include automotive electronics, dishwashers, washing machines, and other household appliances requiring dependable wire terminals.

Male connector with red nylon insulation. Crimp termination method with copper, brass, and tin-plated contacts. Wire size compatibility from 0.5 mm² to 1.5 mm² and 22 AWG to 16 AWG. Tab size of 4.75 x 0.8 mm and straight orientation.

Compact overall length of 20 mm for varied electrical applications.

Part of the RS PRO series, this connector meets quality and safety standards that engineers rely on worldwide. Suitable for industrial, automotive, and domestic electrical wiring use cases, it ensures quick and secure electrical connections without soldering.
