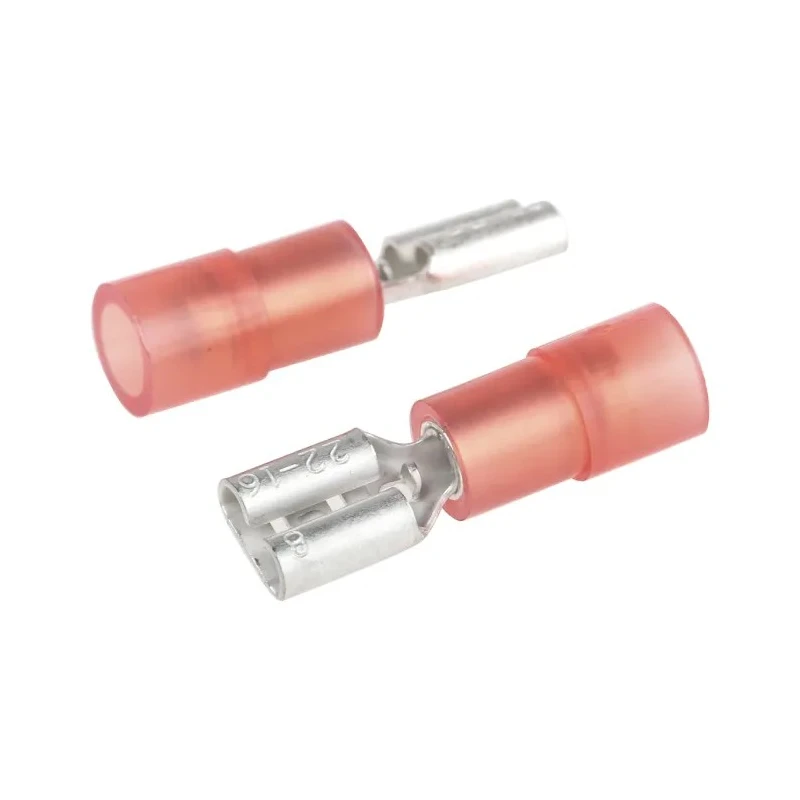

RS PRO Red Insulated Female Spade Connector Crimp 4.75 x 0.8 mm Tab Size 22 AWG to 16 AWG 267-4221

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Red Insulated Female Spade Connector Crimp 4.75 x 0.8 mm Tab Size 22 AWG to 16 AWG 267-4221

Name: RS PRO Red Insulated Female Spade Connector Crimp 4.75 x 0.8 mm Tab Size 22 AWG to 16 AWG 267-4221
Brand: RS PRO
SKU: 95393
Price: 0.09 USD
Availability: InStock



Category Spade Connector Brand RS PRO Condition New

Specifications

Country of Origin	Taiwan
Brand	RS PRO
Colour	Red
Orientation	Straight
Model	267-4221
Gender	Female
Insulation	Insulated
Overall Length	20mm
Contact Material	Brass, Copper
Series	RS PRO
Termination Type	Crimp
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	0.5mm²
Maximum Wire Size mm²	1.5mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	16AWG
Tab Width	4.75mm
Tab Thickness	0.8mm
Tab Size	4.75 x 0.8 mm

Key Features

Provides quick and secure connections with crimp termination.
Features insulated nylon housing to protect against electrical shock.
Supports wire sizes from 22 AWG to 16 AWG with colour-coded red insulation.
Constructed with tin-plated brass and copper contact material for corrosion resistance and conductivity.
Includes a double crimp design with an internal copper sleeve for added strength.
Straight orientation supports easy insertion and connection with male tab connectors.
Measures 20 mm overall length for compact applications.
Suitable for industrial, automotive, and consumer electrical applications.

Product Description

RS PRO 267-4221 is a red insulated female spade connector designed for crimp termination of electrical wires. It supports 22 AWG to 16 AWG wire sizes and features a 4.75 x 0.8 mm tab size, ensuring a precise and reliable fit with male tab connectors.

The connector body is constructed from tin-plated brass and copper, enhancing durability and conductivity. Its double crimp design includes an internal copper sleeve that strengthens the crimp joint and protects the wire from vibration and stress. The nylon insulation safeguards against electrical shock and environmental contaminants such as dirt, grease, and liquids. The red colour coding simplifies wire size identification and matching.

This female Spade Connector is widely used across various industries including industrial control systems, automotive electrical wiring, communication equipment, HVAC, and domestic appliances like washing machines and dishwashers. It provides fast, reliable connections that are easy to disconnect when necessary, making it ideal for maintenance and repair tasks.

Provides quick and secure connections with crimp termination. Features insulated nylon housing to protect against electrical shock. Supports wire sizes from 22 AWG to 16 AWG with colour-coded red insulation. Constructed with tin-plated brass and copper contact material for corrosion resistance and conductivity.

Includes a double crimp design with an internal copper sleeve for added strength. Straight orientation supports easy insertion and connection with male tab connectors. Measures 20 mm overall length for compact applications.

Suitable for industrial, automotive, and consumer electrical applications. Explore the RS PRO range on EnvMart for quality connectors and terminals suited for diverse electrical and industrial applications.
