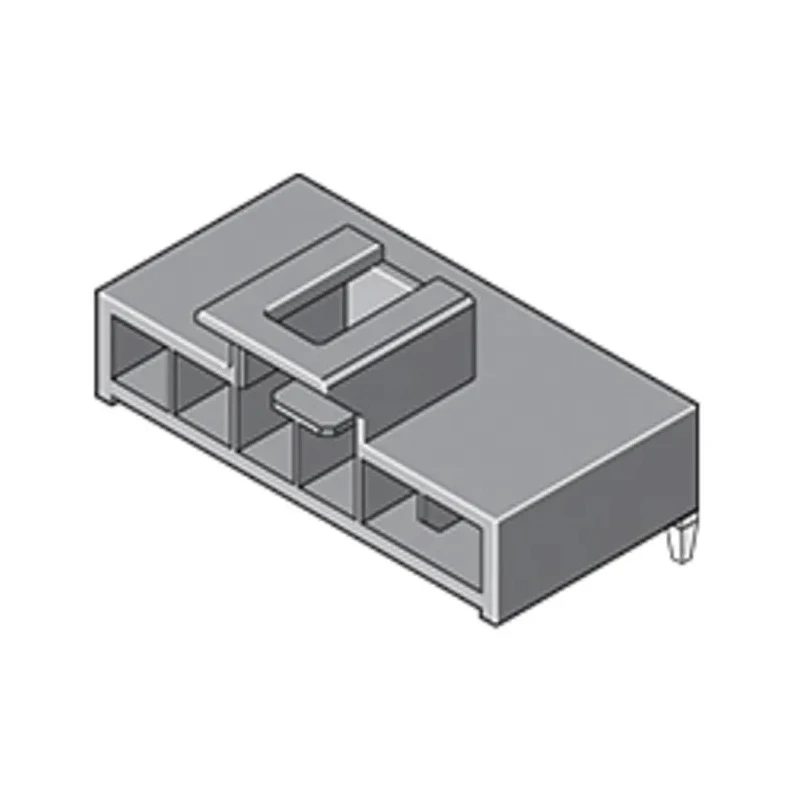

Molex Nano-Fit Series Right Angle Through Hole PCB Header 2 Contact 2.5 mm Pitch 1 Row Shrouded 105313-1102

The Molex 105313-1102 Nano-Fit Series Right Angle Through Hole PCB Header is a high-quality connector designed to provide reliable wire-to-board connection solutions in electronic manufacturing. Featuring a 2.5 mm pitch and single row configuration with 2 contacts, this shrouded header ensures compactness and high-density mounting capabilities.

This PCB header integrates ultra-low mate force terminals which reduce insertion force, enhancing assembly efficiency and longevity. Its positive-lock housing with an anti-snag design offers secure and stable connectivity, minimizing the risk of disconnections in demanding industrial applications.

Designed specifically for multi-layer PCB usage, it eliminates the need for through holes, enabling compact and flexible circuit board designs. Available in embossed tape packaging, this header is compatible with automated pick-and-place equipment, facilitating mass production in manufacturing environments.

The contact materials consist of brass with tin plating, balancing excellent electrical conductivity and corrosion resistance. With a solder termination and a tail pin length of 3.2 mm, it provides a robust mechanical and electrical interface suitable for various commercial and industrial electronic applications.

The header operates within a temperature range of -40°C to 105°C and can handle a current of up to 6.5 A at a voltage rating of 250 V. These features make it suitable for use in industrial electronics, telecommunications, instrumentation, and other precision electronic equipment.

Smallest fully isolated headers available in the market. Terminal design ensures ultra-low mate force for easy assembly. Positive-lock housing includes an anti-snag design. Supports use on multi-layer boards by eliminating the need for through holes.

Available in embossed tape packaging for efficient pick-and-place assembly. Offers multiple mechanical keying and color-coded options for application flexibility. Terminals feature tin plating on brass contacts for reliable conductivity.

Designed with retention tang and contact rib for enhanced connection stability. Terminal interface provides 4 points of contact to ensure secure electrical pathways. Operating temperature ranges from -40°C to 105°C allowing robust environmental tolerance.

This Molex PCB Header is an essential component in the assembly of electronic and electrical systems, providing a dependable and compact solution for wire-to-board connections. Explore similar advanced electronic components and connectors at EnvMart for all your industrial electronics needs.
