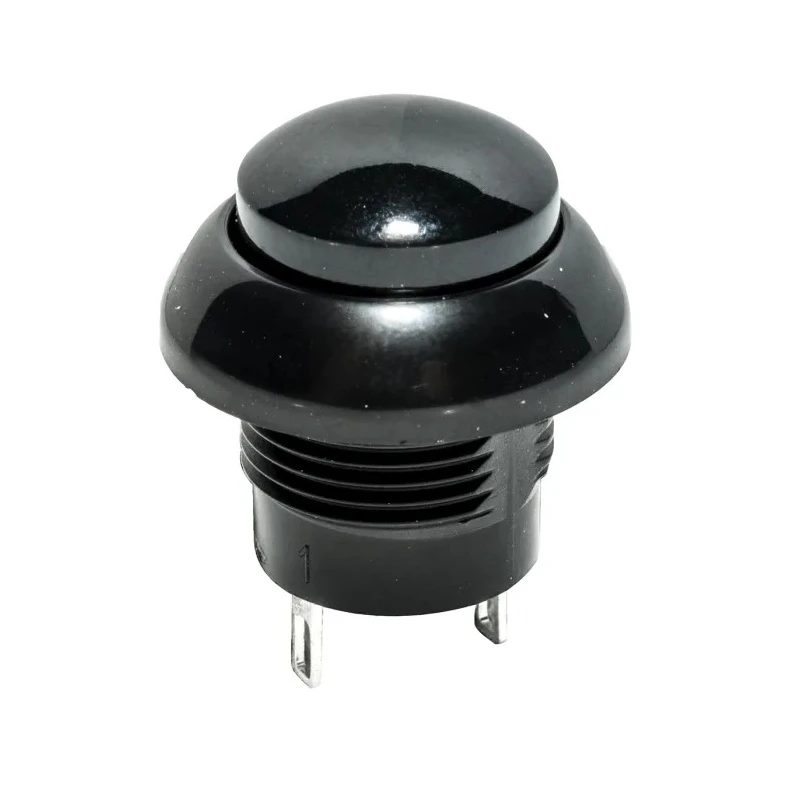

C & K PNP Series Push Button Switch Momentary Panel Mount SPST-NC IP68 32V DC PNP8E2D2W03QE
Specifications
| Country of Origin | China |
|---|---|
| Brand | C & K |
| Model | PNP8E2D2W03QE |
| IP Rating | IP68 |
| Mount Type | Panel |
| Series | PNP |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST-NC |
| Minimum Operating Temperature | -40°C |
| Panel Cutout Size | 12.3 mm |
| Terminal type | Solder |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Contact DC Voltage | 32V dc |
| Actuator Style | Round |
| Switch Contact Current | 5A |
Key Features
- Actuator color is black for clear visibility.
- Designed for momentary switch operation ensuring temporary contact closure.
- Non-illuminated push button for standard switching needs.
- Panel mount type with a precise 12.3 mm cutout size.
- IP68 rated for protection against dust and water immersion.
- Contact rating supports 5A current at 32 V DC.
- Terminal type is solder for reliable circuit connection.
- Operates in temperatures from -40°C to 85°C.
Product Description
The C & K PNP8E2D2W03QE is a high-quality push button switch designed for panel mounting applications requiring momentary contact. Featuring a SPST-NC (Single Pole Single Throw - Normally Closed) contact configuration, this switch provides reliable on-demand circuit interruption or activation within electrical control systems.
With a compact 12.3 mm panel cutout size, this push button switch integrates seamlessly into control panels, industrial instruments, and automation devices. The actuator is color black with a round style enhancing ergonomic operation in harsh environments.
Engineered to meet IP68 standards, it offers excellent sealing against dust and water immersion, making it ideal for off-road panels, agricultural machinery, and heavy equipment exposed to tough conditions. The switch supports a DC contact voltage of 32V with a contact current rating of 5A, suitable for low voltage control circuits.
Its solder terminal type allows easy and robust installation onto circuit boards and wiring harnesses. The wide operating temperature range from -40°C to 85°C ensures reliable functionality in extreme climates or industrial setups.
Actuator color is black for clear visibility. Designed for momentary switch operation ensuring temporary contact closure. Non-illuminated push button for standard switching needs. Panel mount type with a precise 12.3 mm cutout size.
IP68 rated for protection against dust and water immersion. Contact rating supports 5A current at 32 V DC. Terminal type is solder for reliable circuit connection. Operates in temperatures from -40°C to 85°C. Complies with RoHS standards for environmental compliance.
Typical applications include control grips, off-road vehicle panels, industrial instrumentation, heavy machinery controls, and lift panels where dependable momentary actuation is essential.
C & K push buttons are renowned for their durability and innovative design over decades, catering to demanding industrial and electrical switching needs. Explore the full range of Push Button Switches and components at EnvMart for robust and high-performance panel mounting solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It features a SPST-NC (Single Pole Single Throw - Normally Closed) contact configuration, allowing for reliable circuit interruption or activation.
The maximum operating temperature is 85°C, making it suitable for various industrial applications.
This push button switch has an IP68 rating, providing excellent protection against dust and water immersion.
The required panel cutout size for this switch is 12.3 mm, ensuring a precise fit in control panels.
It operates within a temperature range of -40°C to 85°C, allowing for reliable functionality in extreme environments.
The contact current rating supports up to 5A, suitable for low voltage control circuits at 32V DC.
It uses solder terminals, which allow for easy and robust installation onto circuit boards and wiring harnesses.
The actuator is black, providing clear visibility for operation in various conditions.
It complies with RoHS standards for environmental compliance, ensuring it meets necessary regulations.
This model is designed for momentary operation, ensuring temporary contact closure when activated.
Typical applications include control grips, off-road vehicle panels, industrial instrumentation, and heavy machinery controls.
This switch belongs to the PNP series, which is known for its innovative design and durability in industrial settings.
