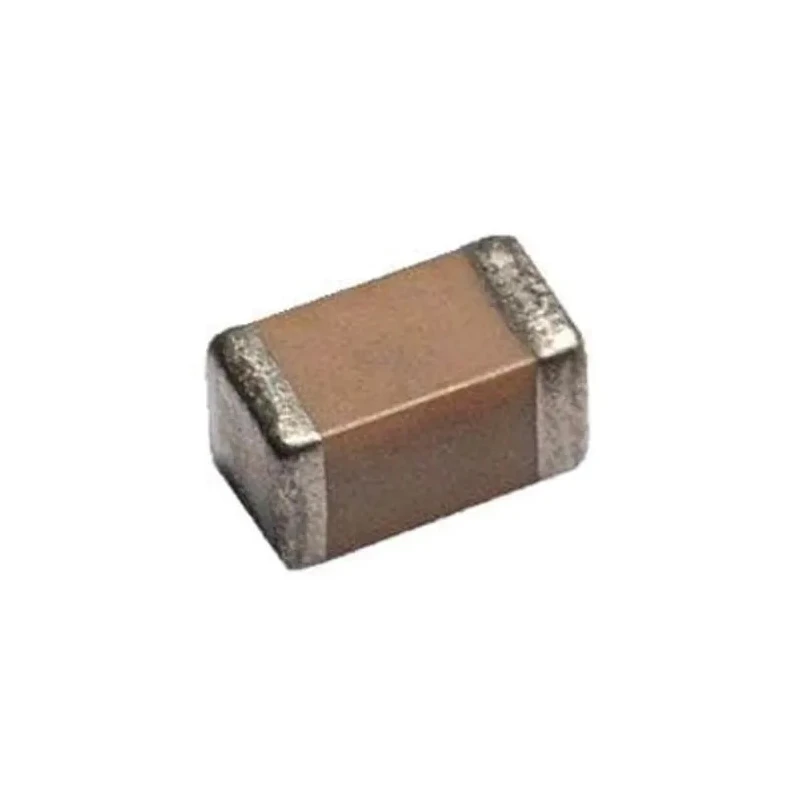

KYOCERA AVX 22 nF 16V dc ±5 % X7R Multilayer Ceramic Capacitor Surface Mount 0402 0402YC223JAT2A

KYOCERA AVX 0402YC223JAT2A is a high-quality multilayer ceramic capacitor (MLCC) designed for surface mount applications, featuring a capacitance of 22 nF and a voltage rating of 16 volts DC. This capacitor uses the X7R dielectric offering excellent temperature stability, operational from -55°C up to 125°C, making it suitable for demanding industrial and electronic environments.

The device is packaged in the compact 0402 size, measuring 1 mm in length, 0.5 mm in width, and 0.56 mm in height. Its surface-mount termination allows for easy integration into modern PCB assembly processes, especially for automated reel-to-reel manufacturing.

Class II suppression and ±5 % tolerance ensures precise electrical performance ideal for decoupling, filtering, and signal integrity applications in communication, automotive electronics (non-automotive standard), consumer electronics, and various industrial systems.

The nickel barrier terminations are covered with plated tin (NiSn), providing reliable solderability and connection durability. Capacitance of 22 nF with ±5 % tolerance. Rated for 16 volts DC working voltage. X7R dielectric material guarantees minimal capacitance shift with temperature.

Compact 0402 size for space-saving applications. Surface mount termination for efficient PCB assembly. Suitable temperature range from -55°C to 125°C. Packaged in reel form for ease of use in automated production lines. KGM series capacitors known for stable electrical characteristics.

This Multilayer Ceramic Capacitor is ideal for use in electronics manufacturing, communications equipment, consumer devices, and general electronic circuits requiring a reliable and precise capacitor solution.
