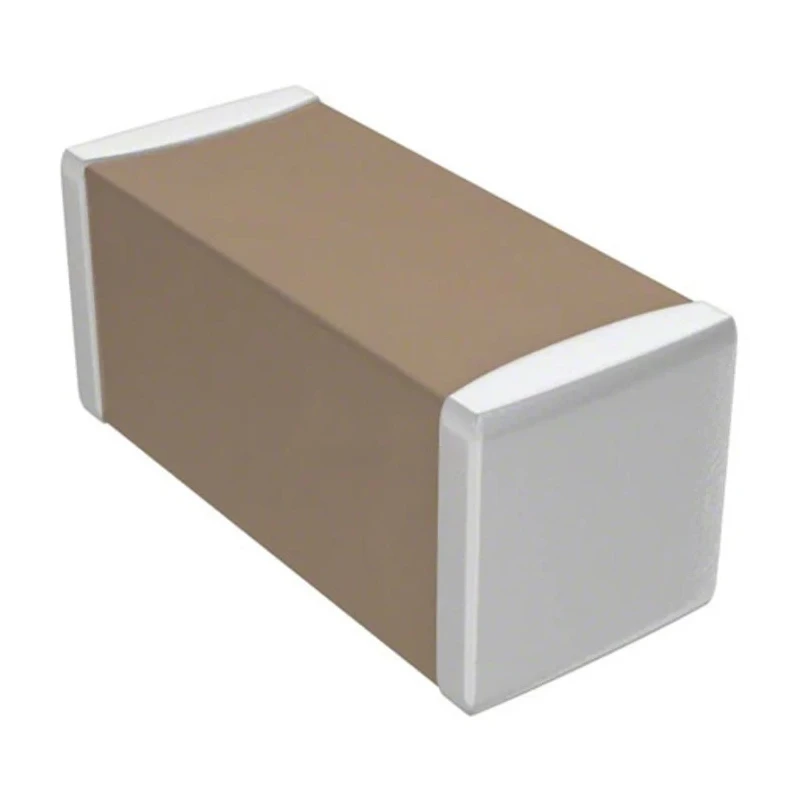

KYOCERA AVX 10 nF Multilayer Ceramic Capacitor, 1kV dc, ±10 %, Surface Mount FLEXITERM Series 1808AC103KAT1A

KYOCERA AVX 1808AC103KAT1A is a high quality 10 nF multilayer ceramic capacitor designed for surface mount applications. It has a rated voltage of 1kV DC and a tolerance of ±10 %, making it suitable for precision circuit requirements. The 1808 package size allows for compact mounting on PCBs where space-saving is critical.

This capacitor uses X7R dielectric material, providing good temperature stability from -55°C to 125°C, which is typical for industrial and commercial electronics applications. The FLEXITERM series termination type improves solder joint reliability and durability under thermal stress.

Its low equivalent series resistance (ESR) and stable capacitance over temperature and voltage variations make it perfect for applications such as snubbers in high frequency power convertors, resonators in switch-mode power supplies (SMPS), and high voltage coupling or DC blocking circuits.

Packaged on a reel, these capacitors are optimized for high volume automated surface mount assembly lines, enhancing manufacturing efficiency. Dimensions are precisely controlled at 2.2 mm height, 4.6 mm length, and 2 mm width, providing predictable and compact placement within designs.

This capacitor provides a compact 1808 package size suited for dense circuit boards. X7R dielectric ensures reliable temperature performance across a -55°C to 125°C range. FLEXITERM termination boosts solder joint reliability in surface mount assemblies.

Capacitance of 10 nF with ±10 % tolerance delivers precise filtering and snubber performance. Voltage rating of 1kV DC suits high-voltage industrial and commercial uses. Low ESR characteristic supports high frequency power and resonator applications.

Surface mount design enables automated and efficient PCB manufacturing.

These KYOCERA AVX Multilayer Ceramic Capacitors are widely utilized in industrial, laboratory, manufacturing, and electronic construction sectors. Their robust design and stable performance make them an excellent choice for reliable passive component implementations. Explore more electronic components and capacitors at EnvMart to suit various application needs.
