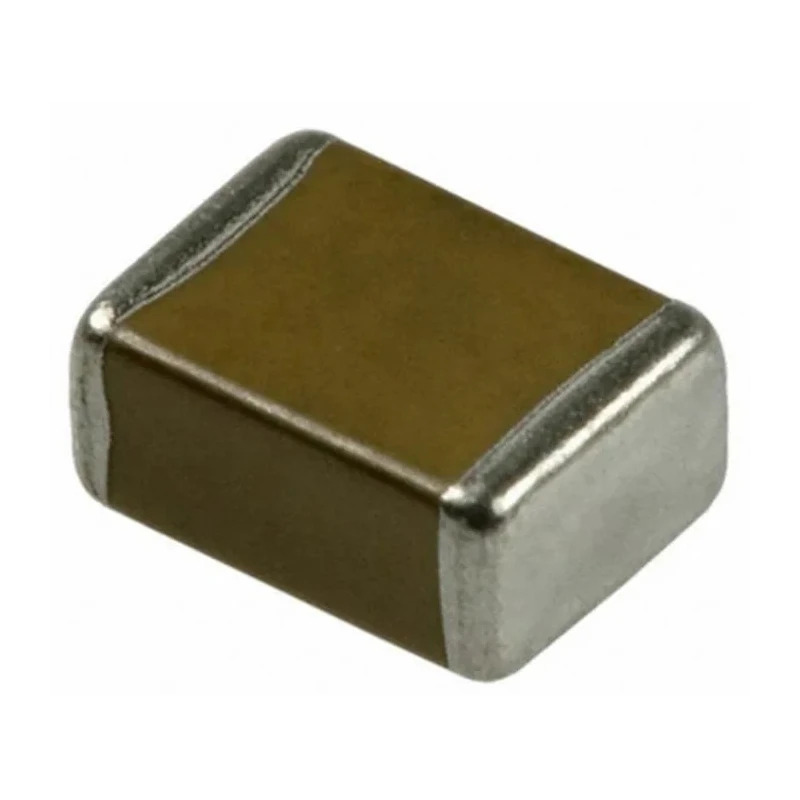

KYOCERA AVX 3.3 nF Multilayer Ceramic Capacitor 2kV dc ±10 % Surface Mount 1812 Package 1812GC332KAT2A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 2kV dc |
| Brand | KYOCERA AVX |
| Height | 2.8mm |
| Length | 4.5mm |
| Model | 1812GC332KAT2A |
| Packaging | Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | KGM |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±10 % |
| Capacitance | 3.3nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 1812 |
| Dielectric | X7R |
Key Features
- High voltage rating of 2kV dc suitable for demanding electrical circuits.
- Compact 1812 package size with dimensions 4.5mm length, 3.2mm width, and 2.8mm height.
- X7R dielectric material ensuring stable performance over temperature range.
- Wide operating temperature range from -55°C to 125°C for diverse environments.
- Low equivalent series resistance (ESR) ideal for high frequency power converters.
- Surface mount termination for easy PCB assembly.
- Capacitance tolerance of ±10 % for reliable circuit behavior.
- Packaged on reels for efficient automated placement in manufacturing.
Product Description
KYOCERA AVX 1812GC332KAT2A is a 3.3 nF Multilayer Ceramic Capacitor (MLCC) rated at 2kV dc with ±10 % tolerance, designed for surface mount technology (SMT) applications. It features an 1812 package size, with precise dimensions of 4.5mm length, 3.2mm width, and 2.8mm height, making it a compact solution for space-constrained electronics assemblies.
This capacitor utilizes X7R dielectric, providing excellent stability and performance across a wide temperature range from -55°C up to 125°C. It is particularly suitable for use in high voltage applications such as snubbers in power converters, resonators in switched-mode power supplies (SMPS), and high voltage coupling or DC blocking circuits.
The device exhibits low equivalent series resistance (ESR), assuring minimal energy loss at high frequencies. The surface mount termination type supports automated assembly processes, enhancing manufacturing efficiency.
High voltage rating of 2kV dc suitable for demanding electrical circuits. Compact 1812 package dimensions of 4.5mm x 3.2mm x 2.8mm. X7R dielectric for stable capacitance over temperature. Operating temperature range -55°C to 125°C for robust performance.
Low ESR ideal for high frequency power applications. Surface mount termination simplifies PCB assembly. ±10 % capacitance tolerance ensures reliable operation. Packaged on reels for automated manufacturing use. This component is essential for industrial, electronic manufacturing, and power electronics sectors requiring high voltage MLCCs with reliable thermal and electrical performance.
Explore our extensive range of capacitors and electronic components at EnvMart for diverse industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The KYOCERA AVX 3.3 nF Multilayer Ceramic Capacitor has a voltage rating of 2kV dc, making it suitable for demanding electrical circuits.
This model features a compact 1812 package size with dimensions of 4.5mm in length, 3.2mm in width, and 2.8mm in height.
The capacitance value of this capacitor is 3.3 nF.
This capacitor utilizes X7R dielectric material, which provides stable performance over a wide temperature range.
The operating temperature range for this capacitor is from -55°C to 125°C.
The capacitance tolerance of this model is ±10 %.
It is packaged on reels, which facilitates efficient automated placement in manufacturing processes.
This model features a surface mount termination type, which simplifies PCB assembly.
This capacitor exhibits low equivalent series resistance (ESR), which is ideal for high frequency power applications.
The country of origin for this capacitor is India.
This capacitor belongs to the KGM series.
This model is particularly suitable for high voltage applications such as snubbers in power converters and resonators in switched-mode power supplies.
