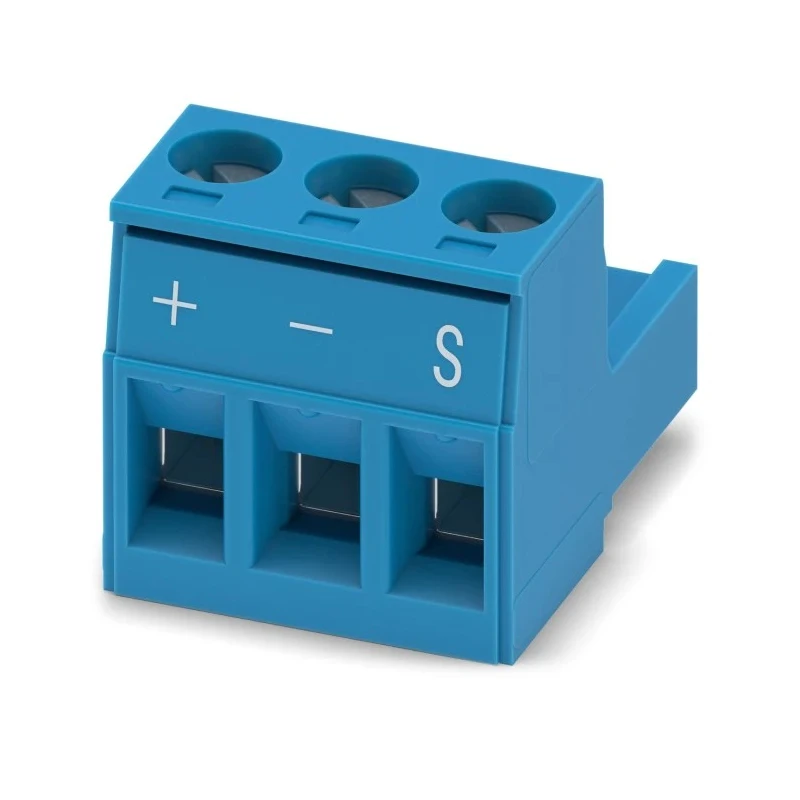

Phoenix Contact MSTB Series Pluggable Terminal Block, 3-Contact, 5.08 mm Pitch, 1 Row, Blue, Screw Connection, 1161197
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 320V |
| Brand | Phoenix Contact |
| Colour | Blue |
| Orientation | Straight |
| Current | 12A |
| Length | 12mm |
| Model | 1161197 |
| Depth | 14.5mm |
| Width | 16.24mm |
| Housing Material | Polyamide |
| Series | MSTB |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | IEC |
| Number of Contacts | 3 |
| Connector Gender | Female |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 2.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Screw |
Key Features
- MSTB Series pluggable terminal block designed for PCB mounting applications.
- Features 3 contacts with 5.08 mm pitch for efficient wire connection.
- Screw connection method enables secure and reliable installation.
- Rated for up to 12A current and 320V voltage operation.
- Polyamide housing material with blue color for identification.
- Supports wire sizes from 0.2mm² to 2.5mm² and AWG 24 to 12.
- Straight orientation for easy fitting in component layouts.
- Complies with IEC standards for performance and reliability.
Product Description
Phoenix Contact 1161197 MSTB Series Pluggable Terminal Block is engineered for robust PCB mounting in electronic and industrial control applications. The terminal block features 3 contacts in a single row configuration, providing reliable and versatile wire connection for a range of situations.
This model supports a 5.08 mm pitch, optimizing space and connectivity on circuit boards. The screw connection method allows secure wiring and easy maintenance, supporting wire sizes from 0.2mm² to 2.5mm² and AWG sizes 24 to 12.
MSTB Series Pluggable Terminal Block designed for PCB mounting applications. Features 3 contacts with 5.08 mm pitch for efficient wire connection. Screw connection method enables secure and reliable installation. Rated for up to 12A current and 320V voltage operation.
Polyamide housing material with blue color for identification. Supports wire sizes from 0.2mm² to 2.5mm² and AWG 24 to 12. Straight orientation for easy fitting in component layouts. Complies with IEC standards for performance and reliability.
The housing is crafted from quality polyamide and finished in blue, enhancing durability and component identification. The female connector gender and straight orientation simplify installation in dense PCB layouts. The product meets IEC standards for safety and performance and originates from Germany, ensuring world-class engineering.
This terminal block is suitable for industrial automation, power supplies, control systems, and many electronic assemblies where reliable PCB connections are required. It facilitates low temperature rise due to maximum contact force and allows connection of two conductors for flexible designs.
Used across manufacturing, automation, and commercial electronics sectors, the MSTB series provides consistent and safe connectivity for professional installations. Explore more Phoenix Contact connection solutions and PCB terminal blocks in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 12A.
It has a voltage rating of up to 320V.
It supports wire sizes from 0.2mm² to 2.5mm² and AWG sizes 24 to 12.
The contacts have a pitch of 5.08 mm, optimizing space and connectivity.
It utilizes a screw connection method for secure wiring.
The dimensions are 12mm in length, 14.5mm in depth, and 16.24mm in width.
It features a straight orientation, making it suitable for dense PCB layouts.
The housing is made from polyamide, which provides durability and identification.
It complies with IEC standards for safety and performance.
This model features 3 contacts in a single row configuration.
The terminal block is manufactured in Germany.
It is suitable for industrial automation, power supplies, control systems, and electronic assemblies.
