Schneider Electric Harmony XB4 Series Push Button Switch, Spring Return, Panel Mount, 22 mm Cutout, SPDT XB4BL73415

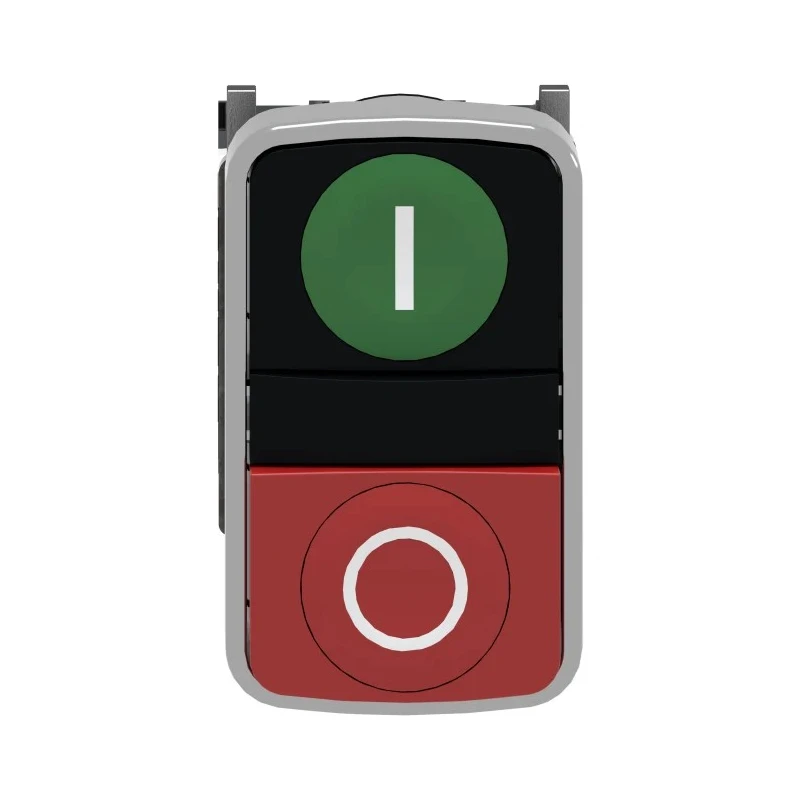

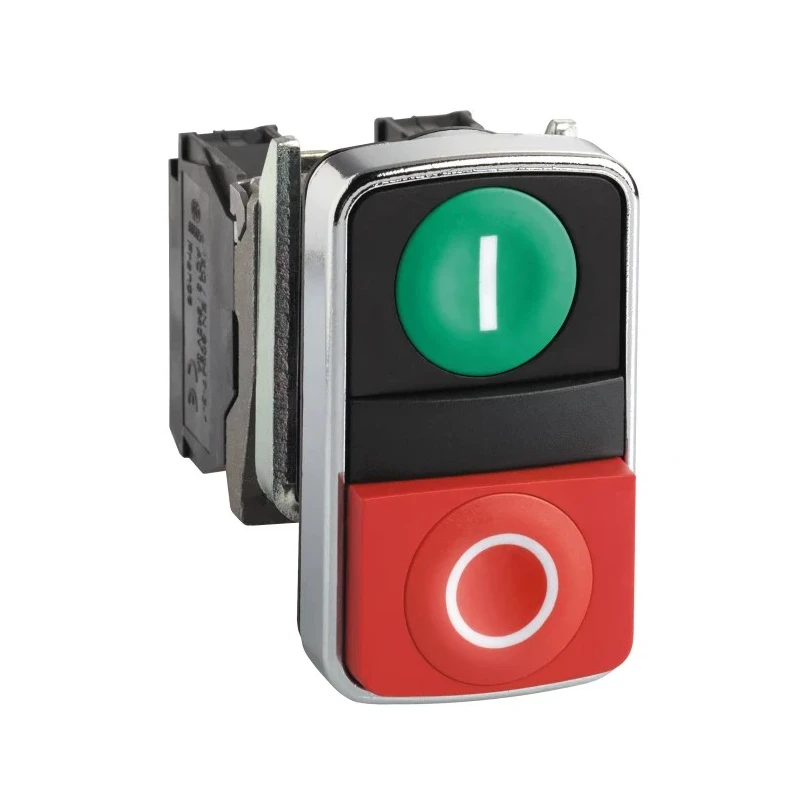

Schneider Electric XB4BL73415 Harmony XB4 Series Push Button Switch is engineered for reliable control in industrial applications. This double-headed pushbutton offers distinct ON and OFF (green 'I' and red 'O') functionality, ensuring clarity and safety for equipment operators. The spring return mechanism means the button automatically resets to its original position after use, reducing maintenance and preventing mistakes.

Designed for easy panel mounting, this switch accommodates a standard 22 mm cutout and includes a robust Zamak fixing collar. Its rectangular actuator provides ergonomic control and is fitted with a durable, chromium-plated bezel that resists corrosion, making it ideal for harsh environments.

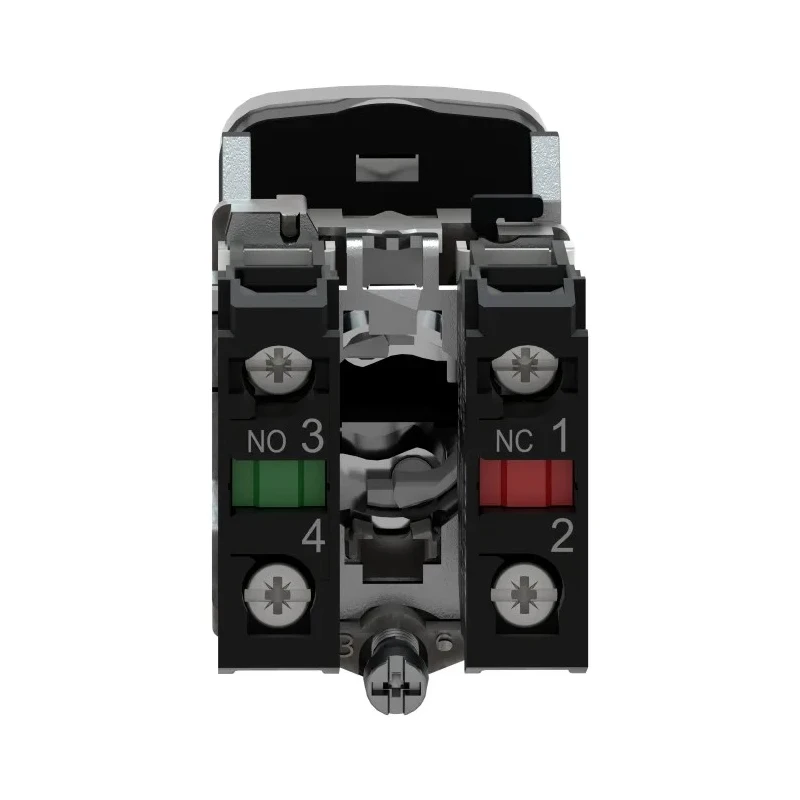

The SPDT contact configuration and screw terminals support flexible wiring options, while its non-illuminated design offers clear visual cues with the flush green 'I' and extended red 'O' buttons. The high ingress protection ratings IP67 and IP69K allow the switch to withstand immersion and high-pressure cleaning, making it suitable for demanding industrial, automotive, and ventilation system use.

This push button operates reliably within a temperature range of -25°C to 70°C, supporting applications such as power control panels, conveyor systems, and emergency controls. It achieves up to 1,000,000 mechanical cycles, emphasizing longevity and consistent performance. End users can easily repair and maintain the unit, reducing downtime.

Double-headed actuator with distinct symbols for ON/OFF operation. Spring return for automatic reset after every activation. Robust IP67 and IP69K ratings for environmental resilience. SPDT contacts and screw terminals for versatile installation.

Durable chrome bezel and Zamak fixing collar for extended service life. Compatible with 22 mm panel cutouts and standard control decks. Wide operating temperature for industrial and commercial environments. Long mechanical life for reduced maintenance needs.

This switch meets global standards including UL 508, EN/IEC 60947-5-1, and CSA C22.2. It is especially well-suited for control panels in manufacturing, automotive assembly, ventilation systems, and process automation. Explore more industrial controls in the Harmony XB4 Series from Schneider Electric and browse EnvMart's full selection of Push Button Switches for all automation needs.
