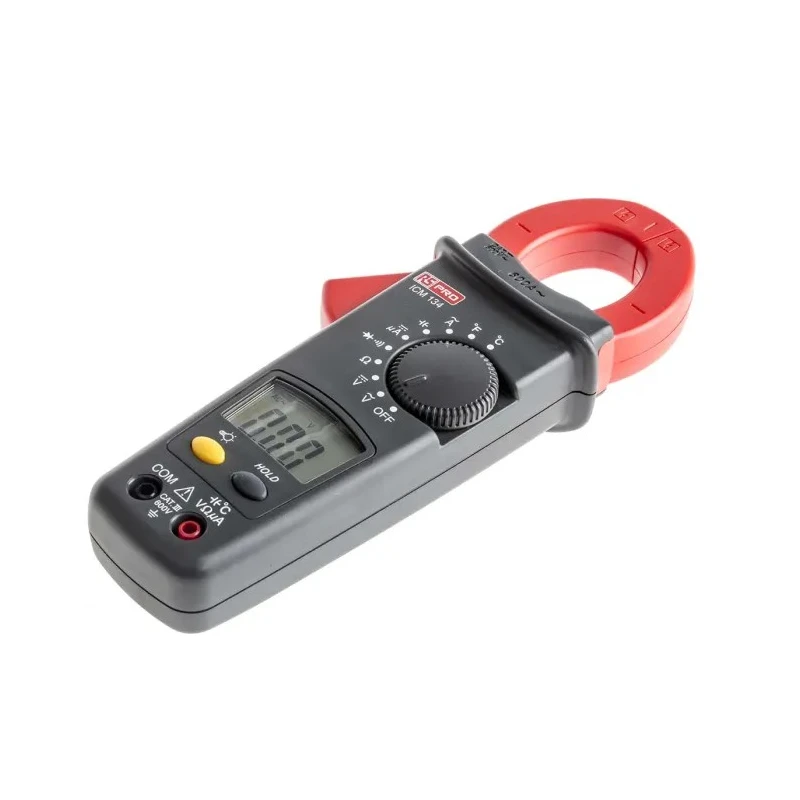

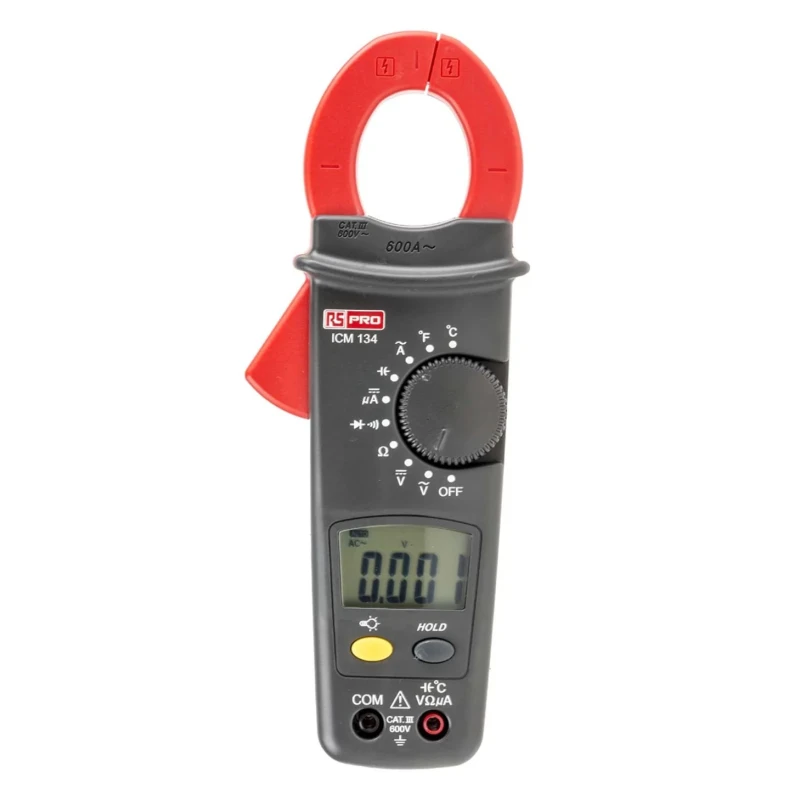

RS PRO Clamp Meter 4000A DC, 600A AC, 1000V DC, 750V AC, Non-Contact Voltage Detector, HVAC ICM134
Specifications
| Country of Origin | Taiwan |
|---|---|
| Display Type | LCD |
| Brand | RS PRO |
| Battery Life | 200h |
| Battery type | Alkaline |
| Model | ICM134 |
| Maximum Operating Temperature | 50°C |
| AC Voltage Resolution | 1mV ac |
| Minimum Operating Temperature | 0°C |
| DC Current Accuracy | 400.0 μA: ±(1%+2 dgt) |
| DC Voltage Resolution | 1 mV dc |
| Resistance Measurement Accuracy | ±0.7% + 2 Digits |
| AC Current Accuracy | ±1.9 % rdg + 1 A |
| AC Current Resolution | 100mA |
| Maximum Jaw Opening | 32mm |
| Standards/Approvals | IEC 610101:2001, EN 613261 |
| Maximum Temperature Measurement | 400°C |
| Functions Measured | AC Voltage, DC Current, DC Voltage, Resistance, Diode, Capacitance, Temperature, AC Current, Continuity |
| Maximum Resistance Measurement | 40mΩ |
| Maximum AC Current Measurement | 600A |
| Maximum DC Voltage Measurement | 1000V dc |
| Maximum DC Current Measurement | 4000A |
| Maximum AC Voltage Measurement | 750V ac |
| Safety Category Level | CAT III, CAT II |
| Safety Category Voltage | 1000V |
| Maximum Conductor Size | 32mm |
| Clamp Meter Type | HVAC Clamp Meter |
| DC Current Accuracy 400.0 μA | ±(1%+2 dgt) |
| Standards/Approvals IEC 610101 | 2001, EN 613261 |
| Amprobe ACD-10 PLUS Clamp Meter 600 A ac 600 V dc 600 V ac CAT IIIBrand | Amprobe |
Key Features
- Measures up to 4000A DC current and 600A AC current for versatile electrical testing.
- Supports up to 1000V DC and 750V AC voltage readings, suitable for a wide range of circuits.
- Includes non-contact voltage detection, improving safety during inspections.
- Large backlit LCD offers clear, bright data display at a glance.
- Performs resistance, capacitance, diode, continuity, and temperature measurements for multiparameter diagnostics.
- Features 32mm conductor jaw opening for large cables and busbars.
- Complies with IEC 61010-1 CAT III 600V and CAT II 1000V safety standards for high-voltage environments.
- Battery-powered, portable, and housed in a belt pouch for convenience in fieldwork.
Product Description
RS PRO ICM134 Clamp Meter is a robust, industrial-grade multimeter designed to meet the demanding requirements of electrical maintenance, HVAC troubleshooting, and general industrial testing. Featuring an impressive maximum DC current measurement of 4000A and AC current measurement of 600A, this device is ideal for high-current applications. The instrument also offers voltage readings up to 1000V DC and 750V AC, making it suitable for modern power distribution and control systems.
Equipped with a non-contact voltage detector, the clamp meter enables users to identify live circuits safely, minimizing risk during inspection and maintenance. The large, backlit LCD display supports easy visibility in bright or dark environments, streamlining workflow for technicians in the field.
Measures DC and AC current, DC and AC voltage, resistance, continuity, diode function, capacitance, and temperature. 32mm conductor jaw opening accommodates larger cables and busbars commonly found in industrial installations.
HVAC suitability: features thermometer functions (-40°C to 400°C) for temperature diagnostics including Type K thermocouple input. Battery-powered operation ensures maximum portability; delivers up to 200 hours of battery life using alkaline batteries.
Display hold, continuity, and diode test functions provide efficient troubleshooting capabilities. Compliance with IEC 61010-1 CAT III 600V and CAT II 1000V offers high-voltage safety and operational reliability.

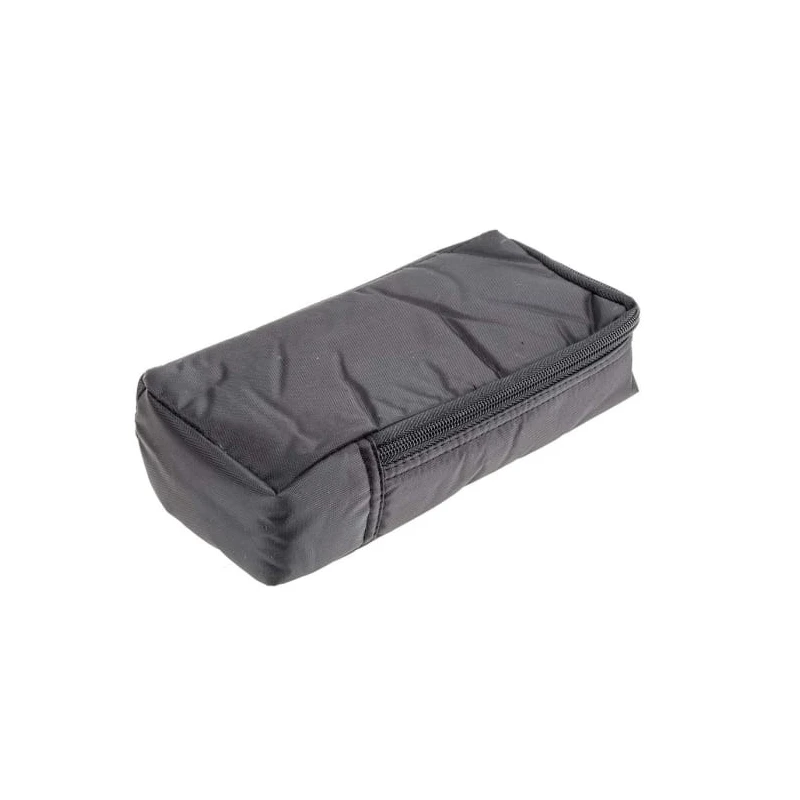

The RS PRO ICM134 is supplied in a belt pouch carry case, supporting safe transit and ready access during service calls. Its multiparameter measurement capability and non-contact voltage detection make it an indispensable tool for electricians, engineers, and maintenance professionals working on industrial, laboratory, HVAC, electrical, and commercial projects.
Typical use cases include electrical equipment installation, current measurement in service and maintenance, voltage diagnostics, temperature checks in HVAC systems, and multiparameter laboratory investigations.
Browse more Clamp Meters and test instrumentation from RS PRO and leading brands on EnvMart for your industrial, laboratory, or commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum DC current measurement for this model is 4000A.
This unit can measure a maximum AC current of 600A.
It supports voltage readings up to 1000V DC and 750V AC.
This clamp meter can measure AC voltage, DC voltage, AC current, DC current, resistance, capacitance, temperature, and continuity.
The accuracy for DC current measurements at 400.0 μA is ±(1%+2 digits).
The maximum temperature measurement capability of this model is 400°C.
It features a large LCD display for clear visibility of measurements.
The maximum jaw opening is 32mm, accommodating larger cables and busbars.
The battery life can last up to 200 hours when using alkaline batteries.
It complies with IEC 61010-1 CAT III 600V and CAT II 1000V safety standards.
The minimum operating temperature for this clamp meter is 0°C.
Yes, it includes a non-contact voltage detector for safely identifying live circuits.
