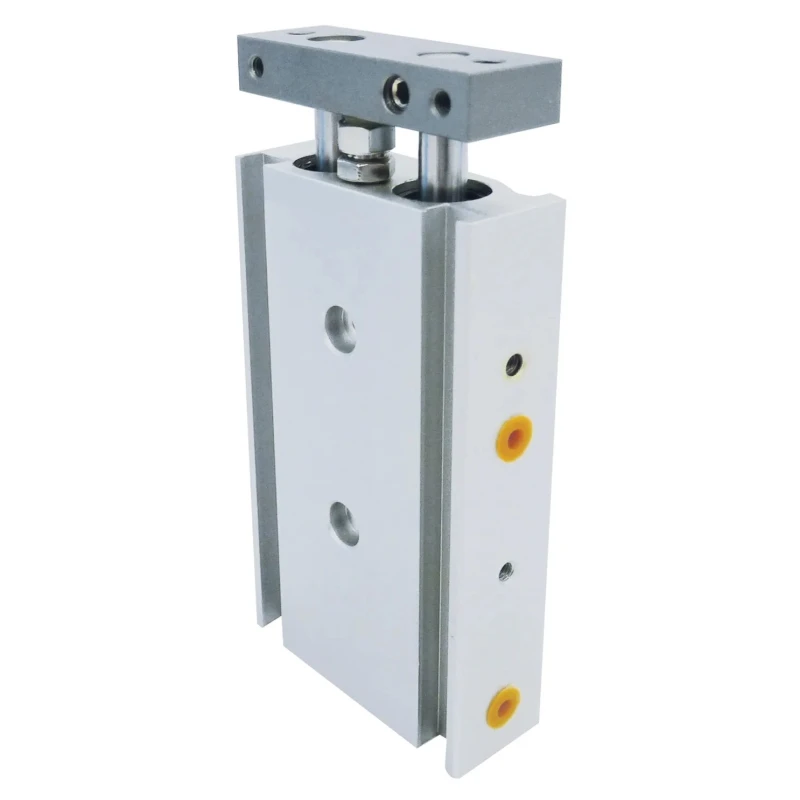

RS PRO Pneumatic Guided Cylinder, 10mm Bore, Double Acting, EXS Series 235-1146
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 46mm |
| Length | 82mm |
| Model | 235-1146 |
| Gross Weight | 160g |
| Width | 17mm |
| Series | EXS |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 10mm |
| Bore Diameter | 10mm |
| Rod Type | Double |
| Action Type | Double Acting |
| Cushioning Type | Rubber |
| Guide Type | Slide Bearing |
| Piston Rod Thread Size | M4 |
Key Features
- Features a 10mm bore and 10mm stroke for compact movement control.
- Double acting operation ensures consistent force in both directions.
- Aluminium body provides durability and corrosion resistance.
- Slide bearing guide type enhances stability and load support.
- Cushioning with rubber for smooth and adjustable strokes.
- Operates at a maximum pressure of 10 bar, suitable for industrial tasks.
- Magnetic positioning included for precise actuation.
- Operating temperature range from -20°C to 80°C.
Product Description
RS PRO 235-1146 Pneumatic Guided Cylinder is a robust double-acting device engineered for reliable motion control in industrial settings. Featuring a 10mm bore and a 10mm stroke length, this EXS Series cylinder is designed to deliver precise actuation where compact size and accurate positioning are essential.
Manufactured with an aluminium body and hard-chromed steel piston, the cylinder is built for durability and resistance to challenging environments. The double rod structure provides increased force output and improved resistance to side loads, making it suitable for conveyor systems and automation tasks where lateral stability is needed.
The slide bearing guide type enhances linear stability, supporting smooth operation during repeated cycles. Double acting action allows for controlled pushing and pulling, and the rubber cushioning system ensures shock absorption at both ends of the stroke with adjustable settings for optimal performance.
10mm bore diameter and 10mm stroke accommodate compact, precise movements. Double acting mechanism supports force output in both extension and retraction phases. Slide bearing guide type for smooth and accurate load movement.
Aluminium and hardened steel construction provides robust, corrosion-resistant performance. Operates reliably up to 10 bar maximum pressure. Magnetic positioning for integration with sensor systems and advanced automation.
Temperature range from -20°C to 80°C for diverse operating environments. Rubber cushioning allows gentle stroke ends, minimizing wear and noise. Compact dimensions (82mm length, 17mm width, 46mm height) enable easy installation.
Applications in factory automation, conveyor systems, manufacturing machinery, and laboratory equipment benefit from the RS PRO EXS Series guided cylinder's precision, stability, and compact size. Ideal for use in environments where balance and accurate movement are critical, such as assembly lines, robotics, and system integration projects.
This model weighs 160g, supports magnetic feedback, and is designed for integration with various pneumatic control systems. The EXS Series twin rod guided cylinder upholds RS PRO's reputation for quality and reliability in industrial fluid power solutions.
Explore more industrial Pneumatic Guided Cylinders and automation equipment from RS PRO on EnvMart to find solutions for all your factory and plant needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 10 bar.
This unit has dimensions of 82mm in length, 17mm in width, and 46mm in height.
The stroke length of this model is 10mm.
The body of the cylinder is made of aluminium, and it features a hard-chromed steel piston.
It operates within a temperature range of -20°C to 80°C.
This model utilizes a double acting mechanism, allowing for force output in both extension and retraction phases.
It features rubber cushioning, which ensures shock absorption at both ends of the stroke with adjustable settings.
This unit has a gross weight of 160g.
The guide type of this model is a slide bearing, which enhances linear stability and smooth operation.
Yes, it includes magnetic positioning for integration with sensor systems and advanced automation.
It is suitable for applications in factory automation, conveyor systems, manufacturing machinery, and laboratory equipment.
The piston rod thread size is M4.
