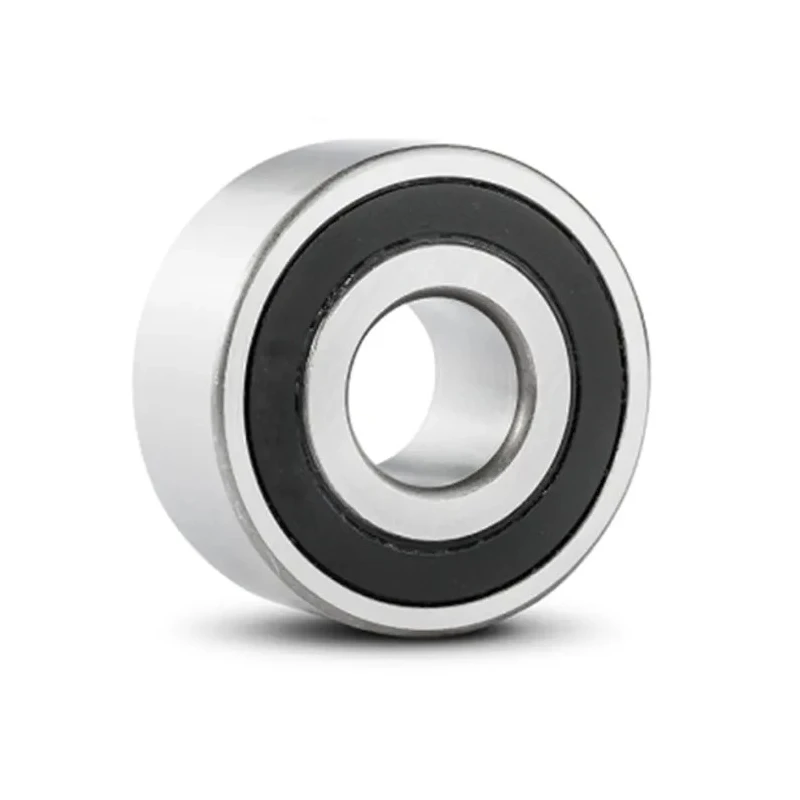

RS PRO Double Row Angular Contact Ball Bearing, Sealed, 17 mm ID, 40 mm OD, 17.5 mm Race Width, Steel Cage 234-6864

Free Delivery in India | Lowest Global Shipping Charges

RS PRO Double Row Angular Contact Ball Bearing, Sealed, 17 mm ID, 40 mm OD, 17.5 mm Race Width, Steel Cage 234-6864

Name: RS PRO Double Row Angular Contact Ball Bearing, Sealed, 17 mm ID, 40 mm OD, 17.5 mm Race Width, Steel Cage 234-6864
Brand: RS PRO
SKU: 91212
Price: 20.22 USD
Availability: InStock



Category Ball Bearings Brand RS PRO Condition New

Specifications

Country of Origin	India
Brand	RS PRO
Model	234-6864
Series	2 Light
Outside diameter	40mm
Inside Diameter	17mm
Number of Rows	2
Ball Material	Stainless Steel
Limiting Speed	12000rpm
Internal Clearance	CN
End Type	Sealed
Bore Type	Parallel
Bearing Type	Double Row Angular Contact Ball
Cage Material	Steel
Race Width	17.5mm
Static Load Rating	8.7kN
Dynamic Load Rating	14kN
Contact Angle	32°

Key Features

Double row angular contact design ensures rigidity and supports axial and radial loads in both directions.
Sealed ends protect against contamination and preserve lubrication for reliable long-term operation.
Bearing features a steel cage and stainless steel balls for enhanced durability and corrosion resistance.
Inside diameter of 17 mm, outside diameter of 40 mm and 17.5 mm race width for compatibility with standard shaft sizes.
Limiting speed up to 12000 rpm, optimized for high-performance and precision machinery.
Contact angle of 32° delivers superior load transfer capability compared to standard bearings.
Static load rating of 8.7 kN and dynamic load rating of 14 kN suitable for industrial and automotive use.
Ideal for agricultural, manufacturing, automotive, and materials handling equipment.

Product Description

RS PRO presents the 234-6864 Double Row Angular Contact Ball Bearing engineered for industrial, automotive, and manufacturing applications demanding high running accuracy and support for both radial and axial loads. This bearing features a double row angular contact design, enabling superior rigidity and load transfer capacity, which is essential for machinery with demanding performance requirements.

Constructed with a steel cage and stainless steel ball material, the bearing offers robust durability and outstanding corrosion resistance, making it ideal for use in environments subject to contamination or moisture. The sealed ends ensure vital lubrication is preserved and unwanted contamination is excluded, resulting in extended service life and reduced maintenance intervals.

Technical parameters include an inside diameter of 17 mm, outside diameter of 40 mm, and 17.5 mm race width, with a limiting speed of up to 12000 rpm. The 32° contact angle enhances load transfer capability and operational stability, supporting static loads up to 8.7 kN and dynamic loads up to 14 kN. The CN internal clearance and parallel bore type add versatility for integration with a variety of equipment.

Double row angular contact design provides rigidity and axial/radial load support. Sealed configuration maintains lubrication and prevents contamination. Steel cage and stainless steel balls offer reliable durability and corrosion resistance.

Standardized sizing: 17 mm ID, 40 mm OD, 17.5 mm race width. Optimized for speeds up to 12000 rpm. Contact angle and load ratings ensure high-performance operation. Used across agricultural, manufacturing, automotive, and materials handling industries.

Applications include agricultural machinery, industrial manufacturing systems, automotive driveline components, and materials handling equipment, where reduced maintenance downtime and long service life are critical.
