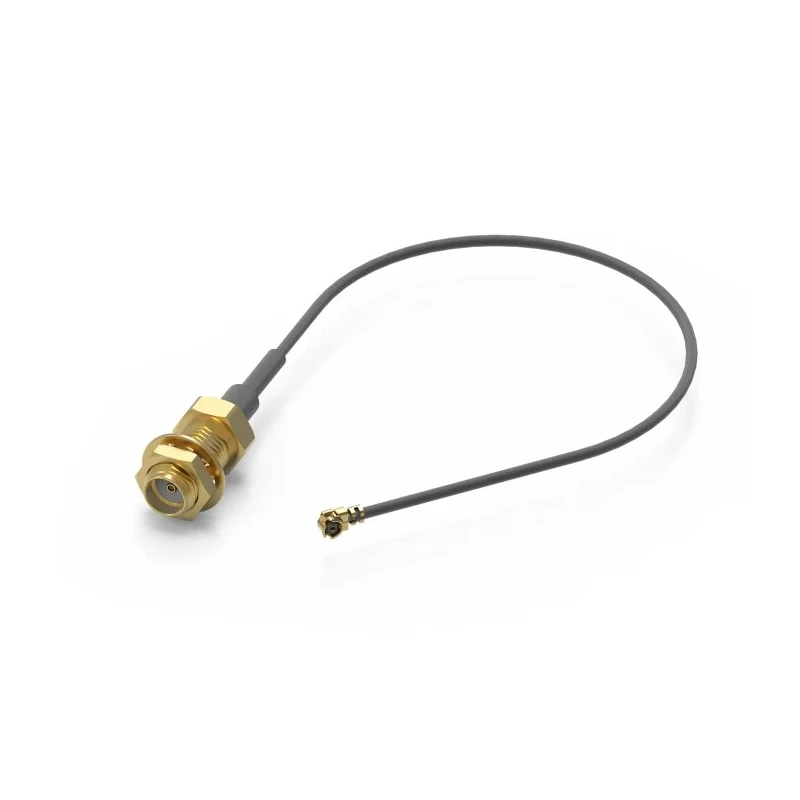

Wurth Elektronik SMA Series UMRF Coaxial Cable, 50Ω, Terminated, 300mm, 1.32mm OD, Black, Beryllium Copper Alloy 636207070300

Wurth Elektronik's SMA Series UMRF Coaxial Cable, model 636207070300, is designed for precision signal and RF transmission needs across industrial, laboratory, and wiring applications. This terminated cable delivers a characteristic impedance of 50Ω and supports a frequency range up to 6 GHz, making it ideal for high-frequency networking and instrument connections.

Constructed with a solid beryllium copper alloy conductor for minimized signal loss and enhanced durability, the cable measures 300 mm in length and 1.32 mm in outside diameter. The connections are gold over nickel plated, ensuring superior electrical contact and corrosion resistance, with the SMA bulkhead jack terminating at one end and a UMRF right angle plug on the other.

The fluorinated ethylene propylene (FEP) jacket provides flexibility, chemical resistance, and fire behavior meeting the VW-1 specification, while the cable's minimum bending radius of 4 mm permits installation in tight spaces. Reliable operation is assured within a wide temperature range from -40°C to 90°C and maximum working voltage of 200 Vrms.

Attenuation is rated at 2.4 dB, suitable for short cable runs and critical signal integrity scenarios. The cable is black for easy identification and is compliant with REACH, RoHS, and MIL-STD-348 standards for environmental and technical specification requirements.

SMA series UMRF coaxial cable with 300 mm length for reliable signal transmission. Characteristic impedance of 50 ohms, suitable for high-frequency data and RF applications. Robust construction featuring solid beryllium copper alloy conductor and FEP jacket.

Terminated connectors: SMA bulkhead jack to UMRF right angle plug with gold over nickel plating. Supports voltage up to 200 Vrms and frequency range up to 6 GHz. Resistance to extreme temperatures, operating from -40°C to 90°C with attenuation of 2.4 dB.

Minimum bending radius of 4 mm ensures flexibility during installation. Complies with REACH, RoHS, and MIL-STD-348 standards. Black VW-1 rated jacket for fire resistance and durability. Suitable for networking, telecommunications, laboratory, and electronic equipment usage.

Typical applications include instrumentation, laboratory test setups, high-frequency telecommunication wiring, and industrial networking. Browse more RF and Coaxial Cables from Wurth Elektronik for tailored connectivity and signal management solutions on EnvMart.
