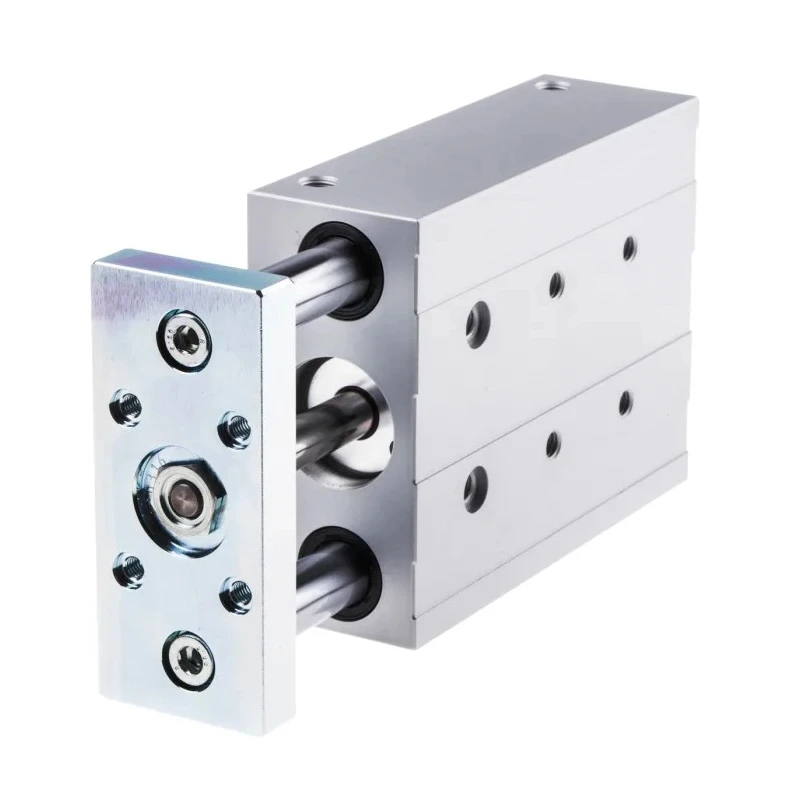

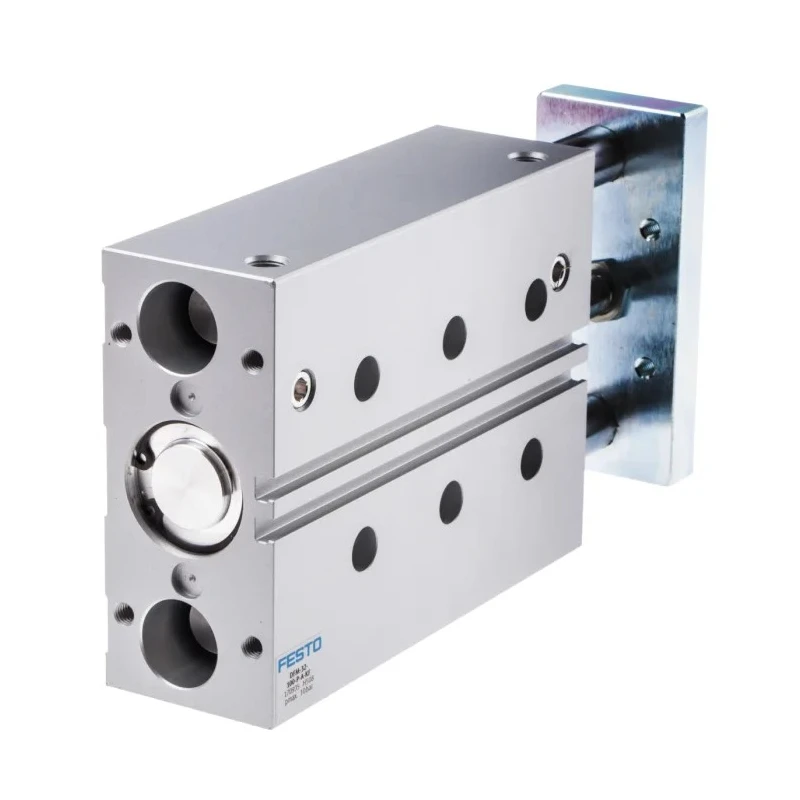

Festo DFM-32-100-P-A-KF Pneumatic Guided Cylinder, 32mm Bore, 100mm Stroke, Double Acting, 10 bar, Ball Bearing, Germany

Festo DFM-32-100-P-A-KF Pneumatic Guided Cylinder delivers advanced drive and guide capabilities in a single compact unit, with 32mm bore and 100mm stroke suitable for demanding industrial applications such as clamping, stopping, material handling, and lifting.

Engineered for resilience and precision, this double acting cylinder employs recirculating ball bearings and plain bearings in its guide system. High resistance to torque and lateral forces is achieved thanks to its robust aluminium body and integrated piston rod design. The flexible cushioning plates integrated in the unit ensure quieter operation and enhanced service life, making it maintenance-free and ideal for frequent use.

The cylinder supports flat, side, and through hole mounting for diverse installation configurations. Air supply ports are available on both top and side, allowing flexible pneumatic connections. Construction materials include high alloy stainless steel, Nitrile Rubber (NBR), polyurethane, tempered steel, and wrought aluminium alloy for durability and corrosion resistance.

ISO 1179-1 and ISO 228-1 compliant piston rod threads, along with guide types compatible with ball and plain bearings, ensure universal fitment and performance in industrial systems.

Operating pressure rating reaches up to 10 bar, with temperature tolerance from -5°C to 60°C for environments with thermal variations. Sturdy design stops loads up to 150 kg and seamlessly accommodates proximity sensors for motion monitoring.

Typical uses include automated production lines, material transfer stations, robust clamping jobs, and precise load stopping in manufacturing and packaging. The cylinder’s compact 199mm length, 110mm width, and 49mm height, coupled with a weight of 2.7kg, makes installation practical even in space-limited locations.

The DFM-32-100-P-A-KF is engineered in Germany and meets RoHS and ISO compliance for quality and safety. Its integrated features, such as noise-reducing cushioning, universal mounting, and high-force handling, make it a reliable component in industrial, construction, commercial, and laboratory pneumatic systems.

Drive and guide unit in a single housing for space-saving design. Maintenance-free operation lowers lifetime cost. Designed for flexible installation in industrial applications. Resilient to strenuous operational demands and high torque loads.
