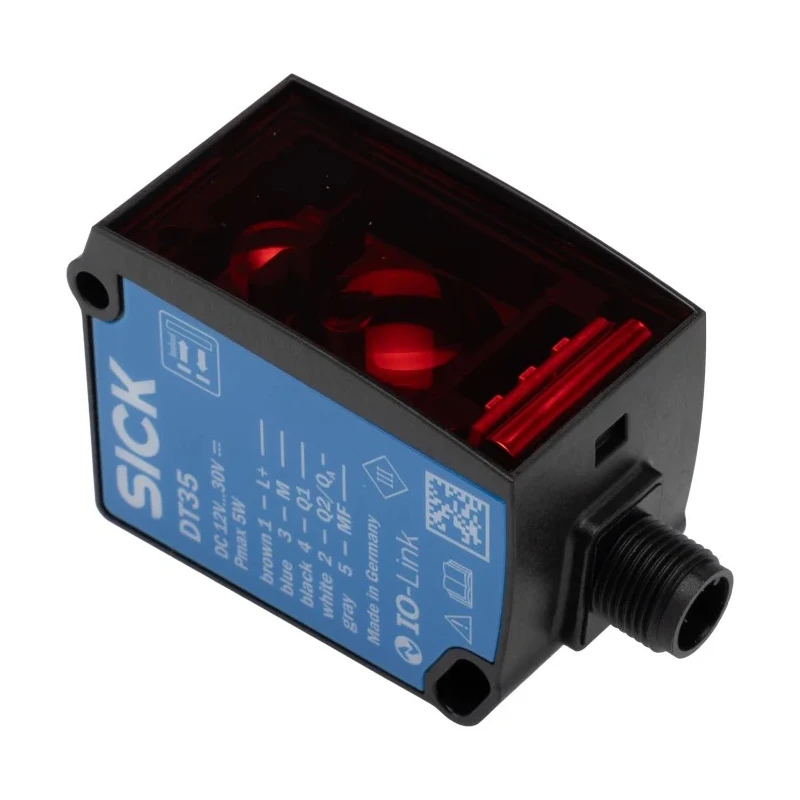

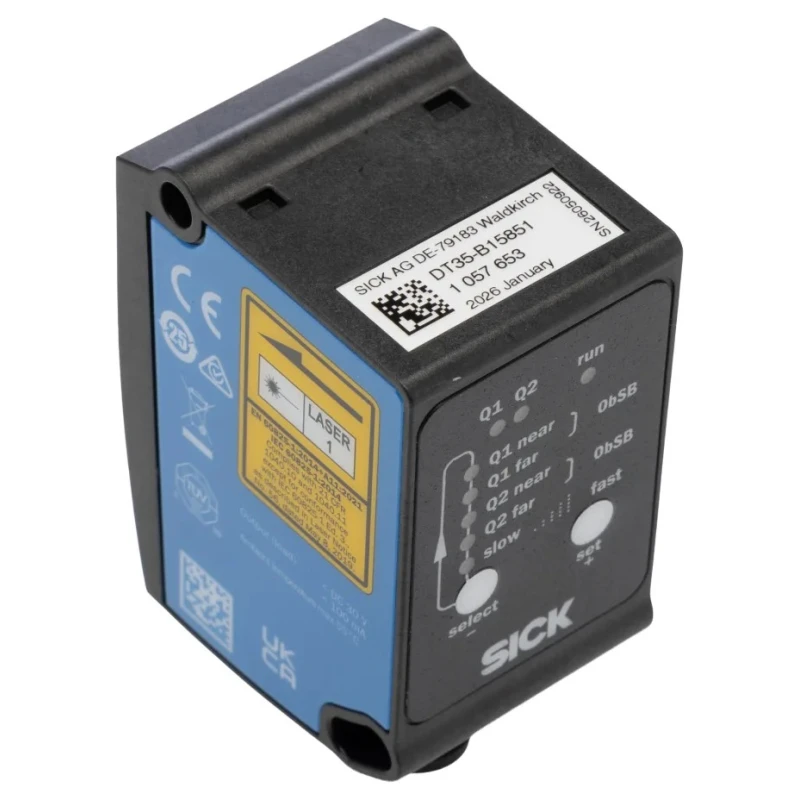

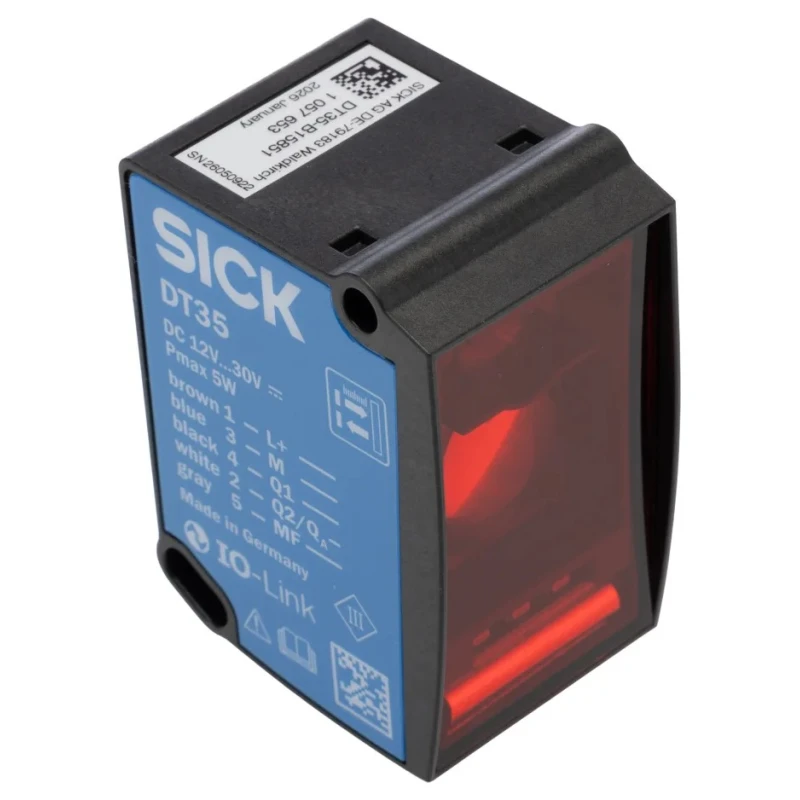

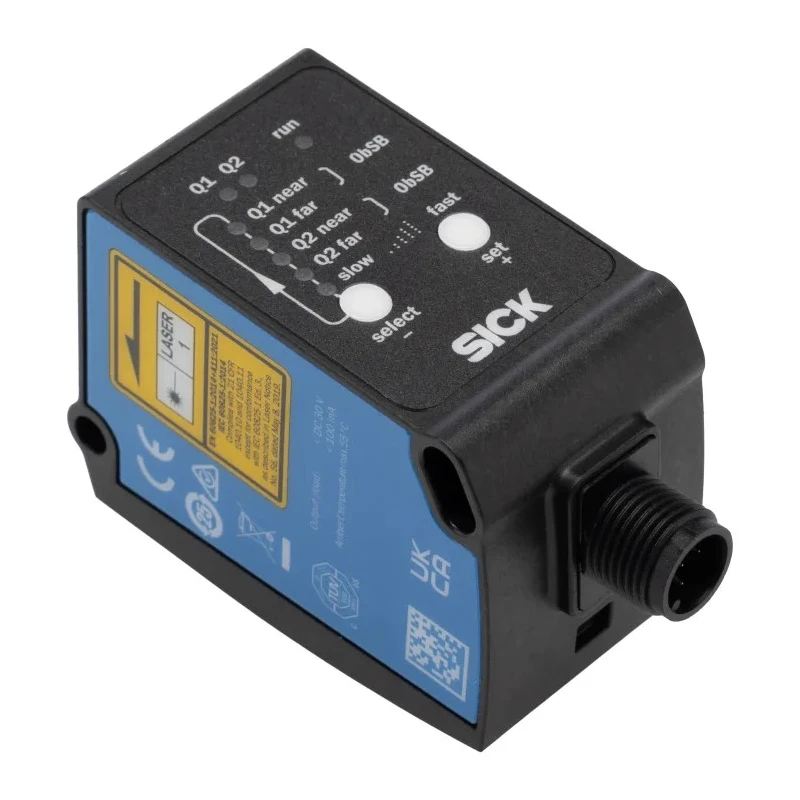

SICK Dx35 Series Distance Sensor Block, 0.05 mm - 12 m Detection Range, PNP/NPN NO/NC Analogue IO-Link, IP67/IP65 DT35-B15851
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | SICK |
| Light Source | Infrared Laser |
| Detection range | 0.05 mm → 12 m |
| Model | DT35-B15851 |
| IP Rating | IP67, IP65 |
| Mount Type | Hole |
| Housing Material | ABS |
| Output type | PNP/NPN NO/NC, Analogue |
| Series | Dx35 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -30°C |
| Maximum Current | 100mA |
| DetectIon Type | Distance |
| Terminal type | 5-Pin M12 |
| Interface Type | IO-Link V1.1 |
| Maximum dc Voltage | 30V dc |
| Materials Detected | Natural Object |
| Sensor Style | Block |
| Standards/ApprovalsIEC 60825-1 | 2014, EN 60825-1:2014 |
| IEC 60825-1 | 2014, EN 60825-1:2014 |
| It conforms to IEC 60825-1 | 2014 standards, specifying its classification and handling requirements for laser-emitting equipment |
Key Features
- Infrared laser enables accurate detection of natural objects.
- IO-Link V1.1 interface supports advanced configuration and diagnostics.
- Designed with durable ABS housing for rugged environments.
- Wide operating temperature range from -30°C to 55°C.
- IP67/IP65 rating protects against dust and washdown conditions.
- 5-pin M12 terminal ensures secure and simple electrical connection.
- Detection range covers both close and long distances, up to 12 meters.
Product Description
SICK DT35-B15851 Distance Sensor is engineered for automated industrial applications requiring precise distance measurement across a wide range of environments. This block-style sensor uses an infrared laser to reliably detect natural objects, offering a detection range from 0.05 mm to 12 m. It delivers selectable outputs - PNP/NPN NO/NC and analogue - allowing for seamless integration with process control and automation systems.
The sensor incorporates an IO-Link V1.1 interface, simplifying configuration, parameterization, and diagnostics over standard communication channels. Its robust ABS housing is rated IP67 and IP65, providing exceptional resistance against dust, water spray, and washdowns. The design ensures reliable operation even in challenging industrial environments with an operating temperature range from -30°C to 55°C.
Infrared laser technology enhances setup accuracy for conveyor position monitoring and material handling feedback. Flexible outputs support multiple control strategies including continuous analogue distance feedback and digital switching.
5-pin M12 terminal connection streamlines installation and maintenance. Hole-mount form factor enables easy integration into machinery or conveyor systems. Complies with IEC 60825-1:2014 and EN 60825-1:2014 standards for laser safety.
Series: Dx35, with proven reliability in precision measurement applications.
Industrial use cases include conveyor positioning, PLC feedback for automated handling, presence verification on production lines, and machine tool setup verification. The sensor’s adaptable interface and environmental protection make it ideal for manufacturing, logistics, and process automation.
Discover more SICK sensors and automation components in the EnvMart Photoelectric Sensor category for advanced industrial and manufacturing solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The detection range of this sensor is from 0.05 mm to 12 m.
It uses an infrared laser as its light source.
This model offers selectable outputs of PNP/NPN NO/NC and analogue.
The sensor has an IP67 and IP65 rating, providing protection against dust and water.
The operating temperature range is from -30°C to 55°C.
It features a 5-pin M12 terminal for secure and simple electrical connection.
It is designed to detect natural objects.
The housing is made of ABS, which is suitable for rugged environments.
It complies with IEC 60825-1:2014 and EN 60825-1:2014 standards for laser safety.
It supports an IO-Link V1.1 interface for advanced configuration and diagnostics.
This model uses a hole mount type for installation.
The maximum current rating is 100 mA.
