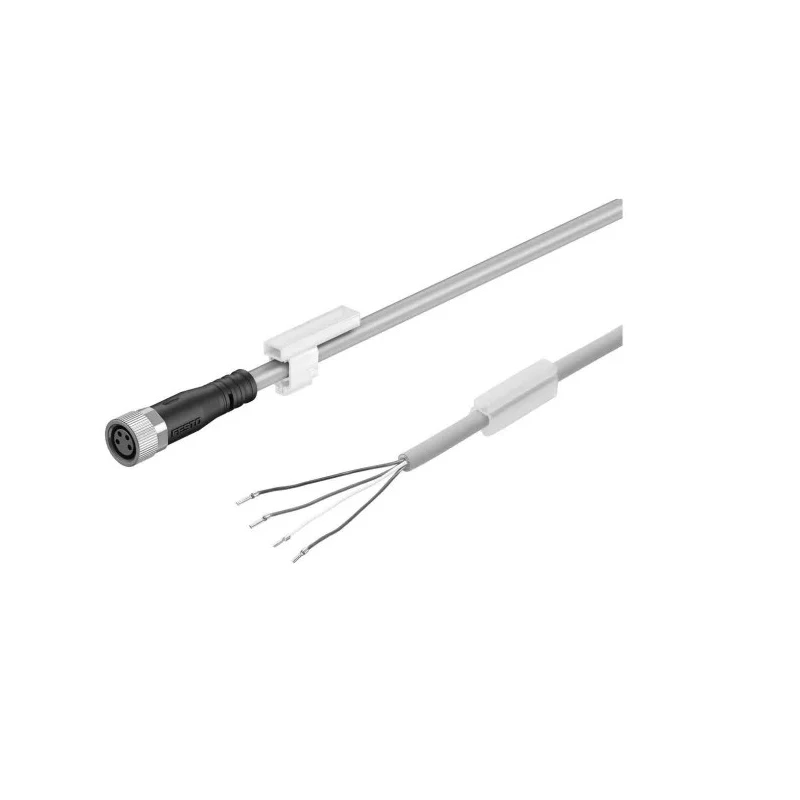

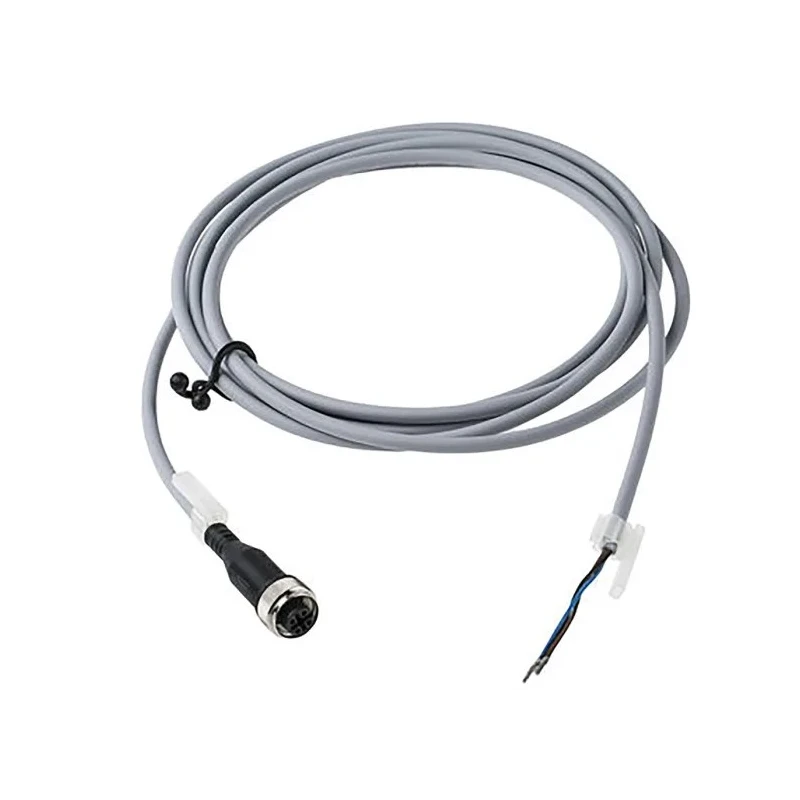

Festo NEBU Series Sensor & Actuator Cable NEBU-M8G4-K-5-LE4, M8 x 1, Open End, For Energy Chain, 5m, IP69K

Festo presents the NEBU-M8G4-K-5-LE4 sensor and actuator cable, part of the NEBU series, engineered for versatile use in energy chain systems within demanding industrial and automation environments. This cable serves as a critical interconnection between sensors, actuators, and control units, supporting efficient communication and robust power delivery.

With a 5 meter length, the cable provides flexibility for long runs and complex installations. Connection A is equipped with a secure M8 x 1 plug suitable for integration with field devices such as robotic arms or assembly line actuators, while Connection B is open-ended to allow direct connection to control hardware or extension for custom wiring requirements.

The cable features a PUR (polyurethane) housing, offering excellent resistance to impact, abrasion, and hostile environmental factors, ensuring reliable operation within material handling machinery and other heavy-duty applications. The design incorporates a screw locking mechanism that ensures a vibration-safe and stable attachment to connected devices.

The NEBU-M8G4-K-5-LE4 supports operation across both AC and DC voltage ranges up to 30V, coping with variable control and feedback signals as required in advanced pneumatic and hydraulic systems. Its wide operating temperature capability, from -25°C up to +70°C, allows deployment in both cold and high-temperature industrial zones.

Rated IP69K, the cable is fully protected against dust ingress and withstands direct exposure to high-pressure, high-temperature water jets, making it ideal for installations with frequent wash-down cycles or harsh environmental cleaning. The 75mm minimum bending radius ensures flexibility for installations involving moving chains and trunking.

5 meter length ideal for industrial sensor and actuator integration. Connection A: M8 x 1 plug, Connection B: open end for custom connection. PUR jacket ensures durability and resistance to mechanical stress. Operating voltage: 0 - 30V AC/DC, supports standard control signals.

Secured screw locking for vibration-proof installation. Wide operating temperature: -25°C to +70°C for diverse plant locations. IP69K ingress protection for extreme cleaning and dust environments. Compliant with EN 61984, EN 61076-2-101, EN 61076-2-104, and RoHS for safety and environmental standards.

Flexible bending radius makes it suitable for energy chain trunking and moving equipment.

Common industrial applications include sensor control wiring in robotic arms, assembly lines, packaging machines, and automated material handling. The cable's robust construction and flexibility ensure long service life even in frequently cycled setups.
