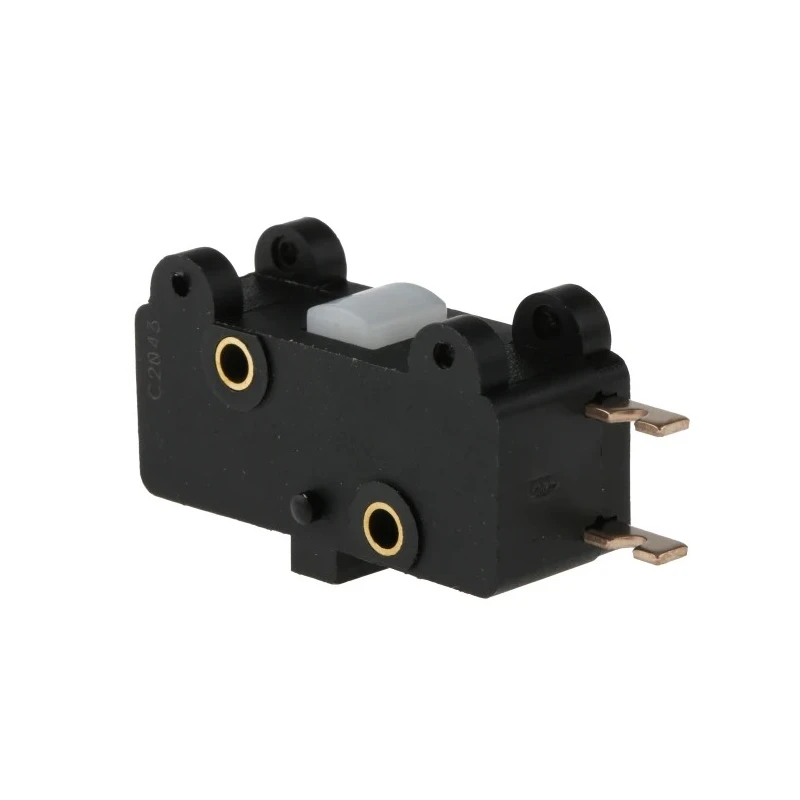

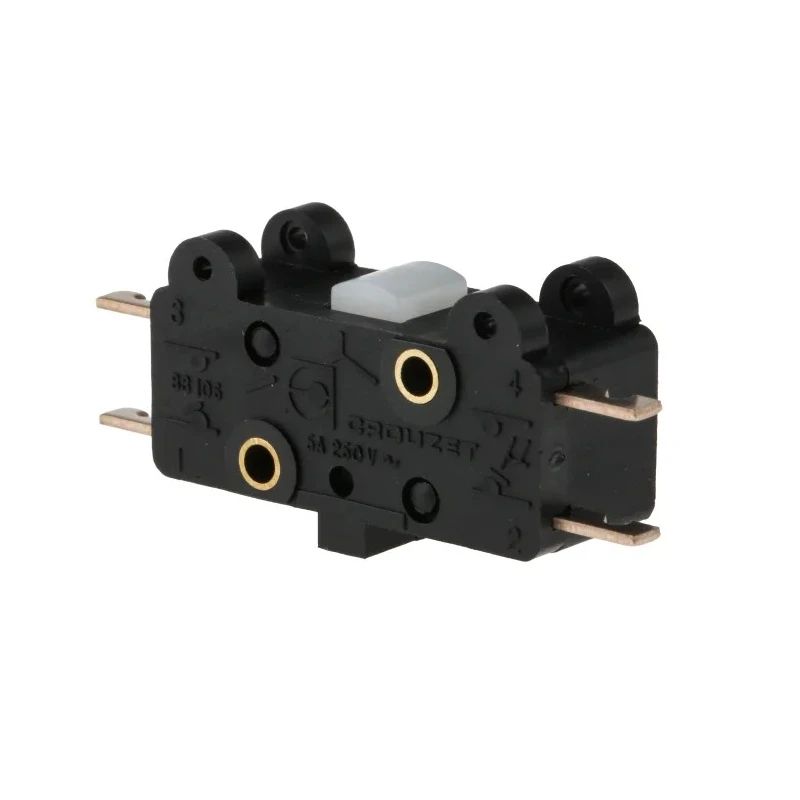

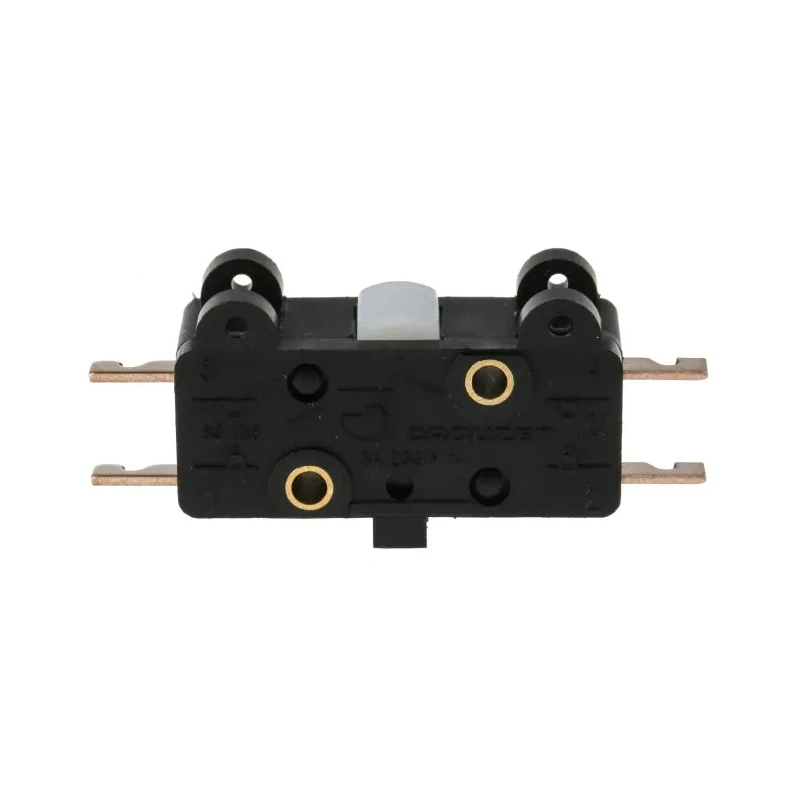

Crouzet 83106 Series Plunger Limit Switch SPDT Polyamide Housing 250V AC 5A 83106030

Crouzet 83106030 Plunger Limit Switch is an industrial-grade device engineered for reliable position sensing and control across a range of automation, machinery, and electrical systems. This model is equipped with a robust plunger actuator, enabling high-precision mechanical switching suitable for applications such as gate control, conveyor monitoring, and process equipment safety.

The switch operates with a single-pole double-throw (SPDT) contact configuration, providing both normally open and normally closed outputs for flexible integration. Rated to handle switching AC voltages up to 250V and currents up to 5A, the 83106030 ensures optimal performance in most industrial and commercial environments.

Its housing is constructed from polyamide, which offers superior insulation, chemical resistance, and mechanical protection. The Limit Switch is designed with screw terminals for secure, straightforward wiring and side mounting for easy panel or equipment installation.

The mechanical life of up to 10 million cycles makes this model ideal for continuous or repetitive operations, while an operating force of 4N supports precise actuation without requiring excessive mechanical input. The operating temperature window extends from -20°C to 85°C, ensuring function under challenging conditions including freezer rooms and hot manufacturing environments.

Measuring 32mm in width, 13.6mm in depth, and 19mm in length, the compact form factor facilitates installation in tight spaces. Compliance with UL94 standards underlines its safety and flame retardancy credentials.

Actuator type is a reliable plunger for accurate mechanical input. Single-pole double-throw (SPDT) contact configuration ensures versatile control. Rated for switching AC voltage of up to 250V and current up to 5A. Constructed with high-grade polyamide housing for excellent durability and insulation.

Offers long mechanical life of up to 10 million cycles. Operating temperature ranges from -20°C to 85°C for harsh environments. Side-mounting orientation and screw terminals allow convenient installation. Complies with UL94 standards for safety and flame retardancy.

Common industrial applications include machinery interlocks, automated equipment, transport system safeguards, and HVAC zone control. Its durable construction and proven reliability make it a preferred solution for OEMs and system integrators in manufacturing, commercial, and infrastructure projects.

Explore more Crouzet industrial switches and automation components at EnvMart for expanded technical solutions.
