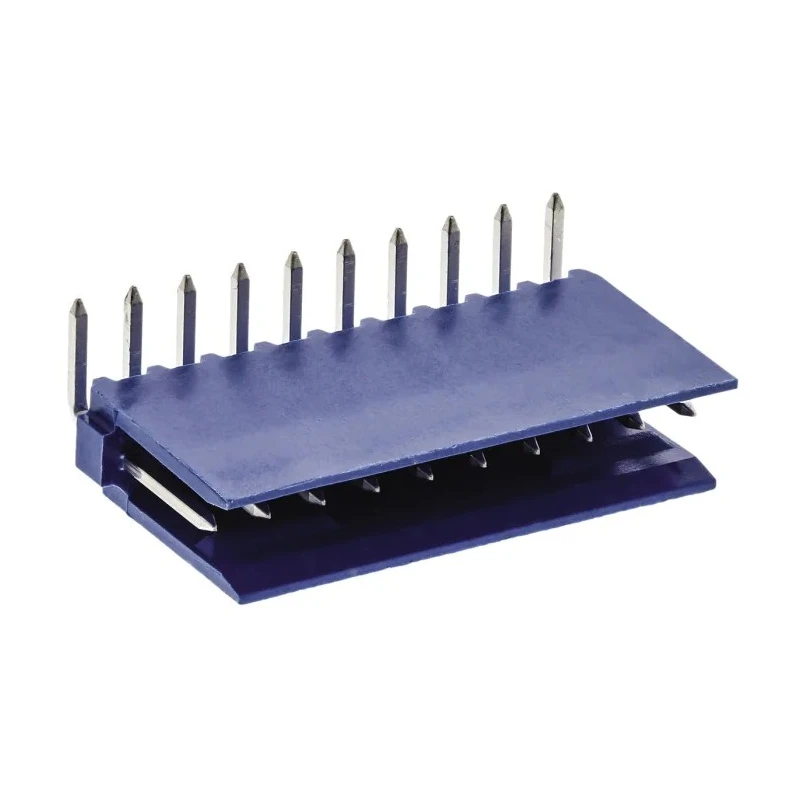

TE Connectivity AMPMODU HE14 Right Angle 10-Pin PCB Header, Shrouded, 2.54 mm Pitch, Through Hole, 3A, 500V, 1 Row HE14

The TE Connectivity AMPMODU HE14 Series Right Angle 10-Pin Shrouded PCB Header is engineered for demanding automation, industrial, and electronic applications that require reliable wire-to-board connections. As part of the well-regarded AMPMODU HE14 interconnect system, this header is optimized for use in signal transmission within PCB assemblies and is suitable for professional environments.

This model features a right angle orientation with ten phosphor bronze male contacts arranged in a single row, spaced at a standard 2.54 mm (0.1 in.) pitch. Each contact is tin-plated to ensure signal integrity, while the thermoplastic housing is rated UL 94V-0 for high-temperature resistance. The protective shroud design shields the pins from accidental damage and misalignment during mating, supporting both discrete wire and ribbon cable IDC terminations.

The header is engineered for through hole soldering, ensuring stable mechanical retention and ease of assembly in production environments. With a standard 3A current rating and voltage handling up to 500V, this connector is suitable for use in industrial controls, instrumentation, test equipment, computers, telecommunications, medical devices, storage systems, and appliances. Its polarization and integrated friction lock further protect against mismating and vibration-induced disconnects.

Benefits include robust housing materials that withstand high temperatures and repeated connections, shrouds for enhanced pin protection, and design features that simplify wiring and maintenance. The tail pin length of 2.79 mm facilitates predictable engagement with PCB pads.

This header exemplifies TE Connectivity’s focus on reliability and cost-effectiveness, supporting automation, laboratory, and manufacturing requirements where consistent signal transmission is essential. When mated with corresponding AMPMODU HE14 IDC receptacles, these headers deliver long-term electrical and mechanical performance in a compact package.

Industrial and commercial use cases include automotive controls, PLC and automation panels, electronic test setups, telecommunications systems, medical instrumentation, and storage device PCB assemblies.
