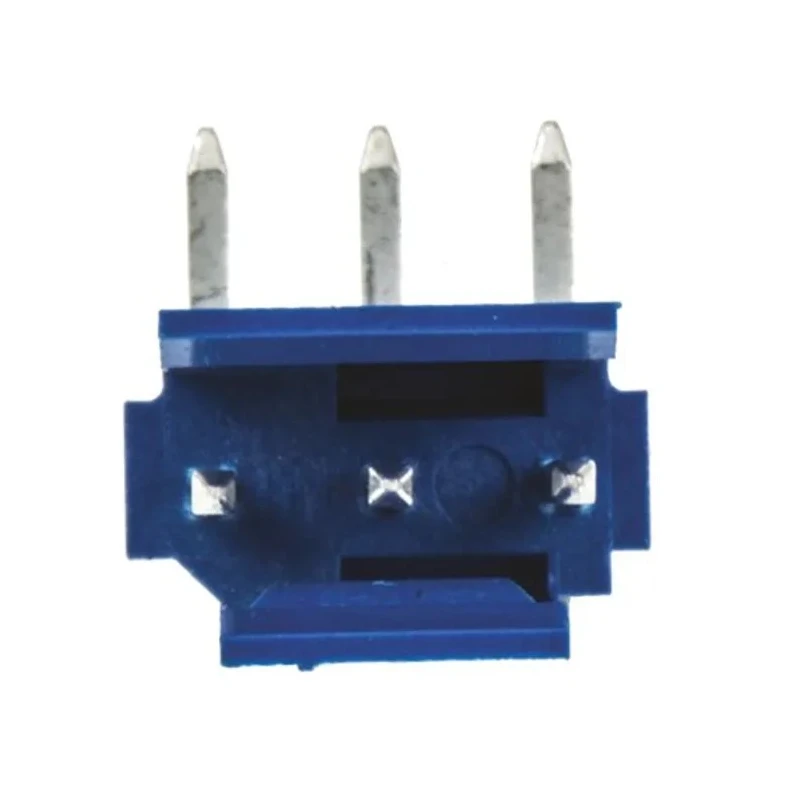

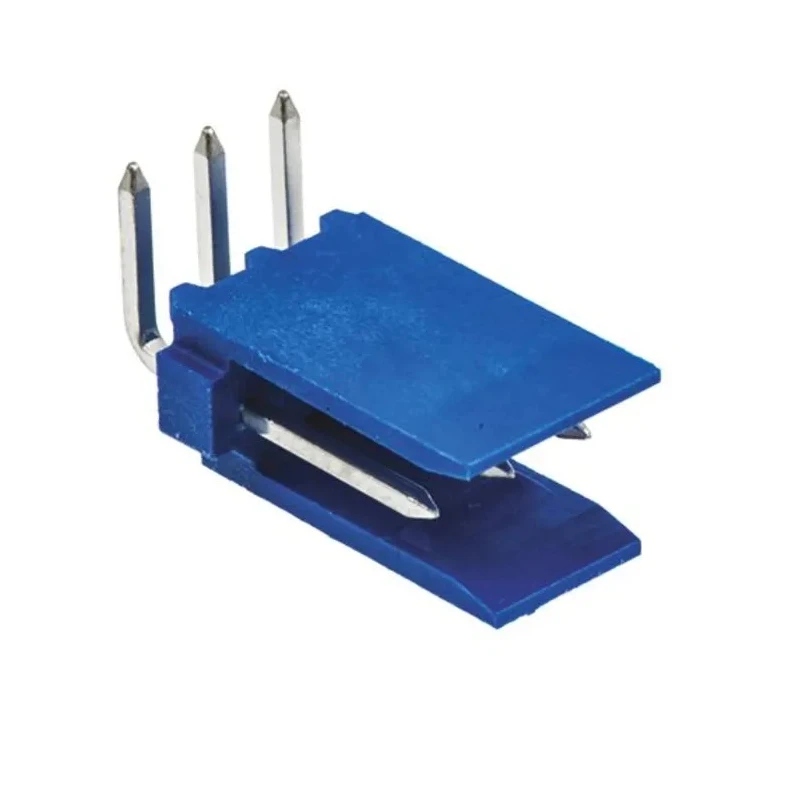

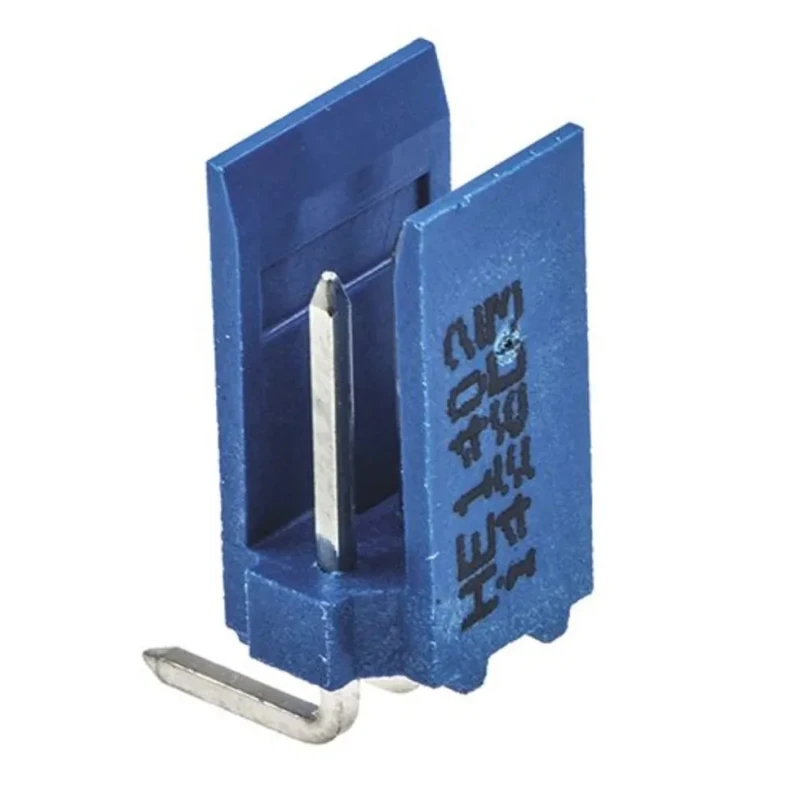

Molex AMPMODU Series Right Angle Shrouded PCB Header , 3 Contacts, 2.54 mm Pitch, Through Hole, 500V HE14
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 3A |
| Model | HE14 |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.9mm |
Key Features
- Right angle shrouded PCB header for secure wire-to-board connections.
- Supports 3 contacts with a 2.54 mm pitch for standardized PCB interfacing.
- Through hole mount type for robust mechanical attachment.
- Rated up to 500 V and supports a maximum current of 3 A.
- Housing made from high-temperature thermoplastic, UL 94V-0 rated for enhanced safety.
- Tin-plated phosphor bronze contacts ensure reliable electrical performance.
- Male contact gender and single row configuration simplifies installation and mating.
- Operating temperature range from -40°C to 105°C suitable for industrial environments.
Product Description
TE Connectivity 281698-3 AMPMODU HE14 Series right angle shrouded PCB header is a premium wire-to-board connector engineered for demanding electronic, industrial, and automation applications. Designed for reliability and safety, this header features a high-temperature thermoplastic housing with UL 94V-0 flame rating and protective shrouds that shield the pins.
The connector supports three tin-plated male contacts arranged in a single row with a standard 2.54 mm pitch, compatible with IDC receptacles and ribbon cables for versatile termination options. The shrouding includes an integrated friction lock, ensuring secure mating and error-free installation.
Its through hole mounting style allows robust mechanical attachment to PCBs, making it suitable for both production and high-vibration industrial settings. The header is capable of handling up to 3 A of current and 500 V voltage, supporting a wide range of control and signal applications. Operating temperature is rated from -40°C up to 105°C, making it viable for harsh environmental conditions including automotive controls, test equipment, computers, telecommunications, storage devices, and medical instruments.
Phosphor bronze contacts with tin plating deliver reliable conductivity and long-term performance, while the polarization feature prevents mismating. The tail pin length of 2.9 mm ensures a strong solder joint for electrical integrity.
This product is an essential component for designers and engineers seeking robust, cost-effective signal standards for automation and control environments. The connector’s shrouded design offers pin protection and enhanced mechanical locking, providing peace of mind for industrial users.
Applications include industrial automation, automotive control systems, electronic test equipment, computer subsystems, telecommunications, medical electronics, and storage appliance manufacturing.
Explore more PCB connectors and headers from TE Connectivity in the EnvMart PCB Headers category.
