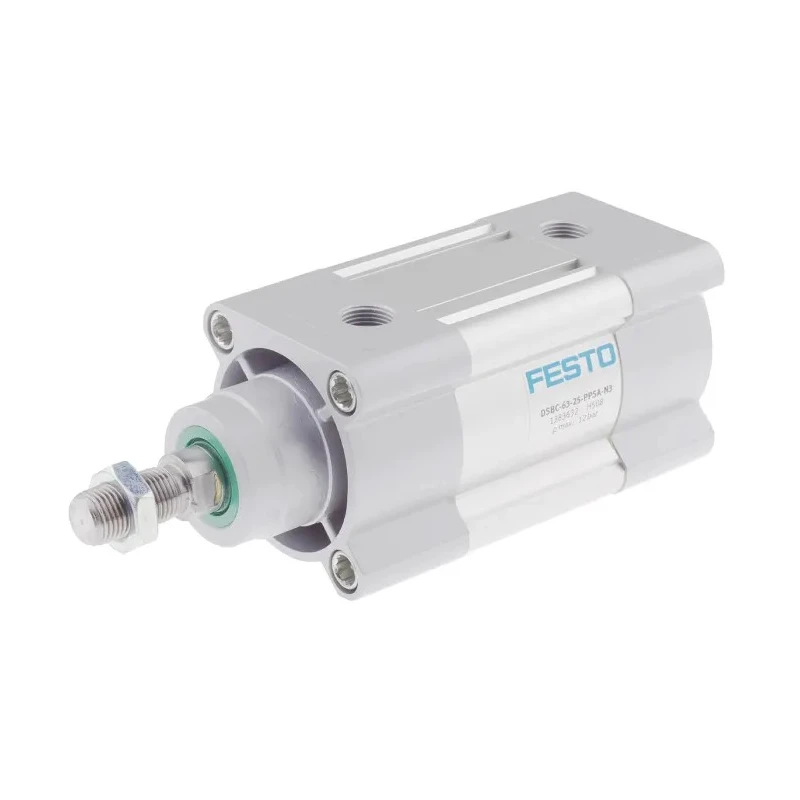

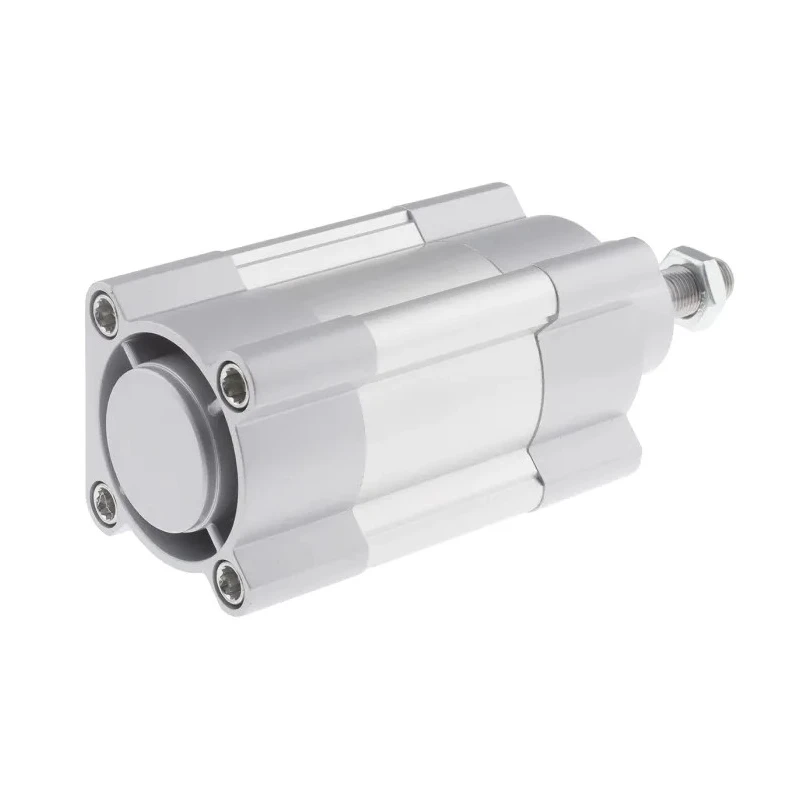

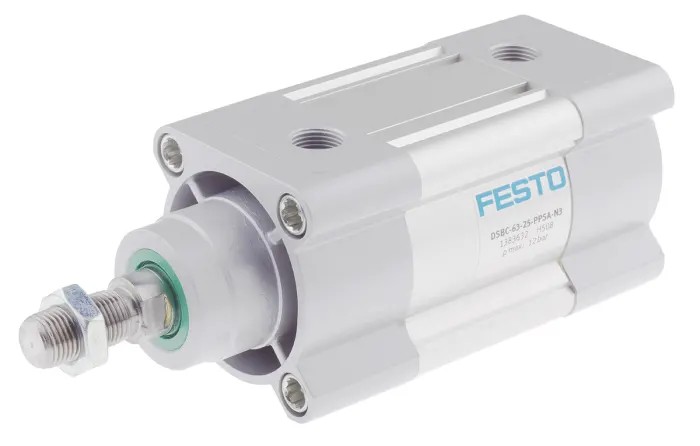

Festo Pneumatic Piston Rod Cylinder DSBC-63-25-PPSA-N3, Double Acting, 63mm Bore, 25mm Stroke, Aluminium Body, 12 Bar

Festo DSBC-63-25-PPSA-N3 pneumatic piston rod cylinder is a high-performance industrial actuator engineered for precise linear motion in demanding environments. Featuring a 63mm bore and 25mm stroke, this double acting cylinder utilizes compressed air to move the piston rod bidirectionally, making it perfect for automation, manufacturing lines, and machinery requiring repetitive controlled movements.

With an aluminium body, the DSBC-63-25-PPSA-N3 maintains a low overall weight, while its high-alloy steel piston rod is threaded for secure fixture and optimal long-term durability. The cylinder incorporates self-adjusting pneumatic cushioning at both ends which eliminates the need for manual adjustment and ensures gentle, dynamic travel into end positions regardless of load changes or speed fluctuations. This design helps to minimize shock, vibration, and noise, reducing maintenance and operator setup time greatly.

Dual air ports enable efficient supply and exhaust of compressed air, facilitating swift piston movement both forwards and backwards. The magnetic piston rod supports contactless sensor-based position detection, allowing integration into advanced automated systems with feedback and control requirements. The DSBC-63-25-PPSA-N3 is fully compliant with ISO 15552 standards, guaranteeing compatibility with industry-standard mounting accessories. Flexibility in installation means it can be mounted in various positions, including foot, swivel bracket, or in multi-actuator arrangements.

Technical parameters include a maximum operating pressure of 12 bar, a working temperature range from -20°C to 80°C, and a rugged air cushioning feature. The single, male piston rod is fitted with a 3/8 inch G thread, and the actuator is suitable for operation in factory automation, pneumatic material handling, and process control applications. The robust build and versatile mounting capabilities of the DSBC series cylinder make it ideal for integration into pneumatic control panels, conveyors, packaging machines, and robotic arms.

Industrial users benefit from features such as slots for flush-mounted proximity sensors, a friction-optimized design enabling continuous operation, high-alloy steel piston rod, and a broad array of stroke length options within the DSBC range. The cylinder's design simplifies integration and allows for quick swaps and upgrades in ISO-compliant systems. Its German engineering delivers proven reliability for manufacturing, assembly automation, and advanced pneumatic platforms.

Provides precise linear motion for automation, manufacturing, and pneumatic applications. Features self-adjusting air cushioning for smooth travel into end positions, reducing manual setup. Aluminium body ensures low overall weight and high durability for continuous operation.

High-alloy steel piston rod with threaded connector delivers reliable performance and extended service life. Dual connection ports allow efficient compressed air supply for both advancing and retracting movements. Magnetic piston rod enables contactless position detection via compatible sensors.

Compliant with ISO 15552 standard for universal mounting and interchangeability. Suitable for use in factory automation, material handling, and pneumatic control systems. Explore more Pneumatic Cylinders and Festo actuators in the Hydraulic & Pneumatic Tools category. Browse the full range of Festo precision automation solutions on EnvMart.
