TE Connectivity Mini-Universal MATE-N-LOK Series Right Angle Through Hole PCB Header, 4 Contacts, 4.14 mm Pitch 1-770968-0

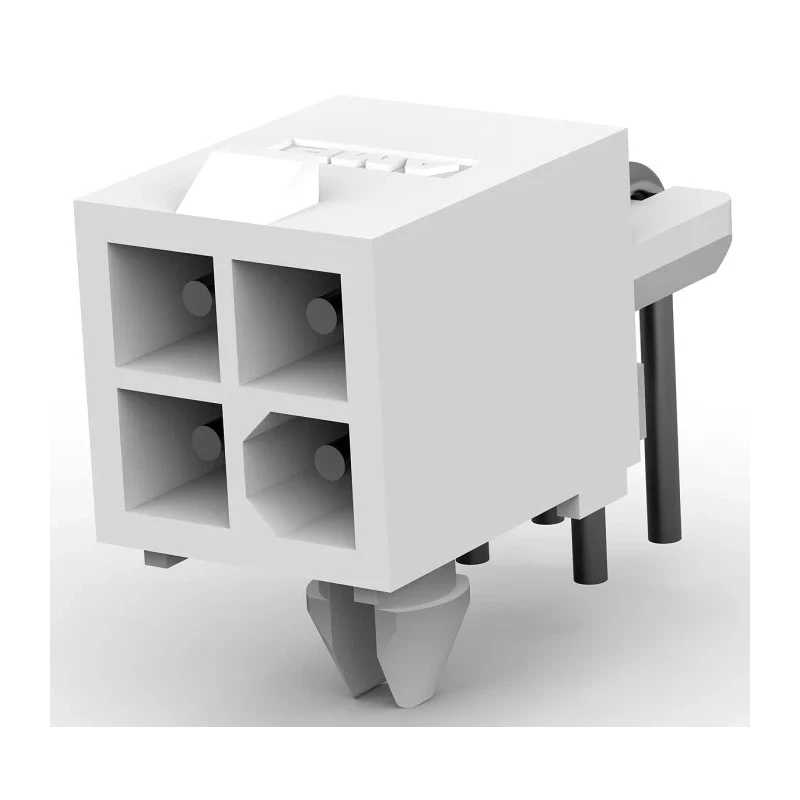

TE Connectivity 1-770968-0 Mini-Universal MATE-N-LOK Series right angle PCB header is engineered for wire-to-board applications demanding secure connections, high performance, and robust construction. With a 4-contact header and a 4.14 mm pitch, this connector is suitable for use in complex electronic assemblies where precise and reliable signal or power transmission is essential.

Featuring a right angle orientation, this PCB header allows for efficient layout within confined spaces and supports streamlined cable routing. The shrouded design includes a positive locking latch mechanism, ensuring secure mating with compatible plug housings and preventing accidental disconnection during operation.

Constructed from durable UL94V-0 nylon, the housing delivers enhanced electrical insulation and resistance to elevated temperatures, with an operating range from -55°C to 105°C. Tin-plated brass contacts provide excellent conductivity and stability, supporting a maximum current rating of 9.5A and a voltage up to 600V. Each tail pin measures 3.69 mm in length, optimizing PCB retention and solderability.

The header supports two rows for multicircuit integration and allows for solder termination, making it suitable for assembly lines and production environments. Board locks are incorporated for secure PCB retention, and the connector system is wire-to-board, catering to industrial, commercial, and manufacturing electronics.

Applications include signal and power interconnects in industrial controls, instrumentation, automation systems, consumer electronics, and other PCB assemblies where robust, reliable wire-to-board connectivity is required. The system is compatible with Mini-Universal MATE-N-LOK plug housings, expanding versatility across design requirements.

This PCB header features a right angle orientation for efficient wire-to-board connections. Designed for use with the Mini-Universal MATE-N-LOK series, offering secure mating with plug housings. Accommodates four contacts with a pitch of 4.14 mm for precise installations.

Housings are made of UL94V-0 nylon, providing robust heat and electrical resistance. Rated for a maximum voltage of 600V and current of 9.5A to meet demanding circuitry requirements. The shrouded header design ensures reliable locking and protection of contacts.

Through-hole mount and solder termination enable strong retention and ease of assembly. Tin-plated brass contacts ensure good conductivity and corrosion resistance.

This header is ideally suited for PCB connector requirements in industrial, laboratory, instrumentation, and commercial projects where reliability and secure wire-to-board interfaces are critical. Discover more TE Connectivity PCB Headers and explore the Mini-Universal MATE-N-LOK connector series in the Electronics & Electricals category at EnvMart.
