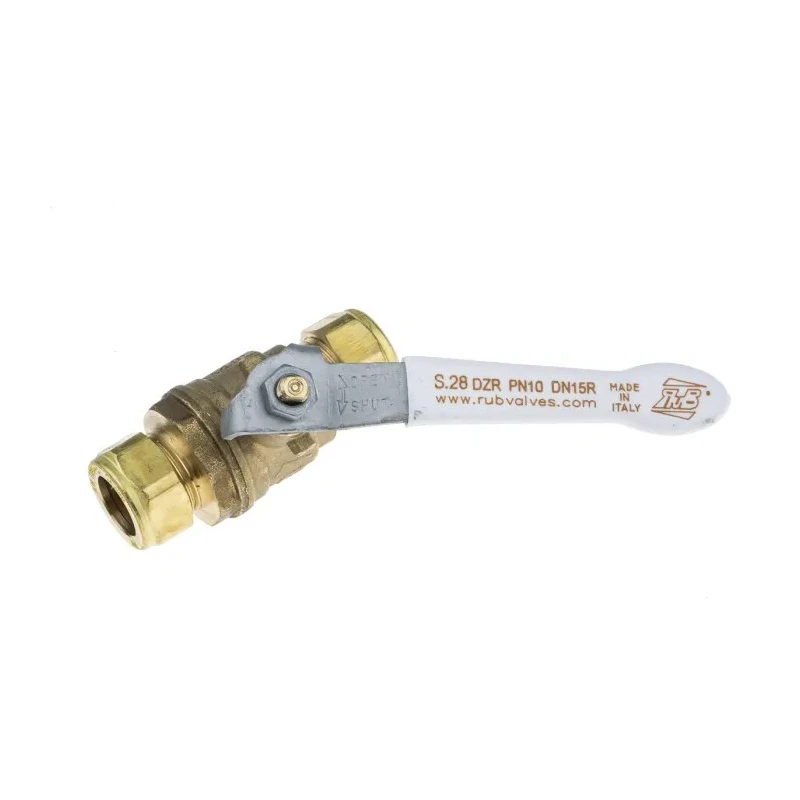

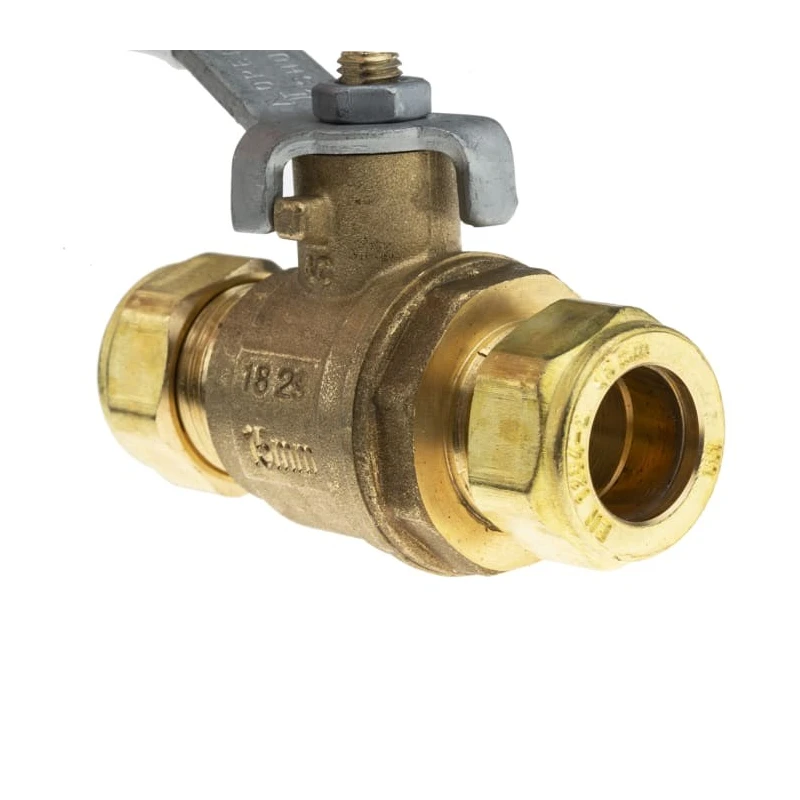

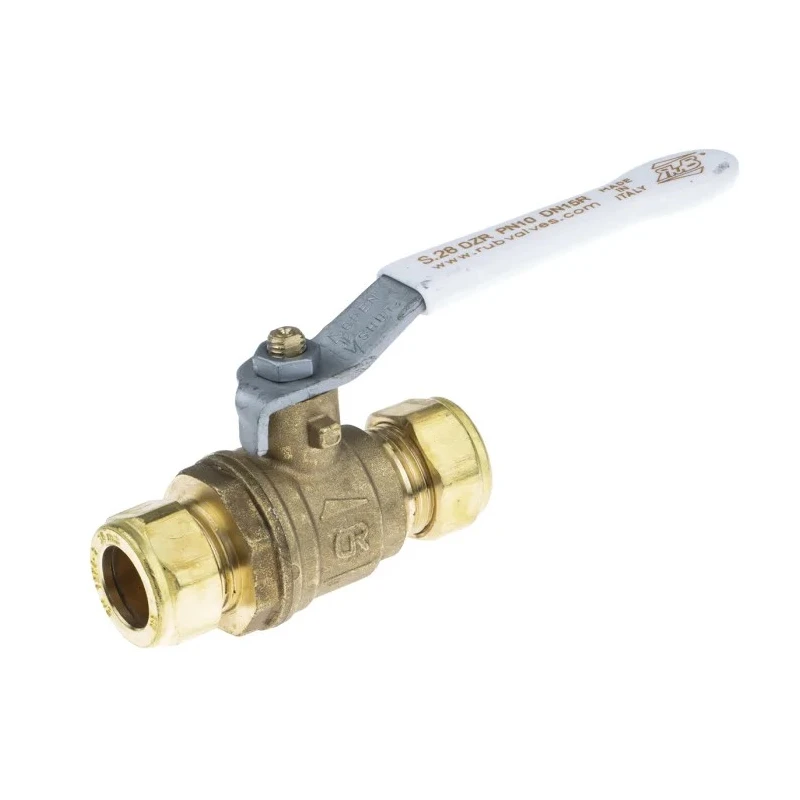

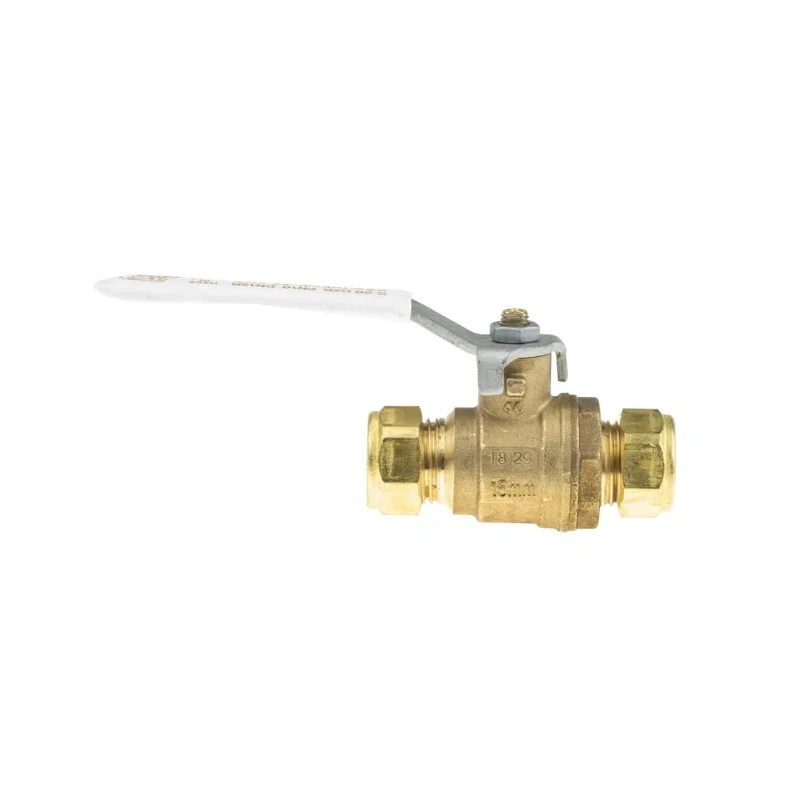

RS PRO Brass Compression Ball Valve 2-Way, Compression Fittings, 15 mm, 16 Bar, Dezincification-Resistant, Lever 486-293

RS PRO 486-293 Brass Compression Ball Valve is a high-performance manual shut-off valve designed for industrial, HVAC, plumbing, water treatment, and commercial applications. This valve features a dezincification-resistant (DZR) brass body, providing outstanding corrosion resistance and long-term reliability, especially in environments with hard water or water with high acidity or alkalinity.

Equipped with compression fittings on both the inlet and outlet ports, each sized at 15 mm, the valve enables quick installation and ensures a secure, leak-proof connection. Its lever handle, coated with polyvinyl chloride for better grip and durability, allows direct visual indication of the valve's open/closed status and the flow direction. The quarter-turn manual operation simplifies shut-off and control tasks, making it ideal for use in various fluid handling systems.

The RS PRO ball valve utilizes a dual sealing system, enabling safe operation in both flow directions. The internal chrome-plated brass ball guarantees smooth movement, enhances lifespan, and ensures the shut-off is reliable. Travel stops integrated into the body minimize stress at the stem, contributing further to operational safety.

This valve is rated for a maximum operating pressure of 16 bar and operates within a wide temperature range from -20°C to +120°C. It is versatile and can handle water, air, steam, compatible chemicals, and gases. The system requires no regular maintenance due to its robust internal design with no metal-to-metal moving parts.

Typical installations include domestic water services, heating and air-conditioning plants, compressed air systems, and liquid flow control in industrial and commercial settings. The DZR brass construction ensures exceptional durability for long-term use. Compliance with ISO 6509 and other relevant international standards further underscores its quality and suitability for demanding environments.

Constructed from DZR brass for dezincification resistance. Manual lever handle made from PVC-coated steel for improved ergonomics. Compression fittings for both inlet and outlet, 15 mm. Quarter-turn operation with clear visual indication of position.

No maintenance required due to durable chrome-plated ball and non-metallic seals. Rated for 16 bar working pressure and an operating temperature from -20°C to +120°C. Typical industrial and commercial applications include water, air, heating, and liquid flow systems.

Complies with ISO 6509 and other international approvals for reliability. Discover more RS PRO valves and fittings in the Ball Valves category at EnvMart to meet your fluid control needs with proven industrial quality.
