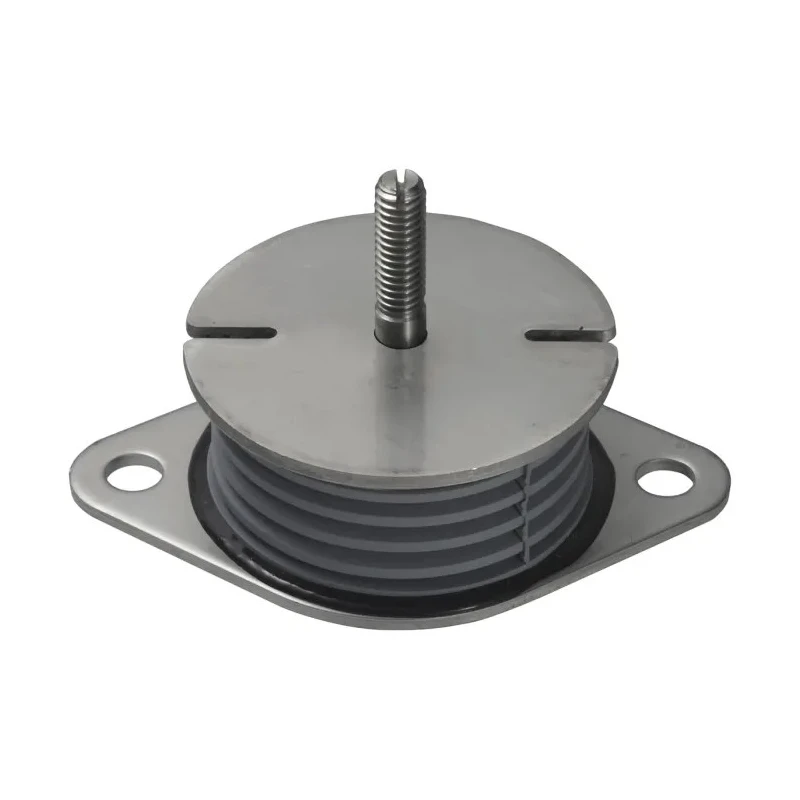

Taica Cylindrical Anti-Vibration Mount, Compression, M10 Thread, 10mm Bore, 76mm OD, 64mm Height Silicone SF-50

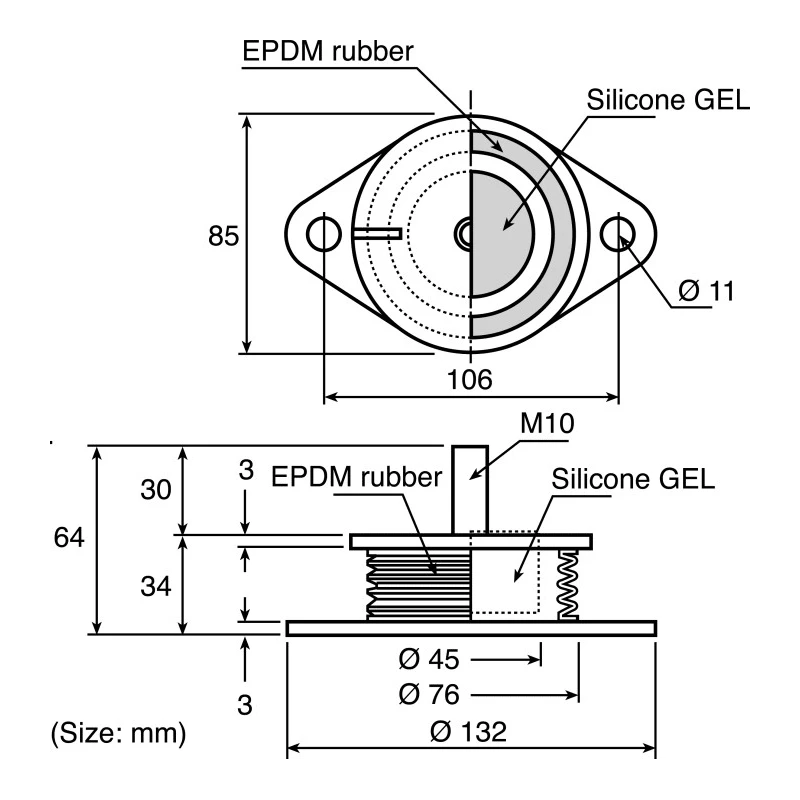

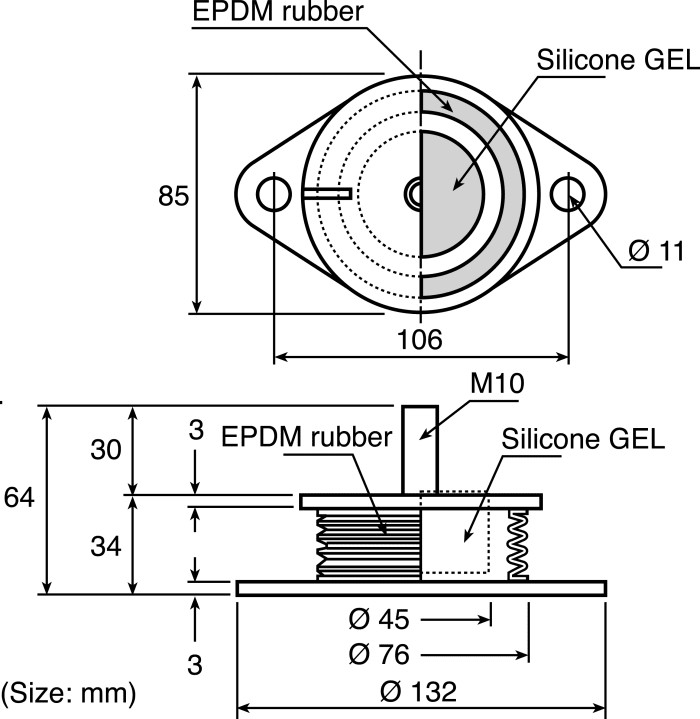

The Taica SF-50 Cylindrical Anti-Vibration Mount is a precision-engineered compression mount built to minimize vibration and noise across a wide range of machinery and sensitive equipment. Designed with a robust silicone body in a cylindrical form factor, it is distinguished by its 10mm bore, M10 thread, 76mm outside diameter, and 64mm overall height. This configuration allows seamless installation in mounting setups that require effective dynamic load isolation and mechanical stability.

Engineered for both indoor and outdoor use, the SF-50 features a durable silicone formulation combined with EPDM rubber wrapping (as part of the heavy-duty SF-30 and SF-50 designs) to deliver superior resistance to environmental factors, including temperature swings from -20°C to 90°C. The silicone elastomer efficiently dampens vibrations to a lower frequency than conventional rubber or neoprene alternatives and offers exceptional shock absorption benefits. The top stud and base mounting system ensure secure, reliable fixation, while the cylindrical geometry optimizes load distribution and vibration suppression.

This anti-vibration mount is especially suitable for applications where sensitive operations demand effective vibration control, such as with vacuum pumps, laboratory precision instruments, scientific measuring devices, and on-board computing systems. The robust build tolerates subject loads between 5 kg and 50 kg within the SF series, ensuring protection of valuable equipment in industrial, laboratory, and commercial installations. The strong bond established between metal components and silicone extends longevity, and the design excels in environments where moisture or outdoor exposure is expected.

Insulator mounts in the SF-2 to SF-50 range are constructed for compression-only use and incorporate a plate at the base for stability. While SF-2, SF-5, and SF-10 utilize stainless steel bottom plates (SUS variants), the SF-50's main performance advantage is centered on its vibration attenuation and heavy load capacity. Users are cautioned that these units are not intended for uneven, angular, tensile, or shearing loads. A single item is packed per order, suitable for direct integration into existing machine mounts, HVAC systems, or measurement equipment.

Typical applications are found in industrial plant installations, laboratory benches, high-precision manufacturing cells, water treatment facilities, and construction environments where vibration isolation is critical. The grey-colored, cylindrical design offers unobtrusive integration into most machinery. Industrial users benefit from the mount’s ability to protect sensitive electronics and instrumentation from harmful vibration and prolong equipment service life.
