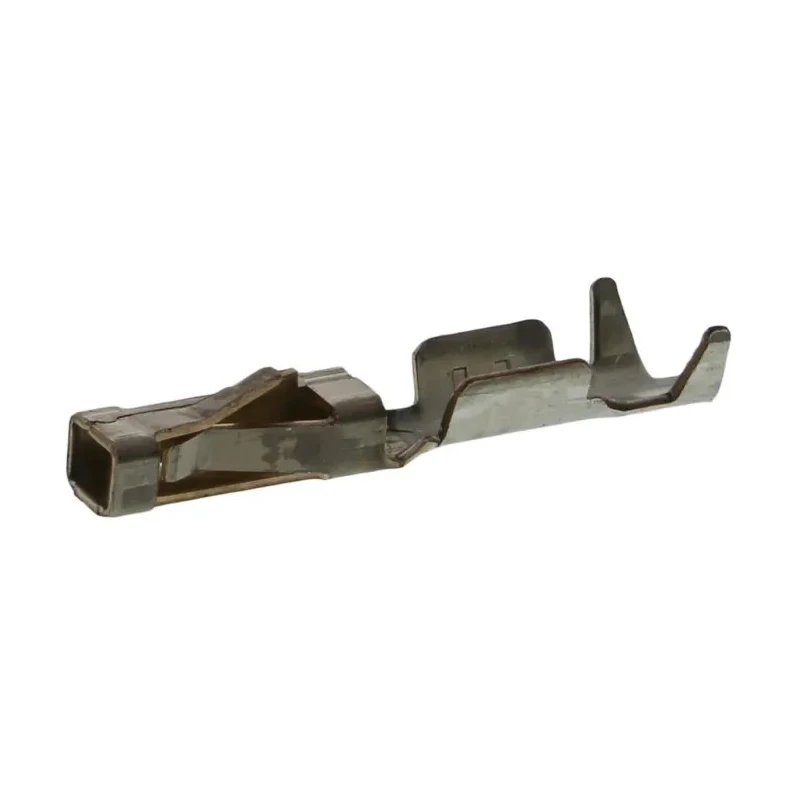

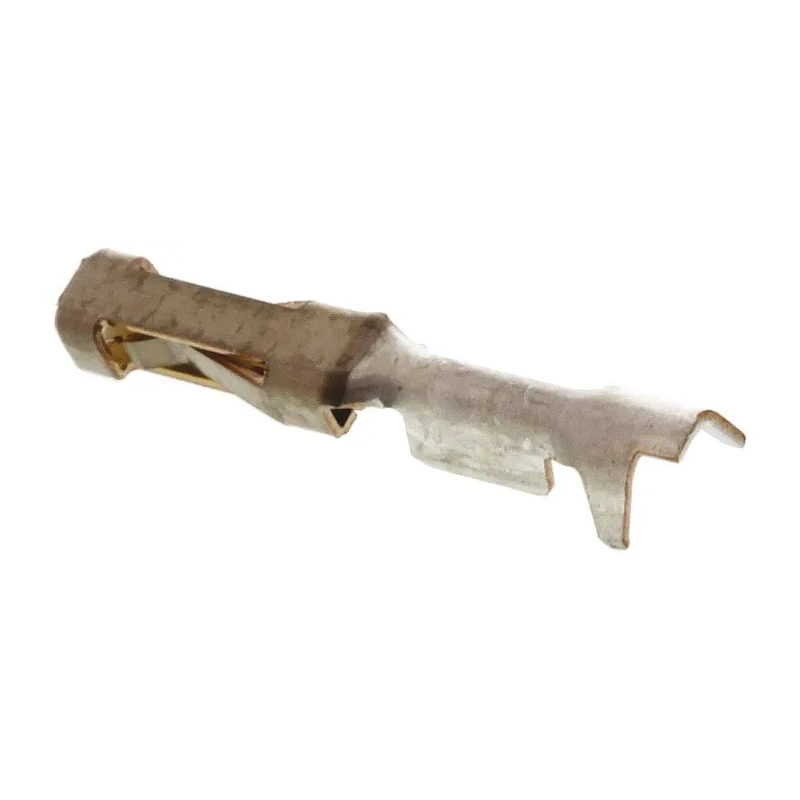

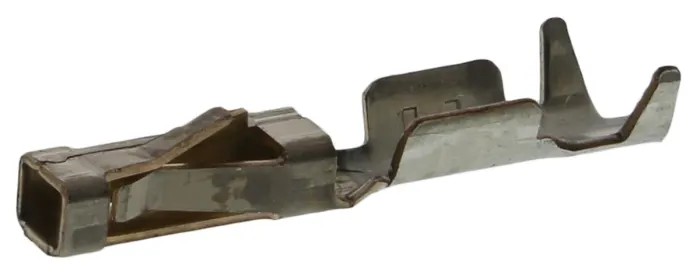

TE Connectivity AMPMODU Short Point Series Female Crimp Terminal 26 - 22 AWG, Gold Plated, 3A, 1-104480-6
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 11.68mm |
| Gender | Female |
| Contact Material | Copper Alloy |
| Series | AMPMODU Short Point |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| For Use With | AMPMODU Short Point and AMPMODU MTE Connector Housings |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.1mm² |
| Maximum Wire Size mm² | 0.4mm² |
| Minimum Wire Size AWG | 26AWG |
| Maximum Wire Size AWG | 22AWG |
| Maximum Contact Resistance | 12mΩ |
Key Features
- Designed for use with AMPMODU Short Point and AMPMODU MTE connector housings.
- Supports minimum wire size of 26 AWG (0.1 mm²) and maximum wire size of 22 AWG (0.4 mm²).
- Gold plated copper alloy contact ensures reliable conductivity and corrosion resistance.
- Rated for a maximum current of 3A per contact and maximum contact resistance of 12 mΩ.
- Snap-in locking lance feature enables secure mounting within connector housings.
- Operates in ambient temperature ranges from -65°C to 105°C.
- Crimp termination guarantees strong and maintenance-friendly installation.
- Applicable for PCB connectors and wire housing assembly in electronic devices.
Product Description
TE Connectivity AMPMODU Short Point Series Female Crimp Terminal (model 1-104480-6) is a high-precision contact component for PCB connectors and wire housings, specifically engineered to deliver reliable performance in demanding electronic applications.
This terminal is part of the renowned AMPMODU Short Point Series, featuring a female crimp snap-in receptacle contact designed to mate with 0.64 mm square or round posts measuring from 4.29 mm to 6.58 mm in length. The contact is made from copper alloy and plated in gold, maximizing conductivity and minimizing contact resistance (maximum 12 mΩ) while offering strong corrosion mitigation even in adverse environments.
The terminal supports a wire range from 26 AWG (0.1 mm²) up to 22 AWG (0.4 mm²), accommodating a broad array of wire sizes commonly used in board interconnections, signal transmission, and modular interface applications. Its crimp termination style ensures robust mechanical retention and electrical integrity with every installation.
Integrated locking lance and snap-in features guarantee secure insertion into AMPMODU MTE connector housings, forming a complete wire-crimp system for production or repair scenarios. The terminal is rated for 3A maximum current, and a wire insulation diameter up to 1.52 mm is supported, allowing compatibility with typical insulation thicknesses and facilitating assembly in automated equipment.
The product’s operating range extends from -65°C to 105°C ambient, making it suitable for environments characterized by frequent temperature fluctuations, such as industrial, laboratory, communications, and critical commercial electronics.
With a length of 11.68 mm and compliance with established TE Connectivity standards, this contact is engineered for efficient insertion and durability throughout product lifecycles.
Applications include PCB connector fabrication, wire housing assembly, repair and replacement of modular contacts, instrumentation wiring, and custom board setups for manufacturing, laboratory, and commercial electronics.
Designed for use in industrial, laboratory, and high-reliability commercial electronic connectors. Supports multi-pin PCB junctions and quick maintenance for harness assembly. Reliable choice for manufacturers, engineers, and service technicians.
Explore related products in Crimp Terminals and PCB Connectors across TE Connectivity’s AMPMODU Short Point Series on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This female crimp terminal is rated for a maximum current of 3A per contact.
It supports a minimum wire size of 26 AWG (0.1 mm²) and a maximum wire size of 22 AWG (0.4 mm²).
The operating temperature range extends from -65°C to 105°C, making it suitable for various environments.
The contact is made from copper alloy and is gold plated to enhance conductivity and corrosion resistance.
The length of this terminal is 11.68 mm.
It uses a crimp termination style, which ensures strong mechanical retention and electrical integrity.
This terminal is designed for use with AMPMODU Short Point and AMPMODU MTE connector housings.
The maximum contact resistance is rated at 12 mΩ.
Yes, it includes a snap-in locking lance feature that enables secure mounting within connector housings.
This terminal is a female crimp terminal.
The country of origin for this crimp terminal is India.
