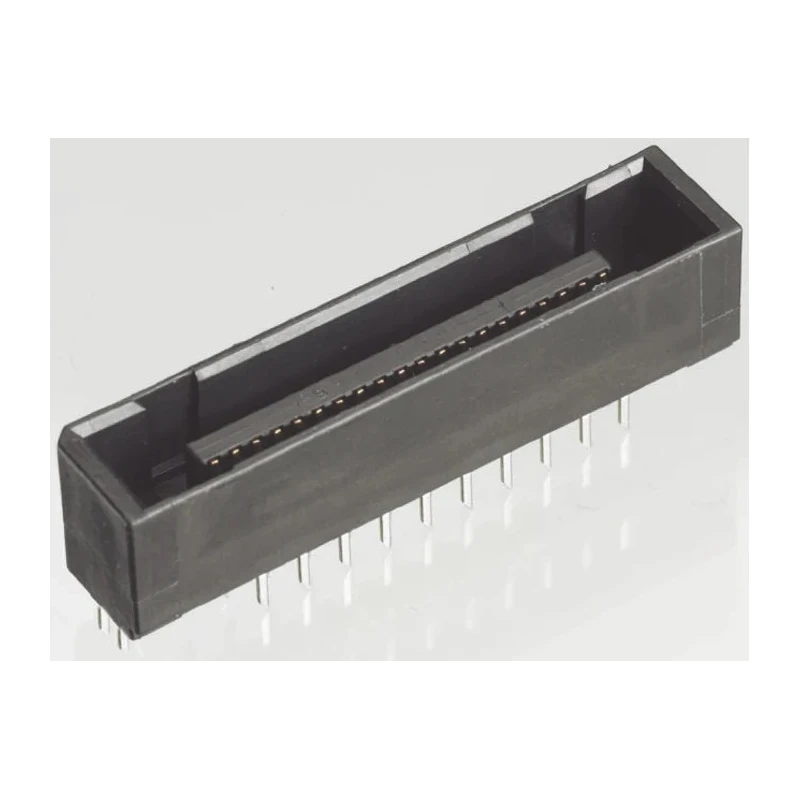

JAE Straight Through Hole PCB Header, 120 Contacts, 1.27 mm Pitch, 2 Row, Shrouded TX25

The JAE TX25-120P-6ST-H1E Straight Through Hole PCB Header is a high-reliability interconnect solution designed for dense electronic assemblies where stable board-to-board connections are required. This connector is part of the JAE TX25 series, known for its precise alignment, robust mechanical design, and consistent electrical performance.

Equipped with 120 contact positions in a tightly spaced dual-row (2-row) configuration, this header utilizes a compact 1.27 mm pitch, making it ideal for high-density PCBs used in advanced instrumentation, industrial control, and communication equipment. The straight-through-hole style is preferred for secure, vibration-resistant mounting onto standard PCBs.

The header body is fabricated from Polybutylene Terephthalate, a high-performance engineering plastic offering excellent dimensional stability, mechanical strength, and insulation. Gold-plated copper alloy contacts provide superior conductivity, optimal signal integrity, and heightened resistance to corrosion and wear.

Its shrouded design features polarizing keys, ensuring proper mating orientation and reducing the likelihood of mismatched connections. These characteristics, coupled with non-pin type contacts, absorb mating/unmating twisting forces and ensure strong retention, which is essential in rack and panel or modular system designs.

This connector operates at up to 1 A current and is rated for a maximum voltage of 500 V. It accommodates an operating temperature range from -40°C to 80°C, making it suitable for rigorous industrial, laboratory, and electronic manufacturing environments.

Applications for the JAE TX25-120P-6ST-H1E include board stacking, control modules, communication equipment backplanes, test and measurement instruments, and high-reliability industrial process interfaces. Its compact footprint allows designers to optimize PCB space without sacrificing electrical or mechanical integrity.

Key features include through-hole solder termination for mechanical robustness and ease of assembly. The click-action design facilitates clear tactile confirmation of secure mating, streamlining system assembly and maintenance.
