JAE Straight Through Hole PCB Header 100 Contacts 2.54mm Pitch 2 Row Shrouded 500V TX25

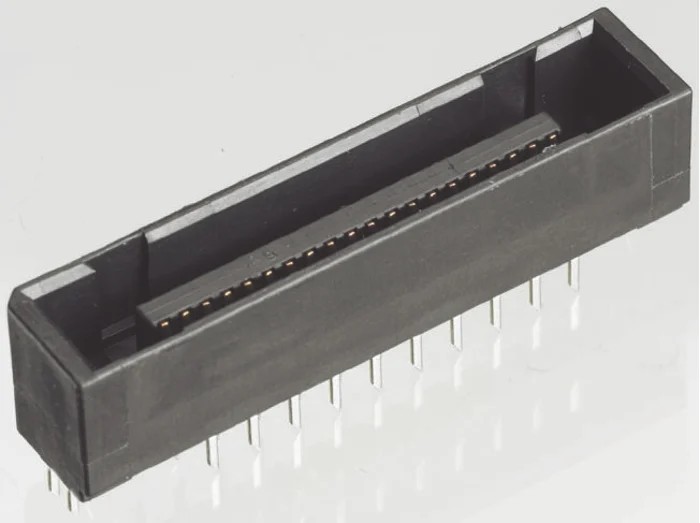

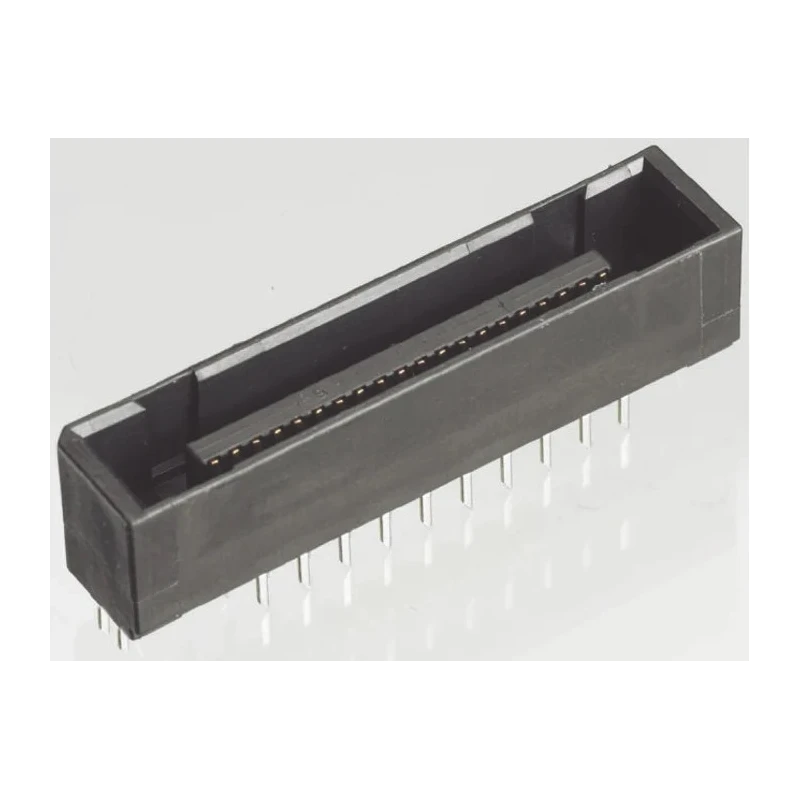

The JAE TX25-100P-6ST-H1E is a straight through hole PCB header featuring 100 contacts arranged in two rows with a 2.54 mm pitch. Designed for high-density electronic circuit interfacing, this header is commonly utilized in industrial, commercial, and manufacturing PCB assemblies where reliability is critical.

The shrouded housing protects contacts from accidental damage, ensures proper mating orientation, and prevents misalignment. Molded from polybutylene terephthalate, the housing provides excellent mechanical strength, high temperature tolerance, and enduring performance under vibration or twisting stress. Polarizing keys integrated in the housing further safeguard rack and panel installation integrity.

Each contact is manufactured from copper alloy and finished with gold plating, maximizing conductivity and minimizing contact resistance. The header is rated for up to 1A of current per contact and a maximum working voltage of 500V, making it suitable for both signal and power distribution within electronic devices.

Its board-to-board connector system enables seamless module integration in complex electronic assemblies. The through-hole mounting style supports stable soldering and mechanical retention on PCBs. Operating reliably from -40°C to 80°C, the TX25-100P-6ST-H1E adapts to harsh industrial environments including automation, laboratory instrumentation, control panels, and manufacturing equipment.

Additional features include robust solder termination, stable electrical engagement with long mating length, and a click-action design for positive mating feedback. Ideal for applications where rack, panel, or modular subassembly connectors are required to withstand repeated mating cycles and secure mechanical connection.

100 contact positions for extensive circuit routing requirements. 2.54 mm pitch for compatibility with standard PCB layouts and industrial modules. Shrouded, polarized housing for installation safety and reliable alignment.

Polybutylene terephthalate construction resists mechanical stress and thermal cycling. Gold-plated copper alloy contacts ensure efficient and stable performance over time. Wide temperature range for demanding environments.

Solder termination delivers robust PCB attachment and long-lasting connectivity. Ideal for use in industrial electronics, manufacturing controls, and laboratory modules. Board-to-board connector system supports scalable device interconnection.

Reliable for rack and panel interface applications demanding high signal integrity. Explore more PCB Headers and electronic connector solutions in the Electronics Components category on EnvMart for industrial, laboratory, and manufacturing requirements.
