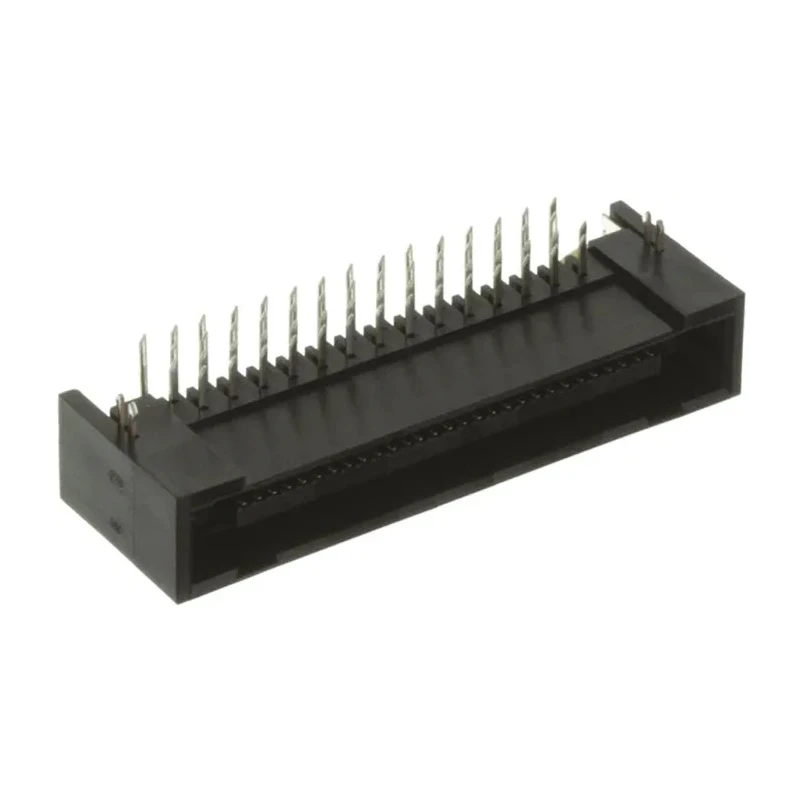

JAE TX25 Series Right Angle Through Hole PCB Header, 30 Contacts, 1.27 mm Pitch, 2 Row, Shrouded

The JAE TX25-30P-LT-H1E is a member of the TX25 series, specifically engineered as a high-density right angle through hole PCB header. It offers 30 gold-plated copper alloy contacts, arranged in two compact rows with a fine pitch of 1.27 mm, ideal for board-to-board and rack/panel connection environments.

This connector features a robust polybutylene terephthalate (PBT) housing that incorporates polarizing keys, ensuring mating accuracy and structural stability. The shrouded configuration is critical in protecting contacts from external mechanical stresses while supporting consistent electrical engagement. Its termination is through-hole, intended for soldering onto PCBs in volume production processes.

Electrical characteristics include a current rating of 1A and a voltage withstand of up to 500V, making the connector suitable for various industrial, instrumentation, and electronic applications where secure signal or power transmission is required. Operating temperature spans from -40°C to 80°C, ensuring performance in harsh operating and ambient conditions.

The right angle orientation is particularly advantageous for space-constrained designs, as it allows horizontal PCB layouts and efficient integration within enclosure systems. The connector’s gold-plated contacts help maintain a stable connection over repeated coupling and uncoupling cycles, while the solder termination provides a reliable mechanical and electrical bond to the circuit board.

Applications include industrial automation, laboratory equipment, communications, control systems, and commercial electronic assemblies. The TX25-30P-LT-H1E's design assures reliable connection even under conditions involving twisting forces and vibration, while the stable housing and click action ensure a secure mating process.

Board-to-board connectivity with sturdy solder through-hole mount. Reliable 30-contact design with two rows and 1.27 mm pitch for high-density circuits. Shrouded housing enhances protection and polarizing alignment. Wide operating temperature capability for demanding industrial environments.

Suitable for rack, panel, laboratory, and commercial electronics. Supports applications requiring up to 1A, 500V, and robust mechanical stability. Easy integration in production, recommended for automated insertion machinery.
