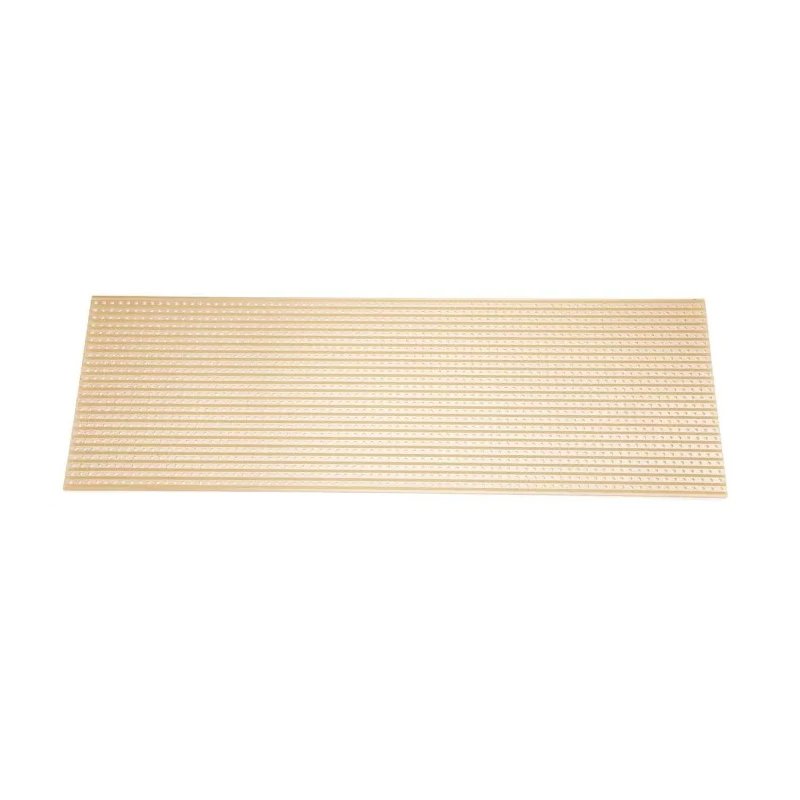

Vero Technologies Stripboard Synthetic Resin Bonded Paper 291.3 mm x 95.4 mm FR1 Single Sided Copper 01-3938

Vero Technologies 01-3938 Stripboard is an essential tool for electronic designers and engineers, offering a robust solution for prototyping and circuit development. With dimensions of 291.3 mm in length and 95.4 mm in width, this stripboard is constructed from synthetic resin bonded paper (SRBP), ensuring durability and insulation performance. The FR1 material grade makes it suitable for a wide range of electronic applications, including laboratory, industrial, and educational use.

This stripboard features a single side of copper tracks with a thickness of 35 μm, providing excellent conductivity for soldering electronic components. The hole diameter is 1.4 mm, and the layout is organized in a 24 x 76 grid, allowing flexible circuit design. With a board thickness of 1.6 mm, users can expect mechanical stability and ease of handling during assembly.

The copper tracks are securely bonded to the SRBP material and pierced to accept terminal pins, facilitating straightforward soldering and assembly. Unlike breadboards, stripboards offer a permanent platform for circuits where soldering is required. The board design allows it to be cut into smaller sizes for custom applications and efficient material usage.

Applications include prototyping, development of electronic circuits, testing of new designs in industrial, laboratory, and educational environments, and custom electronics assembly.

Key features such as reliable FR1 insulation, flexible layout, and easy soldering capability make it an ideal choice for engineers working on new circuit designs. Designed for electronic prototyping and circuit development.

Made of synthetic resin bonded paper with copper tracks for easy soldering. Features 1 side with 35 μm copper thickness and hole diameter of 1.4 mm. Board layout provides a 24 x 76 hole grid for versatile circuit configurations.

FR1 material grade offers reliable insulation performance. Board thickness is 1.6 mm for mechanical stability. Stripboard can be cut into smaller boards as needed. Tracks are bonded to the board and pierced for terminal pin acceptance.
